AK HC2

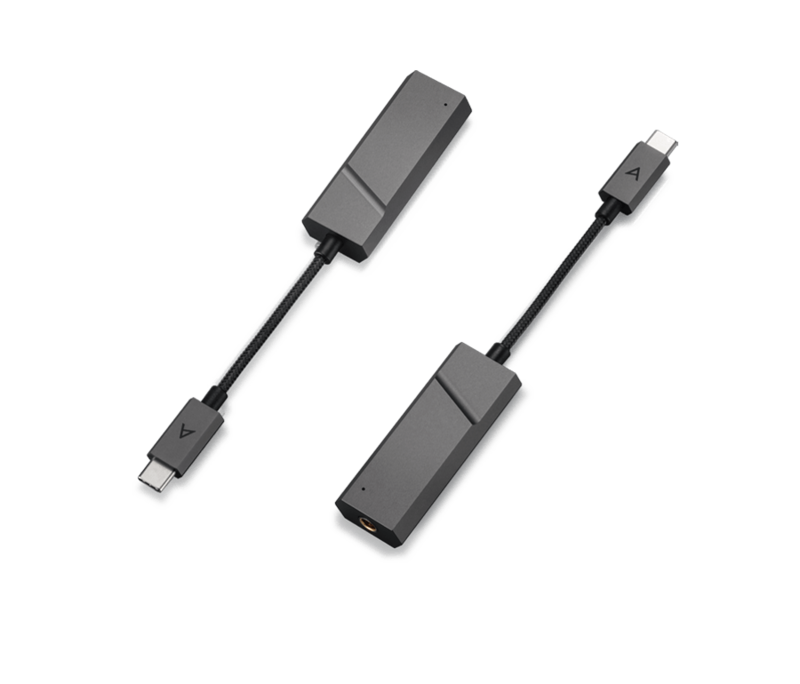

The AK HC2 is a compact USB-C dual DAC cable with a 4.4mm balanced headphone output. It lets phones, tablets, Windows PCs and Macs drive wired Hi-Fi headphones and earphones, and suits listeners who have lost the headphone jack on their devices.
- Dual Cirrus Logic CS43198 DAC
- PCM up to 32-bit/384kHz, native DSD256
- 4.4mm balanced output, 4Vrms (no load)
- USB-C plug and play, powered by the host device
- Included USB-C to Lightning adapter for iOS
- Roon Tested; optional Android volume app
Photos
6Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un AK HC2, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

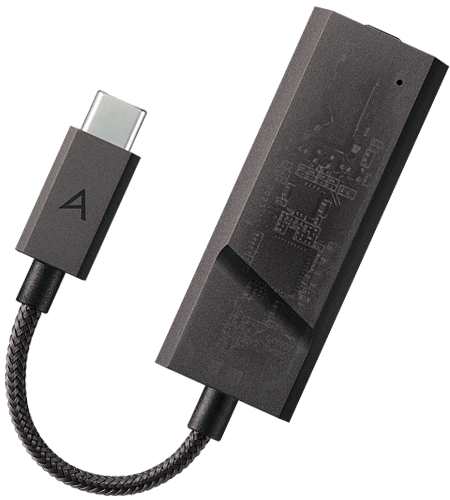

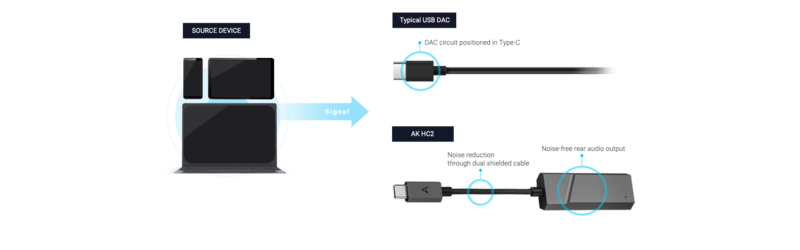

The HC2 is a short USB-C cable with a built-in DAC stage. It uses two Cirrus Logic CS43198 DACs and decodes PCM up to 32-bit/384kHz and native DSD up to DSD256. The audio circuit sits at the output end of the cable instead of in the USB plug. Digital signal travels through a dual shielded cable first and is converted to analog afterwards, which is meant to keep noise down.

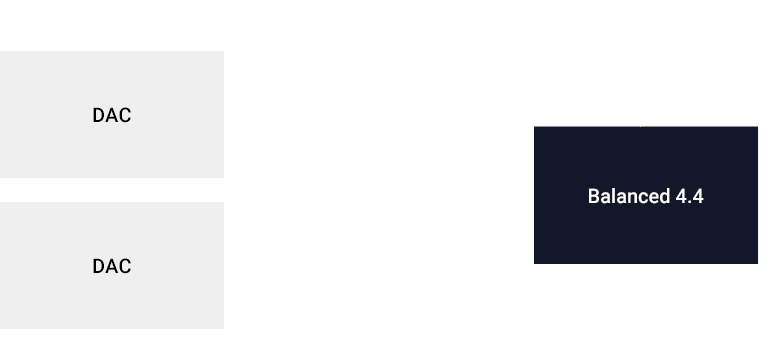

Output is through a 4.4mm balanced jack, rated at 4Vrms with no load and 1.5 ohm output impedance. Both TRS and TRRS 4.4mm headphones can be used, but the in-line controls and microphone of TRRS models are not supported. The body is a hexagonal aluminum prism in dark silver, and the cable is tin-coated copper wrapped in aluminum film.
It is plug and play with USB-C devices and takes its power from the host, so it needs no charging. iOS devices connect with the included USB-C to Lightning adapter. Windows installs the driver automatically, and a separate USB DAC driver is needed for high-resolution files. An optional Android app gives finer volume control. The unit is Roon Tested.
Vidéo
Spécifications
- Marque
- Astell&Kern
- Modèle
- AK HC2
- Catégorie
- Accessoires › Câbles
Audio
- DAC
- CS43198 Dual
- Sample rate (PCM)
- Up to 32bit/384kHz
- Sample rate (DSD, native)
- DSD64 (2.8MHz), DSD128 (5.6MHz), DSD256 (11.2MHz), Stereo
- Frequency response
- ±0.011dB (20Hz~20kHz), ±0.145dB (20Hz~70kHz), Balanced
- Signal to noise ratio
- 122dB @ 1kHz, Balanced
- THD+N
- 0.0004% @ 1kHz, Balanced
- IMD SMPTE
- 0.0003%, 800Hz 10kHz (4:1), Balanced
Inputs
- Input
- USB Type-C (Windows 10/11, Android, iOS smartphone and tablet, macOS)
Outputs
- Headphone output
- 4.4mm balanced
- Output impedance
- 1.5 ohm (4.4mm)
- Output power or voltage
- 4Vrms (no load)
Connectivity
- Compatible systems
- Android, iOS, Windows 10/11, macOS
- iOS connection
- Included USB-C to Lightning adapter
- Roon
- Roon Tested
Physical
- Body material
- Aluminum
- Body color
- Dark Silver
- Dimensions, USB plug
- 12 x 21 x 6.5mm
- Dimensions, 4.4mm headphone end
- 22.8 x 60 x 12.1mm
- Weight
- About 29g
Power
- Power source
- Powered by the connected playback device
Software
- Android app
- Optional app for detailed volume control
In the box
- Adapter
- USB-C to Lightning adapter
