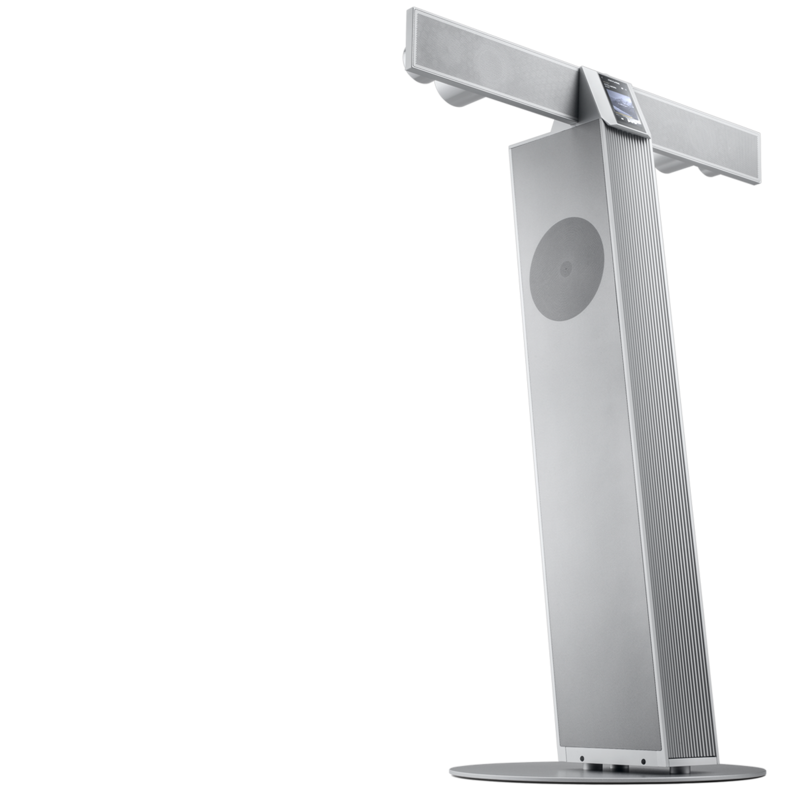

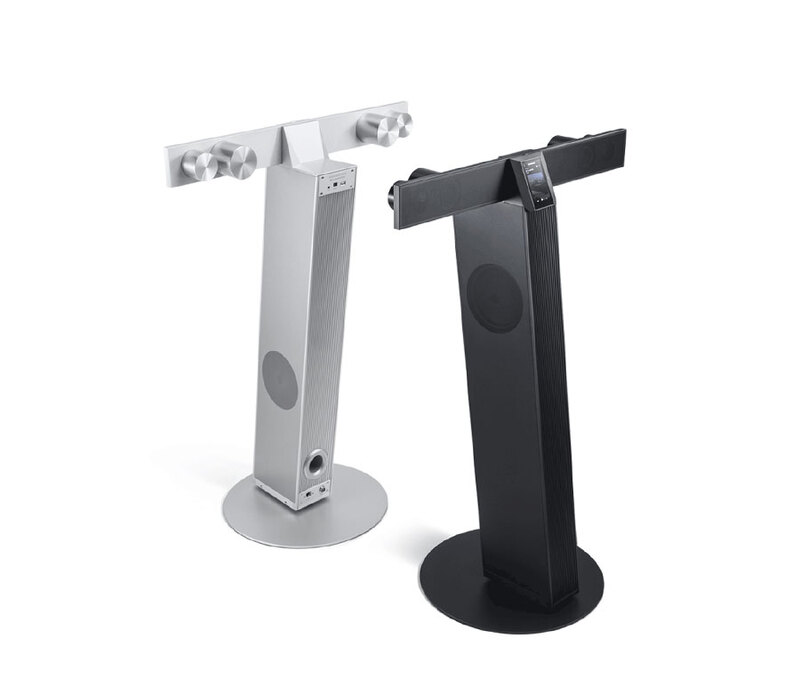

AK T1
The AK T1 is an all-in-one network sound system with a six-speaker 3-way active design, a built-in music player and a 4-inch touchscreen. It suits listeners who want wired, Wi-Fi, Bluetooth-style aptX wireless and DLNA playback from a single speaker unit.
- Six-speaker 3-way active system with 4th-order crossover
- Hybrid bi-amp: analog for tweeters, digital for mids and woofers
- 180W output (90W x2), 48Hz–22kHz range
- Dual Cirrus Logic CS4398 DAC; PCM to 192kHz, DSD64/DSD128
- Wi-Fi, Gigabit Ethernet, DLNA, aptX wireless, vTuner radio
- AUX, optical, USB-A host and microSD inputs
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un AK T1, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The AK T1 combines a music player, DAC, amplifier and speaker system in one aluminum-bodied unit. Two Cirrus Logic CS4398 DACs handle conversion, and playback covers common lossless and compressed formats, including DSD64 and DSD128 files and PCM up to 192kHz.

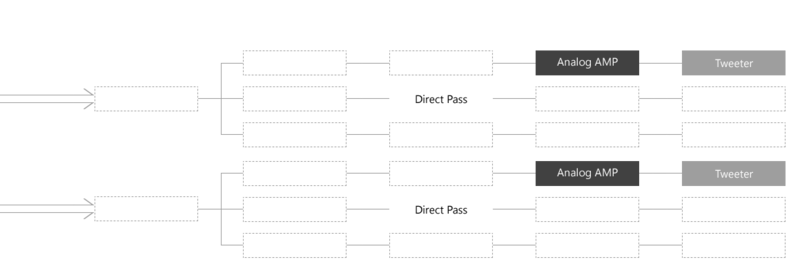

The speakers form a 3-way active system with two 0.75" tweeters, two 2.0" midrange drivers and two 6.5" woofers, split by a 4th-order crossover. A hybrid bi-amp design uses an analog amplifier for the tweeters and a digital amplifier for the midrange and woofers, with a total output of 180W (90W x2). A subsonic high-pass filter and the metal enclosure are used to keep bass tight and limit vibration.
Music can come from a NAS or an Astell&Kern player over Ethernet or Wi-Fi DLNA, from internet radio via vTuner, from aptX wireless audio, from USB or microSD storage, or from the AUX and optical inputs. A 4-inch touchscreen, touch-sensitive metal controls and the AK Connect app for iOS and Android handle control.
Vidéo
Spécifications
- Marque
- Astell&Kern
- Modèle
- AK T1
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- DAC
- Cirrus Logic CS4398 x2 (Dual DAC)
- Supported audio formats
- WAV, FLAC, WMA, MP3, OGG, APE (Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF
- Sample rate
- FLAC, WAV, ALAC, AIFF: 8~192kHz (8/16/24bits per sample) / DSD64 (1bit 2.8MHz) / DSD128 (1bit, 5.6MHz)
- Frequency range
- 48Hz ~ 22kHz
- Amplifier output
- 180W (L/R, 90W x2)
- Amplifier type
- Hybrid Amplifier (Analog for tweeter, Digital for midrange / woofer)
Speakers
- Speaker system
- 3 Way Multi Channel Active Speakers (4th CrossOver filter)
- Tweeter
- 0.75" x2
- Midrange
- 2.0" x2
- Woofer
- 6.5" x2
Inputs
- Audio inputs
- AUX x1, Optical x1
- USB
- USB type A (Host) x1
- Memory card slot
- microSD card slot x1
Connectivity
- Wi-Fi
- 802.11b/g/n 2.4GHz
- Ethernet
- 10/100/1,000Mbps
- Network protocol
- DLNA (UPnP)
- Internet radio & streaming
- vTuner
Software
- Control app
- AK Connect (iOS/Android)
Physical
- Display
- 4inch (101.6mm) 480 x 800 Touchscreen
- Body color
- Black, Silver
- Body material
- Aluminum
- Dimensions
- 27.5" (700 mm) [W] x 39.2" (998 mm) [H] x 15.9" (404 mm) [D]
- Weight
- 705.4 oz (20 kg)
