706 S3
A two-way stand-mount loudspeaker from the 700 Series S3 line, with a decoupled Carbon Dome tweeter and a 165 mm Continuum cone bass/midrange driver in a vented cabinet. It suits hi-fi listeners who want a stand-mount speaker able to fill larger rooms.
- 2-way vented-box stand-mount speaker, sold as a pair
- 25 mm decoupled Carbon Dome tweeter, breakup at 47 kHz
- 165 mm Continuum cone bass/midrange driver
- Frequency response 50 Hz - 28 kHz ±3 dB
- 88 dB sensitivity, 8 Ω nominal impedance
- Recommended amplifier power 30 W - 120 W into 8 Ω
Photos
7Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un 706 S3, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

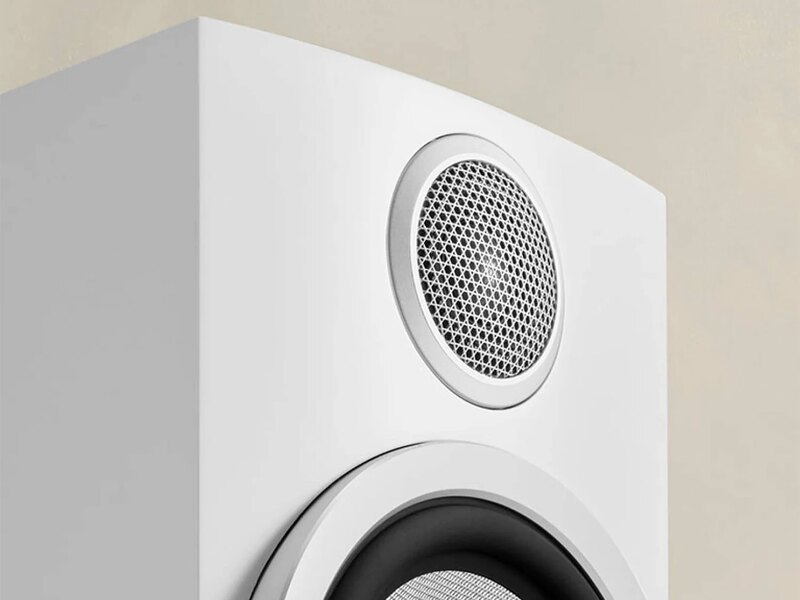

The 706 S3 is a passive two-way stand-mount speaker with a vented-box enclosure. A 25 mm decoupled Carbon Dome tweeter handles the highs, with its breakup threshold raised to 47 kHz compared with the aluminum double-dome tweeter it replaces. A 165 mm (6.5 in) Continuum cone covers bass and midrange, and its composite construction is intended to avoid abrupt changes in behavior that can colour the sound.
The cabinet has a curved baffle and individual drive unit pods, a design taken from the 800 Series Diamond to reduce cabinet coloration. Flowport tuning is used on the vented enclosure. Stated frequency response is 50 Hz to 28 kHz ±3 dB, with a nominal impedance of 8 Ω and a recommended amplifier power of 30 W to 120 W.
Connection is by speaker cable to an external amplifier or receiver; the maximum recommended cable impedance is 0.1 Ω. The speakers are sold as a pair, in Gloss Black, Satin White or Mocha, with Rosenut offered in APAC only. Stands are not included.
Vidéo
Spécifications
- Marque
- Bowers & Wilkins
- Modèle
- 706 S3
- Catégorie
- Hi-Fi et audio maison › Enceintes
Drivers
- Tweeter
- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
- Bass / midrange
- 1x ø165mm (6.5 in) Continuum cone bass / midrange
- Enclosure
- 2-way vented-box system
- Technical features
- Decoupled Carbon Dome tweeter, Continuum cone bass / midrange, Flowport
Audio
- Frequency range
- 45Hz and 33kHz
- Frequency response
- 50Hz - 28kHz ±3dB
- Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- Sensitivity
- 88dB spl (2.83Vrms, 1m)
- Nominal impedance
- 8Ω (minimum 3.7Ω)
Amplifier requirements
- Recommended amplifier power
- 30W - 120W into 8Ω on unclipped programme
- Max recommended cable impedance
- 0.1Ω
Physical
- Net weight
- 8.42kg (18.6 lb)
- Height
- 345 mm (13.6 in) cabinet only
- Width
- 192 mm (7.6 in) cabinet only
- Depth
- 297 mm (11.7 in) cabinet only; 334 mm (13.1 in) including grille and terminals
Finishes
- Cabinet finishes
- Gloss Black, Satin White, Mocha, Rosenut (APAC only)
- Grille finishes
- Black; Grey (Satin White only)
In the box
- Supplied as
- Pair of speakers
- Stands
- Not included
