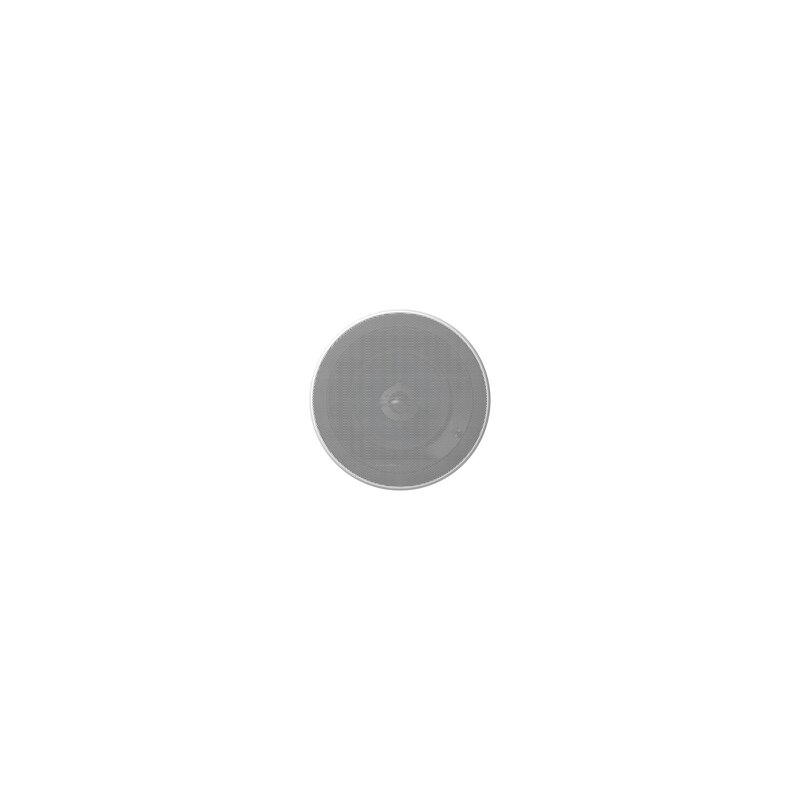

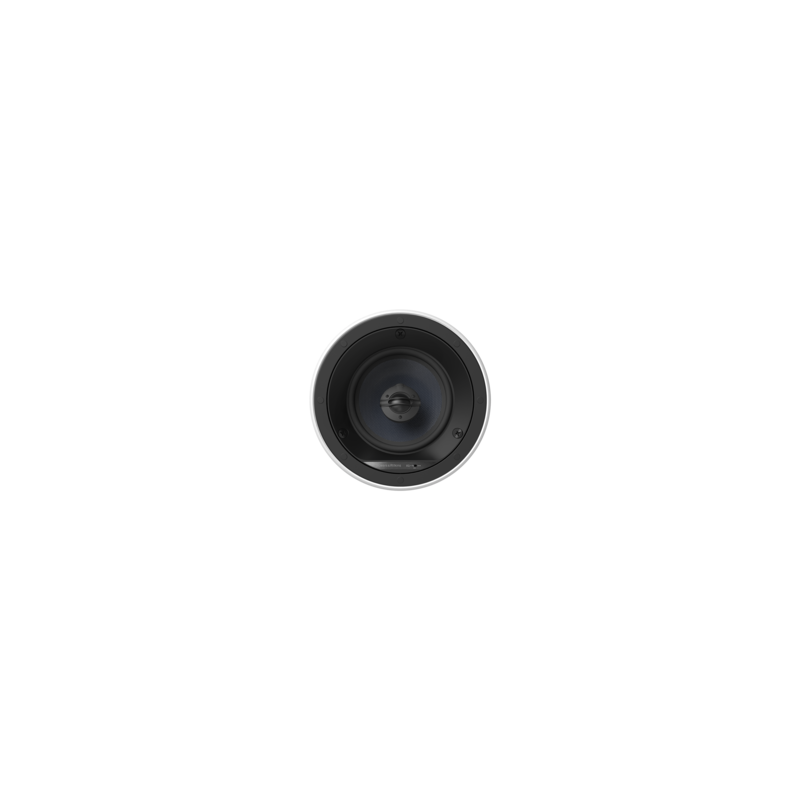

CCM663 RD
The CCM663 RD is a two-way in-ceiling speaker from the Performance Series, built with a reduced 92mm mounting depth so it fits into shallower ceiling cavities than the standard CCM663. It suits installers and home owners who need a Performance-series in-ceiling speaker for tight spaces.
- Reduced-depth in-ceiling speaker, 92mm mounting depth
- Two-way design with separate tweeter and bass/midrange driver
- 25mm (1in) Nautilus swirl loaded aluminium dome tweeter
- 150mm (6in) blue Aramid Fibre cone bass/midrange driver
- QuickDogs easy-fit frame, redesigned for shallower depth
- Available in white
Photos
5Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un CCM663 RD, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The CCM663 RD is a reduced-depth version of the CCM663 in-ceiling speaker. A shallower cone and a redesigned QuickDogs easy-fit frame bring the mounting depth down to 92mm, so it can be installed where the standard model would not fit, while keeping the same basic design as the CCM663.
It is a two-way design. High frequencies come from a 25mm (1in) aluminium dome tweeter with a Nautilus swirl-loaded design, and bass and midrange are handled by a 150mm (6in) blue Aramid Fibre cone driver.
The speaker is part of the Performance Series of in-wall and in-ceiling models and is offered in a white finish. A manual, info sheet and drawing are available for installation planning.
Vidéo
Spécifications
- Marque
- Bowers & Wilkins
- Modèle
- CCM663 RD
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Configuration
- Two-way in-ceiling speaker
- Tweeter
- 1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
- Bass/midrange driver
- 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange driver
- Drive units
- 2
Physical
- Mounting depth
- 92mm
- Mounting type
- In-ceiling
- Fitting system
- QuickDogs™ easy-fit frame
- Finish
- White
- Series
- Performance Series
- Version
- Reduced Depth (RD)
Documentation
- Manual
- Available
- Info sheet
- Available
- Drawing
- Available
