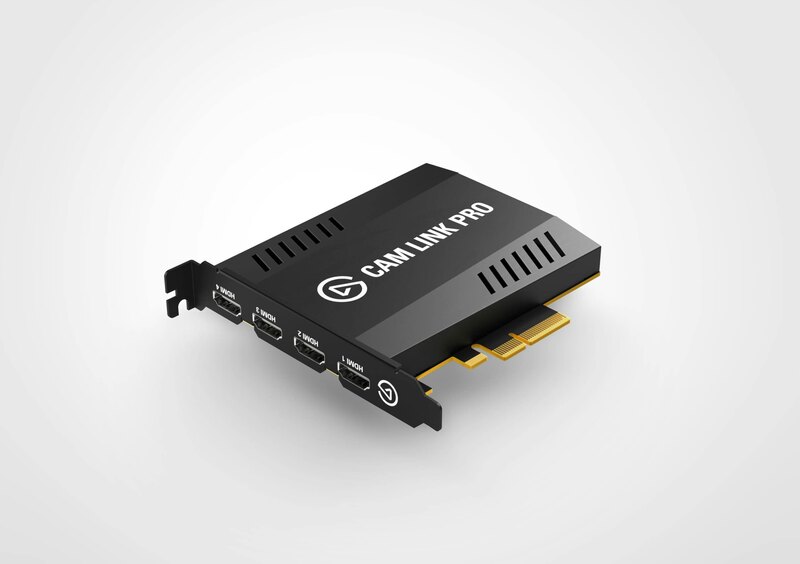

Cam Link Pro
Internal PCIe capture card for Windows desktop PCs that takes four clean HDMI inputs and presents each as a separate video device. Aimed at streamers, multicam producers and video-call users who want several cameras on one card.
- 4x HDMI inputs on one PCIe 2.0 x4 card
- Each input appears as a separate device in OBS, vMix, etc.
- Multiview: PiP, Side by Side, Triple, Quad layouts
- Up to 1080p60 or 4K30 capture
- Stream Deck integration for layout and camera switching
- Windows 10 (64-bit) or newer, desktop PC only
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Cam Link Pro, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
Cam Link Pro is a PCIe 2.0 x4 capture card that accepts up to four unencrypted HDMI sources, such as camcorders, DSLRs, action cams, phones, tablets, PCs and game consoles. Each input shows up as its own video device in OBS, vMix, Streamlabs or other software that supports standard video devices, so every feed can be positioned and resized independently. Embedded HDMI audio is captured as well.
A built-in Multiview function merges up to four feeds into one source in Picture in Picture, Side by Side, Triple or Quad layouts. This single source can be chosen as the camera input in conferencing apps like Zoom, Teams, Slack and Discord. Layouts are switched with the 4K Capture Utility or from a Stream Deck, which can also be used in multi-action sequences.
The card installs inside a desktop PC and is not compatible with laptops or Mac. It needs Windows 10 (64-bit) or newer and a PCIe 2.0 x4, x8 or x16 slot. The free 4K Capture Utility provides the control software, and the interface is DirectShow.
Vidéo
Spécifications
- Marque
- Elgato
- Modèle
- Cam Link Pro
- Catégorie
- Studio › Interfaces audio
Inputs
- Video inputs
- 4x HDMI (unencrypted)
- Supported resolutions
- 2160p30, 1080p60, 1080p30, 1080i, 720p60, 576p, 480p
- Maximum capture
- Up to 1080p60 / 4K30
- Audio
- Embedded HDMI audio capture
Connectivity
- Interface
- PCIe 2.0 x4
- Compatible slots
- PCIe 2.0 x4/x8/x16
- Software interface
- DirectShow
- Multiview
- Yes, up to 4 feeds in one source
- Stream Deck integration
- Yes
Software
- Control software
- 4K Capture Utility (free download)
- Multiview layouts
- Picture in Picture, Side by Side, Triple, Quad
- Compatible apps
- OBS, vMix, Streamlabs, Zoom, Teams, Slack, Discord
System requirements
- Operating system
- Windows 10 (64-bit) or newer
- CPU
- 6th-generation Intel Core i7 (i7-6xxx) / AMD Ryzen 7 or better
- GPU
- NVIDIA GeForce GTX 10xx or better
- Form factor
- Internal card for desktop PC, not compatible with laptops
Physical
- Dimensions (W x H x D)
- 148 x 51 x 192 mm | 5.83 x 2.01 x 7.56 in.
- SKU
- 10GAW9901
In the box
- Contents
- Cam Link Pro
