AMP-F10
Stereo power amplifier rated at 200 W per channel into 8 ohms and 320 W into 4 ohms, with bridged-mode output up to 950 W. It takes RCA and XLR inputs and suits both home hi-fi systems and studio or larger-room setups.
- 200 W per channel at 8 ohms, 320 W at 4 ohms
- Bridged mode: 650 W at 8 ohms, 950 W at 4 ohms
- RCA and XLR inputs
- 1000 W dual-channel independent linear power supply
- Five MOSFET pairs per channel
- THD 0.008%, SNR 113 dB, damping factor above 600
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un AMP-F10, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The AMP-F10 is a stereo power amplifier built around a 1000 W linear power supply in which each channel has its own supply section. Output is 200 W per channel at 8 ohms and 320 W per channel at 4 ohms. In bridged mode it reaches 650 W at 8 ohms and 950 W at 4 ohms.
The output stage uses five pairs of matched MOSFET transistors per channel, wired in parallel to share current evenly. The input stage is a dual differential design with a symmetrical circuit and negative feedback, intended to keep distortion low and to reject common-mode noise. Stated figures include 0.008% total harmonic distortion, a 113 dB signal-to-noise ratio and a damping factor above 600. A DC filtering circuit sits between the mains supply and the audio circuits to remove low-frequency DC and reduce toroidal transformer hum.

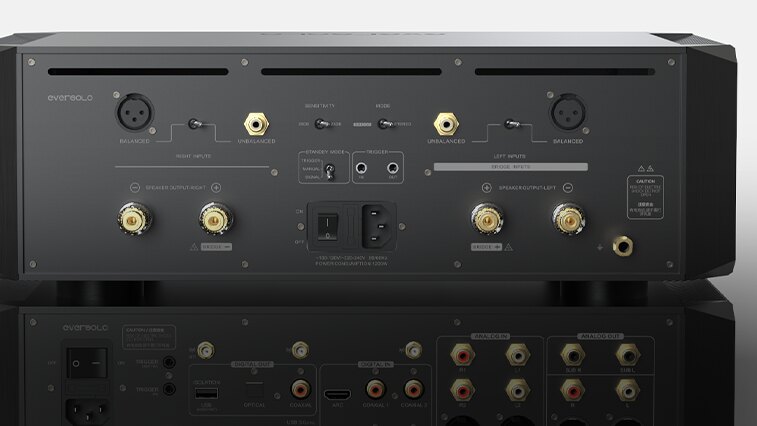

Sources connect through RCA or XLR inputs, so the amplifier can be used with hi-fi components as well as studio equipment.
Vidéo
Spécifications
- Marque
- Eversolo
- Modèle
- AMP-F10
- Catégorie
- Hi-Fi et audio maison › Amplificateurs
Inputs
- Input types
- RCA and XLR
Audio
- Power per channel (8 ohms)
- 200W
- Power per channel (4 ohms)
- 320W
- Bridged power (8 ohms)
- 650W
- Bridged power (4 ohms)
- 950W
- Total harmonic distortion
- 0.008%
- Signal-to-noise ratio
- 113dB
- Damping factor
- Exceeding 600
- Input circuit
- Dual differential amplifiers, symmetrical design with negative feedback
Power
- Power supply
- 1000W dual-channel independent linear power supply
- Transformer
- Toroidal
- AC supply filtering
- DC filtering circuit between mains and audio circuit
Amplification
- Output transistors
- 5 pairs of matched MOSFETs per channel
- Output configuration
- Stereo, bridgeable
- Series
- Amplifier Series
