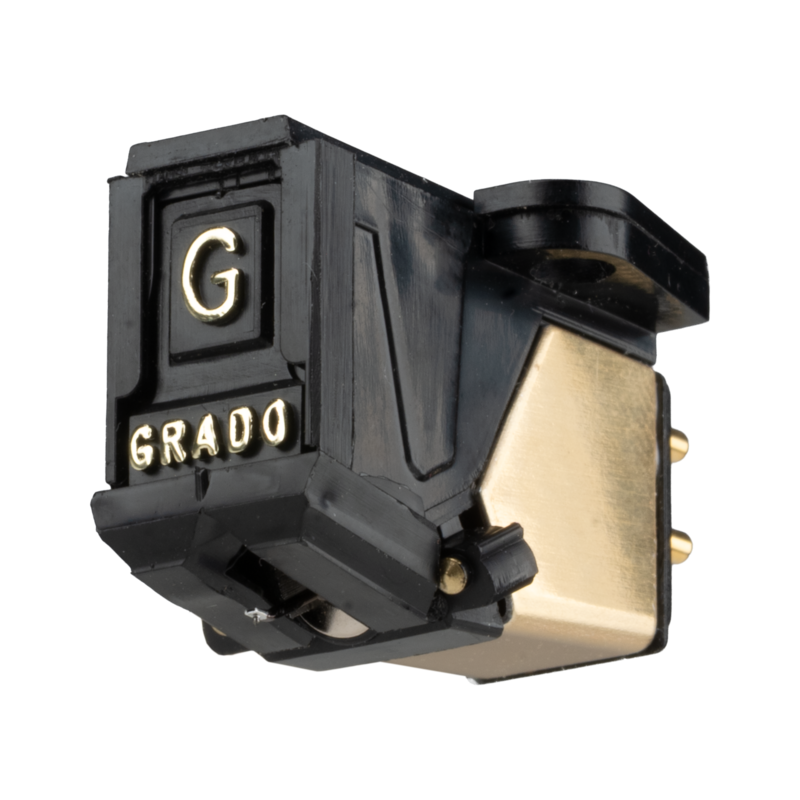

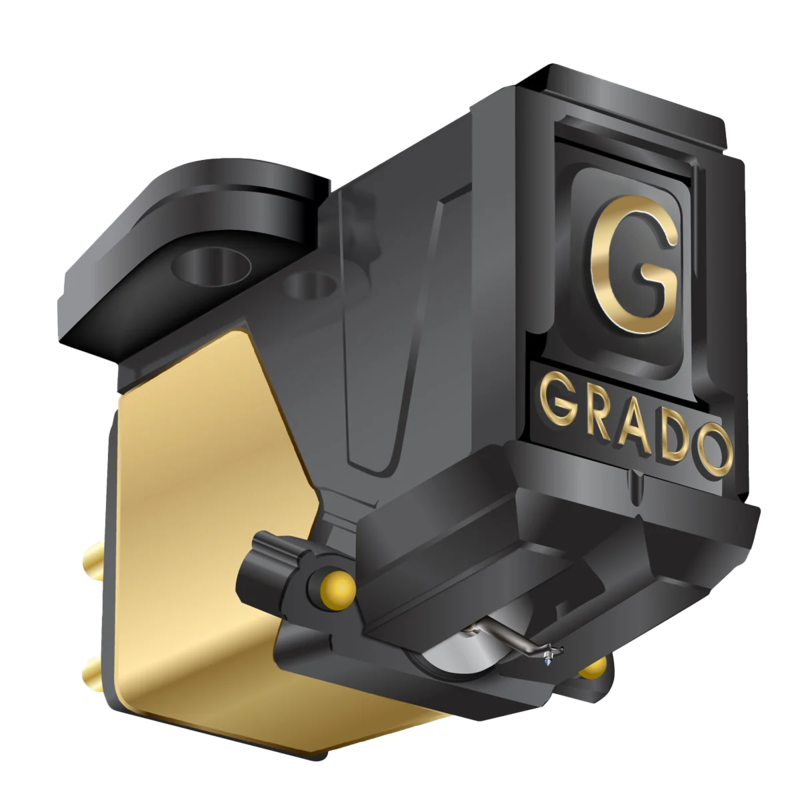

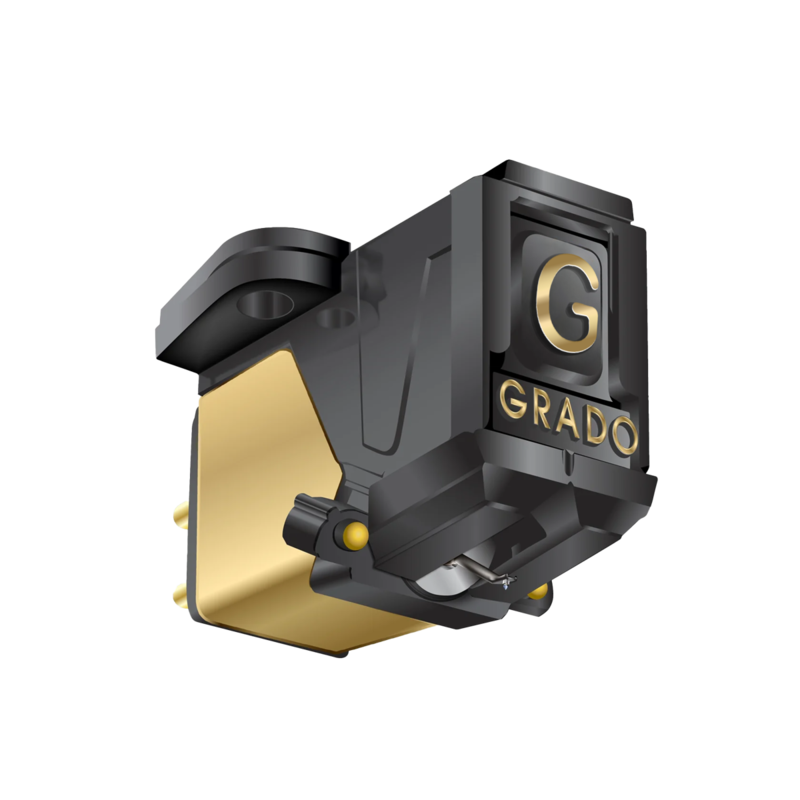

Gold4
The Gold4 is a high-output moving iron phono cartridge in Grado's Prestige Series, fitted with an elliptical diamond stylus on an aluminum cantilever. It suits turntable owners who want a user-serviceable cartridge in standard 1/2-inch or P-mount form.
- Moving iron design (flux-bridger principle)
- Elliptical diamond stylus, aluminum cantilever
- Output 4 mV, response 10-55,000 Hz
- Tracking force 1.6-1.9 g, weight 6 g
- User-replaceable stylus, shared across Prestige Series
- Standard 1/2" or P-mount versions
Photos
6Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Gold4, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
Gold4 is a moving iron cartridge built on Joseph Grado's patented flux-bridger principle. The coil stays fixed while the moving mass remains very low. Its output is high enough to work with a wide range of phono stages. The housing is die-injection molded.
The stylus is a bonded elliptical diamond on an aluminum cantilever. The stylus assembly can be replaced by the user, and all Prestige Series styli are interchangeable between models. Internally the signal path uses 5N OCC copper. Each cartridge is cryogenically treated and internally damped to reduce unwanted resonance.
The cartridge is offered in two mounting versions: a standard half-inch screw mount and a P-mount. It outputs 4 mV, has a 10-55,000 Hz frequency response and weighs 6 grams. Tracking force is 1.6-1.9 grams, and the recommended input load is 10k-47k ohms.
Spécifications
- Marque
- Grado
- Modèle
- Gold4
- Catégorie
- Matériel DJ › Cellules et pointes de lecture
Audio
- Cartridge type
- Moving iron (high output)
- Output
- 4 mV @ 5 CMV (45 degrees)
- Frequency response
- 10-55,000 Hz
- Channel separation
- Average 25 dB, 10-30,000 Hz
- Input load
- 10k - 47k ohms
- Induction
- 50 mH
- DC resistance
- 660 ohms
- Compliance
- 20 um/mN
Stylus
- Stylus
- Diamond, elliptical
- Cantilever
- Aluminum
- Stylus replacement
- User-replaceable
- Series
- Prestige Series
Physical
- Cartridge weight
- 6 grams
- Tracking force
- 1.6 - 1.9 grams
- Mounting
- P-mount or 1/2" screw mount
- Housing
- Die-injection molded
Construction
- Internal wiring
- 5N OCC copper
- Treatment
- Cryogenic treatment and internal damping
- Options
- Standard Mount, P-Mount
