Statement4
Statement4 is a wood-bodied moving iron phono cartridge from Grado's Lineage Series, with a nude Shibata diamond on a boron cantilever. It is a low output design meant for turntable owners with a high-gain phono stage, and comes in stereo or mono versions.
- Moving iron flux-bridger design
- Brazilian Ebony wood body
- Nude Shibata diamond on machined boron cantilever
- 7N OCC copper internal wiring, cryogenic treatment
- Low output 1.0mV, for high-gain phono stages
- Stereo or mono (mono is special order)
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Statement4, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

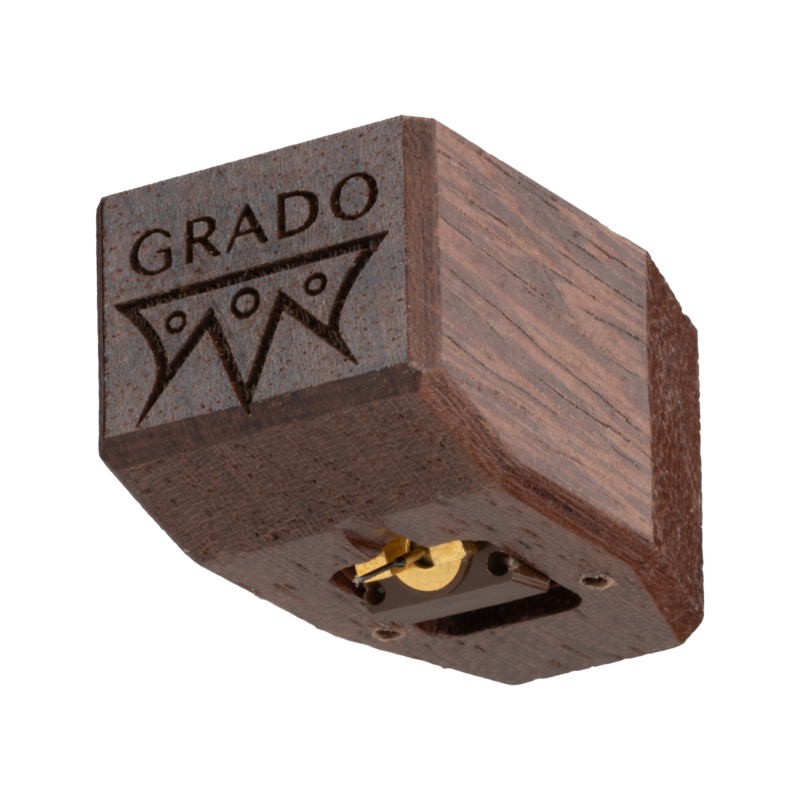

Statement4 is a low output moving iron cartridge built on Grado's patented flux-bridger principle, in which a very light moving assembly works with a fixed coil. It sits in the Lineage Series and uses a Brazilian Ebony wood body that is shaped to reduce mass, help control resonance and make the cantilever easier to see during alignment.
The stylus is a nude Shibata diamond on a machined boron cantilever. Internal wiring uses 7N OCC copper, and the components and final assembly go through cryogenic treatment. The internal structure is damped to limit resonance. The cartridge is described as balanced, with a smooth top end, a present midrange and defined bass.
It is rated for a 1.6-1.9 gram tracking force and a 10-47k ohm input load, and it is intended for use with a high-gain phono stage. It is offered in stereo and in mono, with the mono version sold as a special order with no returns. Owners of other Grado wood body cartridges can ask about a pricing accommodation through the Wood Cartridge Upgrade Program.
Spécifications
- Marque
- Grado
- Modèle
- Statement4
- Catégorie
- Matériel DJ › Cellules et pointes de lecture
Audio
- Type
- Moving iron, flux-bridger design
- Output
- 1.0mV @ 5 CMV (45 degrees)
- Controlled frequency response
- 5-65 kHz
- Channel separation
- Avg. 30db, 10-30k Hz
- Compliance
- 20 μm/mN
Electrical
- Input load
- 10-47k ohms
- Inductance
- 8mH
- Resistance
- 74 ohms
- Internal wiring
- 7N OCC copper
Stylus
- Stylus
- Nude Shibata diamond
- Cantilever
- Machined Boron
Setup
- Tracking force
- 1.6 -1.9 grams
Physical
- Body
- Brazilian Ebony Wood
- Cartridge weight
- 10 grams
- Series
- Lineage Series
- Configurations
- Stereo; Mono (special order, no returns)
