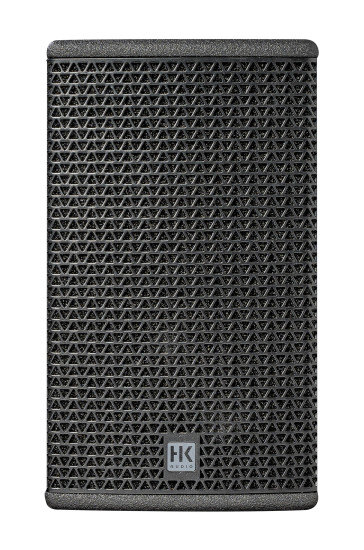

CONTOUR X CX 8
Compact passive 2-way mid/high point-source loudspeaker with an 8" cone driver and 1" compression driver in a birch plywood cabinet. Intended as a stage monitor, front-fill or small club PA top, optionally paired with CS 118 or CS 218 subwoofers.
- Passive 2-way mid/high unit, bass reflex
- 8" SICA cone + 1" B&C compression driver
- 300 W RMS, 127 dB max SPL peak
- 76 Hz - 19 kHz (-6 dB)
- 80° x 60° rotatable constant-directivity horn
- 10.4 kg, birch plywood, 4 x M8 rigging points
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un CONTOUR X CX 8, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The CONTOUR X CX 8 is a passive, bass-reflex two-way cabinet that combines an 8" neodymium cone driver with a 1" neodymium compression driver. It is rated at 300 W RMS (600 W program, 1200 W peak) into 8 ohms and reaches a maximum peak SPL of 127 dB. A 24 dB/octave crossover splits the signal at 2.2 kHz, and the constant-directivity horn, developed with BEM simulation, gives a rotatable 80° x 60° coverage pattern.
The cabinet is built from birch plywood with a PU coating in jet black and a steel front grille backed with acoustic foam. It has four M8 rigging points, an integrated carrying handle and a pole mount with a 3° tilt. The enclosure can also be angled at 30° as a monitor or set to 90° as a front-fill. It can serve as a stage monitor, a front-fill at the stage edge, or a compact club PA top with a CS 118 or CS 218 subwoofer.
Connection is through two NL4 Speakon inputs and two NL4 Speakon parallel outputs, with switchable pin assignment. DSP presets are available for Lab.gruppen IPX and IPD series, Lake and Powersoft Armonia+ amplifiers.
Vidéo
Spécifications
- Marque
- HK Audio
- Modèle
- CONTOUR X CX 8
- Catégorie
- Sonorisation live › Enceintes PA
Audio
- Concept
- Passive 2-way mid/high unit
- Cabinet principle
- Bass reflex
- Power handling RMS
- 300 W
- Power handling program
- 600 W
- Power handling peak
- 1200 W
- Nominal impedance
- 8 Ohms
- Max. SPL average
- 122 dB
- Max. SPL peak
- 127 dB
- Sensitivity 1 W/1 m
- 95 dB
- Crossover frequency
- 2.2 kHz
- Frequency range -6 dB
- 76 Hz - 19 kHz
- Frequency range -10 dB
- 65 Hz - 20 kHz
- Dispersion angle -6 dB (H x V)
- 80° x 60°, rotatable
Components
- Mid/high frequency
- 1 x 8" SICA cone speaker with neodymium magnet and 2.5" voice coil
- High frequency
- 1 x 1" B&C compression driver with neodymium magnet and 1.4" voice coil
- Crossover
- High pass: 24 dB/oct., Low pass: 24 dB/oct.
- Horn
- Constant directivity horn, rotatable
Connectivity
- Input
- 2 x NL4 Speakon
- Output/parallel output
- 2 x NL4 Speakon
- Pin assignment
- 1+/-, 2+/-, switchable
Physical
- Rigging
- 4 x rigging point M8

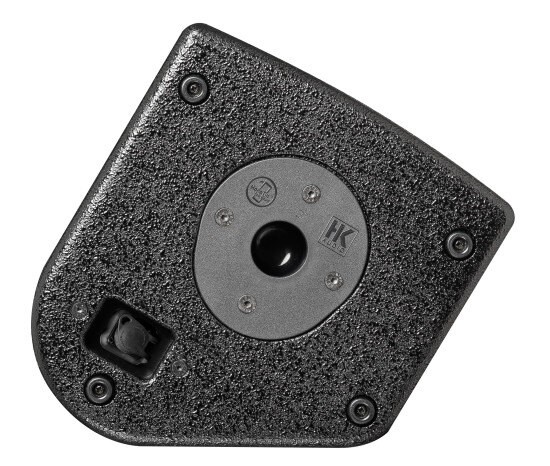

- Pole mount
- HK Audio MonoTilt (3°)

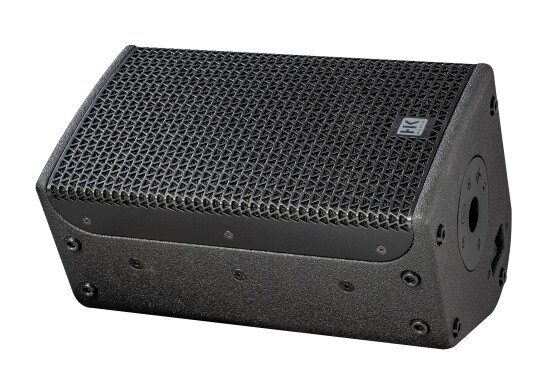

- Monitor angle
- 30° (Monitoring) and 90° (Frontfill)
- Carrying handles
- 1 x integrated carrying handle
- Cabinet material
- Birch plywood
- Cabinet surface
- PU coating
- Color
- Jet black (RAL 9005)
- Front grille
- Steel front grille with anticorrosive coating and backed acoustic foam
- Dimensions (W x H x D)
- 25.5 x 42.5 x 27.0 cm (10-1/32 x 16-23/32 x 10-5/8 inch)
- Weight
- 10.4 kg (22.9 lbs)
Software
- Amp presets
- Lab.gruppen IPX Series, IPD Series, Lake; Powersoft Armonia+
- Filter sheets
- Lab.Gruppen IPX Series, IPD Series (limiter settings incl.)
