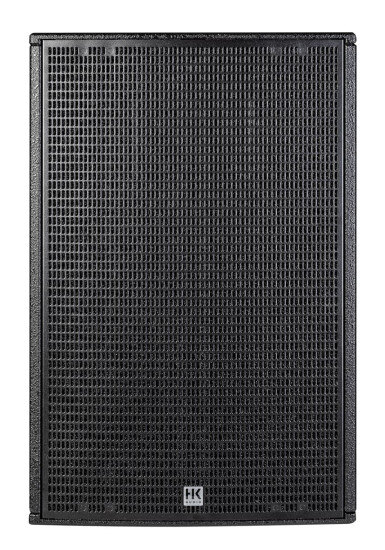

FINEO FO 15
The FINEO FO 15 is a passive 2-way mid/high speaker with a 15-inch woofer and 1-inch compression driver, rated at 500 W RMS. It is intended for fixed installations such as clubs, sports venues and larger rooms, and can be paired with S118 or S218 subwoofers.
- 15" woofer with 2.5" voice coil, 1" compression driver
- 500 W RMS, 1000 W program, 2000 W peak
- 126 dB max. SPL peak, 95 dB sensitivity
- 80° x 60° rotatable constant-directivity horn
- Ball impact certified to DIN 18032-3
- NL4 Speakon input and parallel output
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un FINEO FO 15, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The FO 15 is a passive two-way bass-reflex cabinet built around a 15-inch cone woofer with a 2.5-inch voice coil and a 1-inch compression driver. It is the most powerful model in the FINEO range, with a 2.4 kHz crossover point and a frequency response of 64 Hz to 20 kHz (-6 dB). The cabinet is rated for ball impact under DIN 18032-3, which makes it suitable for sports halls.
The constant-directivity horn comes from the maker's CONTOUR X touring series. It covers 80° x 60° and can be rotated by 90°, so the speaker can stand upright, lie on its side or hang on its side. It is intended for larger rooms and applications that need high sound pressure levels, for speech and music alike. Combined with S118 or S218 subwoofers it can serve as a main system for music, karaoke, clubs or sports venues.
The cabinet is MDF with an acrylic finish and a steel front grille, and has rigging points at the sides, bottom, lid and back, plus a VESA-compatible mount. Connection is by NL4 Speakon input and parallel output. DSP presets and filter sheets are available for a range of amplifier and processor platforms. Installation is limited to dry indoor areas.
Vidéo
Spécifications
- Marque
- HK Audio
- Modèle
- FINEO FO 15
- Catégorie
- Sonorisation live › Enceintes PA
Audio
- Concept
- Passive 2-way mid/high unit
- Cabinet principle
- Bass reflex
- Nominal impedance
- 8 Ohms
- Sensitivity 1 W/1 m
- 95 dB
- Max. SPL average
- 122 dB
- Max. SPL peak
- 126 dB
- Frequency range -6 dB
- 64 Hz - 20 kHz
- Frequency range -10 dB
- 61 Hz - 20 kHz
- Crossover frequency
- 2.4 kHz
- Dispersion angle -6 dB (H x V)
- 80° x 60°
Power handling
- Power handling RMS
- 500 W
- Power handling program
- 1000 W
- Power handling peak
- 2000 W
Components
- Low frequency
- 1 x 15" Sica cone speaker with ferrite magnet and 2.5"-voice coil
- High frequency
- 1 x 1" Sica compression driver with ferrite magnet and 1"-voice coil
- Crossover
- High pass: 18 dB/oct., Low pass: 12 dB/oct.
- High frequency protection
- PTC circuit
- Horn
- BEM optimized Constant directivity horn, rotatable

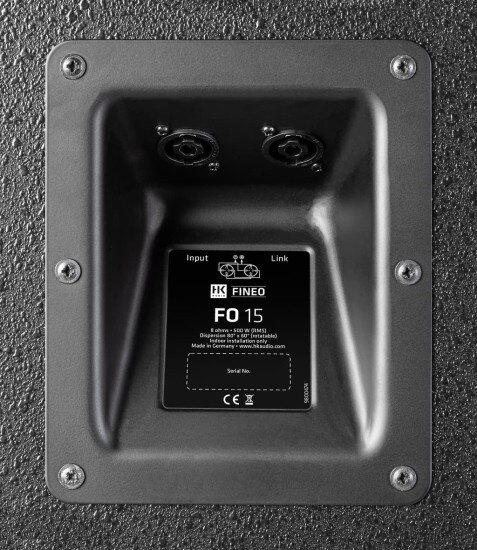

Connectivity
- Input
- 1 x NL4 Speakon
- Output/parallel output
- 1 x NL4 Speakon
- Pin assignment
- 1+/- (input/parallel output), 2+/- (looped through)
Certifications
- Ball impact resistance (DIN 18032-3)
- certified (MPA Uni Stuttgart)
- IP protection class (EN 60529)
- not specified (installation only in dry indoor areas)
Physical
- Cabinet material
- MDF
- Cabinet surface
- 1-component-acrylic enamel
- Color
- Jet black (RAL 9005), Signal white (RAL 9003) or special color according to catalog
- Front grille
- Steel front grille with anticorrosive coating and backed acoustic foam
- Rigging
- 2 x M8 on the side, 2 x M8 bottom/lid, 1 x M8 on the back, 4 x M6 on the back (VESA MIS-E 200 x 200 mm)
- Dimensions (W x H x D)
- 42.6 x 65.1 x 42.5 cm
- Weight
- 23.5 kg
Software
- Amping/presets
- Lab.gruppen IPX Series, LEA Professional Sharkware
- Filter sheets
- Biamp Tesira, BSS, Lab.Gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Ram Audio, Symetrix
