FINEO FO 5
Compact cube-shaped passive 2-way loudspeaker with a coaxial 5-inch woofer and 1-inch silk dome tweeter, rated at 100 W RMS. Designed for fixed installations such as delay or nearfill positions, lecterns, hospitality and background sound.
- Coaxial Celestion 5" woofer with 1" silk dome tweeter
- 110° dispersion (-6 dB)
- 100 W RMS, 112 dB peak SPL
- NL4 Speakon input and parallel output
- Ball impact certified to DIN 18032-3
- 4.2 kg, 19.5 cm cube, black or white
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un FINEO FO 5, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

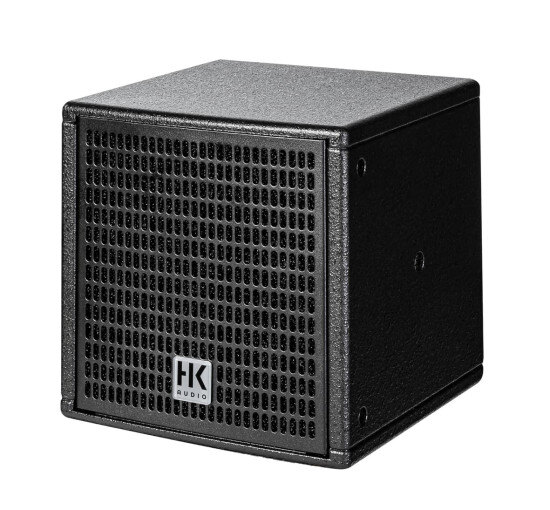

The FINEO FO 5 is a passive two-way mid/high unit in a 19.5 cm cube, built around a Celestion coaxial driver. A 5-inch woofer carries a 1-inch silk dome tweeter, and the shape of the woofer cone works as the horn for the tweeter. Dispersion is 110° (-6 dB), which suits close listening distances. The bass-reflex cabinet covers 81 Hz to 20 kHz (-6 dB), handles 100 W RMS and reaches 112 dB peak SPL.

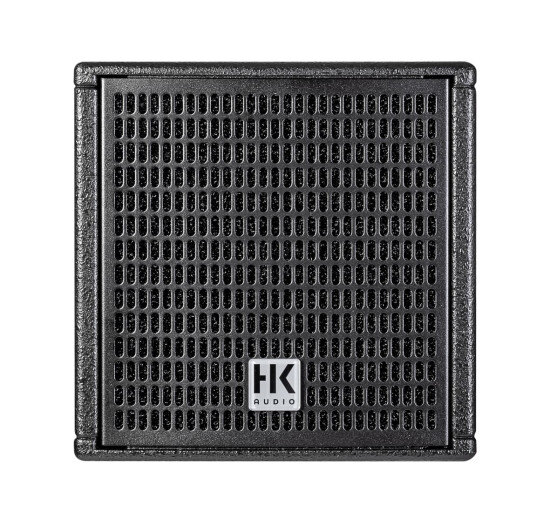

Typical uses are delay speakers in larger rooms, nearfill at the edge of a stage, lectern monitoring, hospitality and background sound, exhibitions and immersive setups with many sources. Paired with the S112 (F) subwoofer it forms a full-range system. The cabinet is MDF with an acrylic finish and a steel front grille backed with acoustic foam. It is ball-impact certified to DIN 18032-3 and is meant for dry indoor installation only.

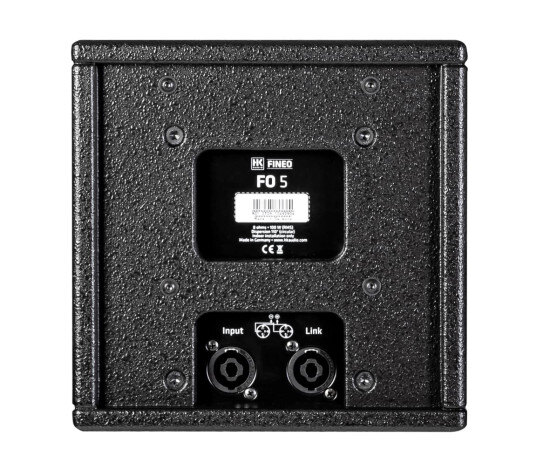

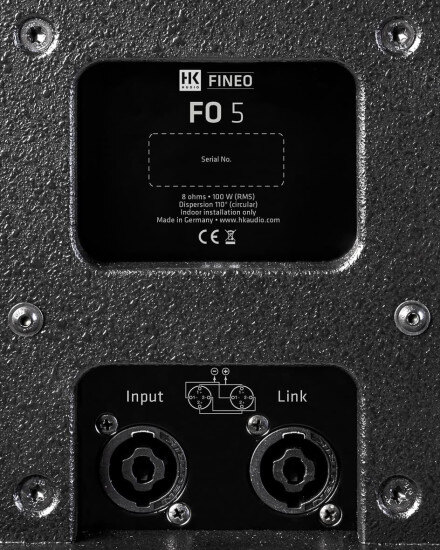

Connection is by NL4 Speakon, with one input and one parallel output. Mounting points are 2 x M6 on the side and 4 x M4 on the back (VESA MIS-D 100 x 100 mm), and a range of brackets and wall mounts is available. DSP presets and filter sheets cover several amplifier and processor platforms.
Vidéo
Spécifications
- Marque
- HK Audio
- Modèle
- FINEO FO 5
- Catégorie
- Sonorisation live › Enceintes PA
Audio
- Concept
- Passive 2-way mid/high unit
- Cabinet principle
- Bass reflex
- Power handling RMS
- 100 W
- Power handling program
- 200 W
- Power handling peak
- 400 W
- Nominal impedance
- 8 Ohms
- Max. SPL average
- 109 dB
- Max. SPL peak
- 112 dB
- Sensitivity 1 W/1 m
- 87 dB
- Crossover frequency
- 3.1 kHz
- Frequency range -6 dB
- 81 Hz - 20 kHz
- Frequency range -10 dB
- 75 Hz - 20 kHz
- Dispersion angle -6 dB (horizontal x vertical)
- 110°
Components
- Low frequency
- 1 x 5" Celestion coaxial speaker with ferrite magnet and 1.5" voice coil
- High frequency
- 1 x 1" Celestion silk dome tweeter with neodymium magnet and 1" voice coil
- Crossover slopes
- High pass: 18 dB/oct., Low pass: 12 dB/oct.
- High frequency protection
- PTC circuit
Connectivity
- Input
- 1 x NL4 Speakon
- Output/parallel output
- 1 x NL4 Speakon
- Pin assignment
- 1+/- (input/parallel output), 2+/- (looped through)
Physical
- Rigging

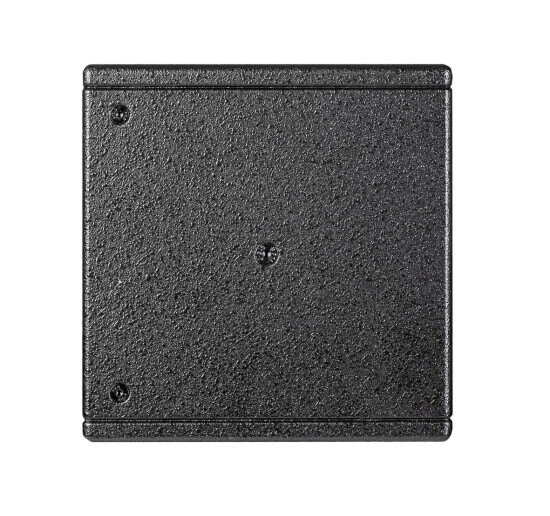

- 2 x M6 on the side, 4 x M4 on the back (VESA MIS-D 100 x 100 mm)
- Cabinet material
- MDF
- Cabinet surface
- 1-component acrylic enamel
- Color
- Jet black (RAL 9005), Signal white (RAL 9003) or special color
- Front grille
- Steel grille with anticorrosive coating and backed acoustic foam
- Dimensions (W x H x D)
- 19.5 x 19.5 x 19.5 cm (7-11/16 x 7-11/16 x 7-11/16 inch)
- Weight
- 4.2 kg (9.3 lbs)
Certifications
- Ball impact resistance (DIN 18032-3)
- certified (MPA Uni Stuttgart)
- IP protection class (EN 60529)
- not specified (installation only in dry indoor areas)
