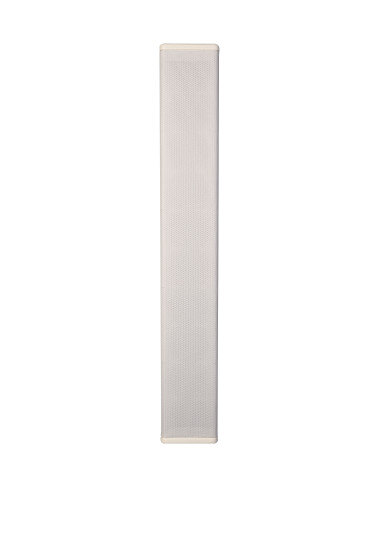

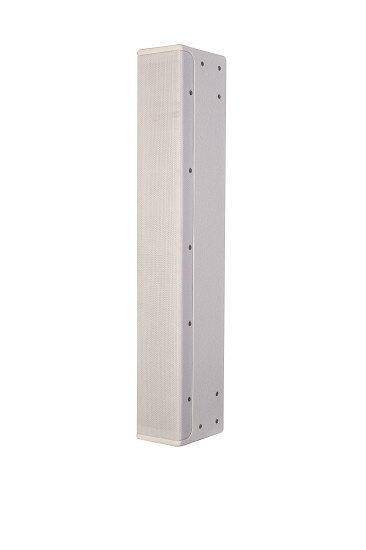

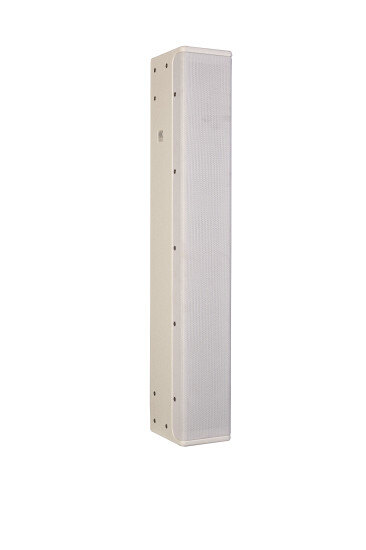

P10i
The P10i is a passive column loudspeaker for fixed installations, with ten 3-inch full-range drivers in a closed birch plywood cabinet. It suits churches, sports halls, outdoor areas and voice-alarm systems that need a weather-resistant, high-output speaker.
- 10 x 3" full-range drivers, closed cabinet
- 300 W RMS / 600 W program / 1200 W peak
- Max SPL peak 126 dB, sensitivity 97 dB
- 100° x 5° symmetrical dispersion
- IP 66, ball impact DIN 18032-3, EN 54-24
- 4-pin Euroblock input and parallel output
Photos
5Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un P10i, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The P10i is a passive broadband column loudspeaker with ten 3" Beyma full-range drivers in a closed cabinet. It handles 300 W RMS, 600 W program and 1200 W peak, with a nominal impedance of 16 ohms and a peak SPL of 126 dB. The horizontal coverage is 100° and the vertical coverage is a narrow 5°, with a symmetrical pattern. It has no integrated crossover and needs external amplification with DSP.

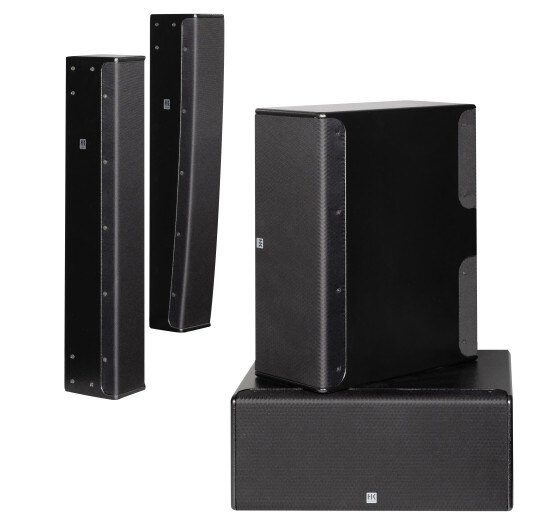

The cabinet is birch plywood with a two-component textured coating, a steel front grille with anticorrosive treatment and an acoustic fabric cover. It is certified to IP 66, to ball impact resistance under DIN 18032-3 for sports halls, and to EN 54-24 as a Type B outdoor voice-alarm loudspeaker. Black (RAL 9005) and white (RAL 9003) are standard, with special colours and PU coating available for unroofed outdoor use. It can be combined with the SI Series P10j for difficult rooms or long-throw outdoor use.
Connection is by 4-pin Euroblock input with a parallel output for linking further units. Presets and filter data are offered for Lab.gruppen IPX and IPD, Lake, Powersoft Armonia+, QSC Q-SYS and Ashly. A U-bracket and cover plate are supplied, and a range of pole, ceiling and swivel mounts is sold separately.
Spécifications
- Marque
- HK Audio
- Modèle
- P10i
- Catégorie
- Sonorisation live › Enceintes PA
Audio
- Concept
- Passive broadband column loudspeaker
- Cabinet principle
- Closed
- Power handling RMS
- 300 W
- Power handling program
- 600 W
- Power handling peak
- 1200 W
- Nominal impedance
- 16 Ohms
- Max. SPL average
- 120 dB
- Max. SPL peak
- 126 dB
- Sensitivity 1 W/1 m
- 97 dB
- Frequency range -6 dB
- 155 Hz - 18 kHz
- Frequency range -10 dB
- 130 Hz - 19 kHz
- Dispersion angle -6 dB (H x V)
- 100° x 5° (symm.)
- Mid/high frequency
- 10 x 3" Beyma broadband loudspeaker, ferrite magnet, 0.8" voice coil
- Crossover
- No integrated crossover
EN 54
- Nominal noise power (EN 54 signal)
- 300 W
- Sensitivity 1 W/4 m³
- 81 dB
- Max. SPL (nominal power/4 m/EN 54 signal)
- 103 dB
Certifications
- Ball impact resistance (DIN 18032-3)
- certified (MPA Uni Stuttgart)
- IP protection class (EN 60529)
- IP 66 (TÜV Süd)
- Voice alarms (EN 54-24:2008)
- certified (Typ B, Outside area); 1438-CPR-0754 (CNBOP-PIB)
Connectivity
- Input
- 1 x 4-pin Euroblock plug
- Output/parallel output
- 1 x 4-pin Euroblock plug, parallel connection
- Amping/presets
- Lab.gruppen IPX Series, IPD Series, Lake; Powersoft Armonia+; QSC Q-SYS (filter container)
Physical
- Cabinet material
- Birch plywood
- Cabinet surface
- 2-component textured coating
- Rigging points
- 12 x M5 on the side, 12 x M5 on the back
- Color
- Jet black (RAL 9005), Signal white (RAL 9003) or special color (over 30 colors)
- Dimensions (W x H x D)
- 12.0 x 82.0 x 16.5 cm
- Weight
- 10.4 kg
In the box
- Accessories included
- U-bracket (swivels horizontally), cover plate with 2 x PG screw connection
