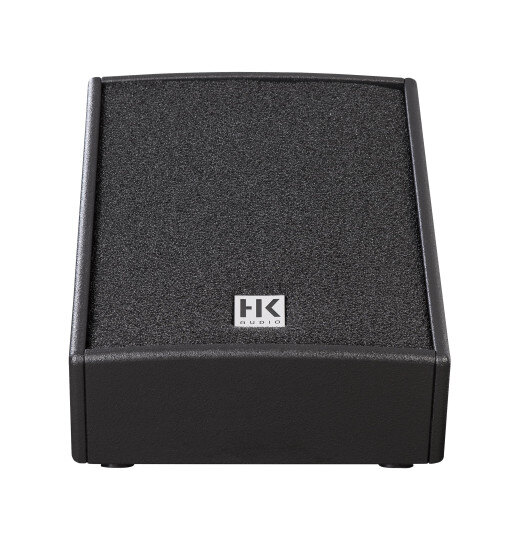

PREMIUM PR:O 12 M
The PREMIUM PR:O 12 M is a passive 2-way 12" stage monitor with a 30° monitor angle, rated at 400 W RMS and 8 Ω. It suits performers who need a clear vocal and instrument foldback on indoor and outdoor stages.
- Passive 2-way 12" stage monitor with 30° angle
- 400 W RMS / 800 W program / 1200 W peak
- 8 Ohm nominal impedance, 104 dB sensitivity
- Max. SPL peak 128 dB
- NL4 Speakon input and parallel output
- 16.5 kg, MDF cabinet in jet black
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un PREMIUM PR:O 12 M, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
This is a passive two-way mid/high unit in a bass-reflex cabinet. It combines a 12" cone speaker with a 1" compression driver on a constant directivity horn, crossed over at 2 kHz. A dynamic protective circuit guards the high-frequency driver. Power handling is 400 W RMS, 800 W program and 1200 W peak, with a maximum peak SPL of 128 dB.
The cabinet is built from MDF with a jet black acrylic enamel finish and a steel front grille backed with acoustic foam. The 30° monitor angle suits wedge-style use on stage, and two integrated carrying handles help with transport. Dispersion is 60° x 40° (horizontal x vertical).

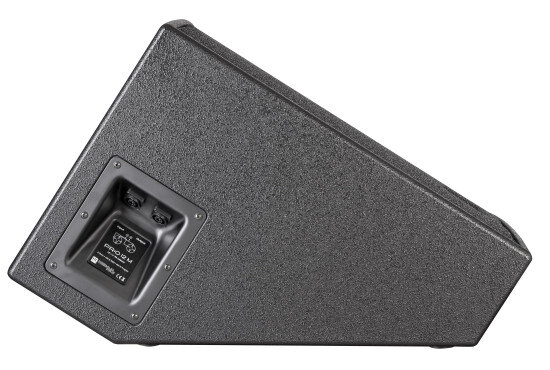

Connection is by NL4 Speakon, with one input and one parallel output, so several cabinets can be chained from one amplifier channel. Amp presets and filter sheets are available for Lab.gruppen IPX and IPD series amplifiers, with limiter settings included. A protective cover is available as an accessory.
Vidéo
Spécifications
- Marque
- HK Audio
- Modèle
- PREMIUM PR:O 12 M
- Catégorie
- Sonorisation live › Autre matériel live
Audio
- Concept
- Passive 2-way mid/high unit
- Cabinet principle
- Bass reflex
- Power handling RMS
- 400 W
- Power handling program
- 800 W
- Power handling peak
- 1200 W
- Nominal impedance
- 8 Ohms
- Max. SPL peak
- 128 dB
- Sensitivity 1 W/1 m
- 104 dB
- Crossover frequency
- 2 kHz
- Frequency range -6 dB
- 70 Hz - 19 kHz
- Frequency range -10 dB
- 63 Hz - 19 kHz
- Dispersion angle -6 dB (H x V)
- 60° x 40°
Components
- Mid/high frequency
- 1 x 12" cone speaker
- High frequency
- 1 x 1" compression driver
- Crossover
- High pass: 12 dB/oct., Low pass: 12 dB/oct.
- High frequency protection circuit
- Dynamic protective circuit
- Horn
- Constant directivity horn
Connectivity
- Input
- 1 x NL4 Speakon
- Output/parallel output
- 1 x NL4 Speakon
- Pin assignment
- 1+/-
Amping
- Amping/Presets
- Lab.gruppen IPX Series, IPD Series
- Amping/Filter Sheets
- Lab.Gruppen IPX Series, IPD Series (limiter settings incl.)
Physical
- Cabinet features/rigging
- monitor angle: 30°
- Carrying handles
- 2 x integrated carrying handle
- Cabinet material
- MDF
- Cabinet surface
- Acrylic enamel
- Color
- Jet black (RAL 9005)
- Front grille
- Steel front grille, backed with acoustic foam
- Dimensions (W x H x D), metric
- 39 x 56 x 38 cm
- Dimensions (W x H x D), imperial
- 15-11/32 x 22-1/16 x 14-31/32 inch
- Weight, metric
- 16.5 kg
- Weight, imperial
- 36.4 lbs
