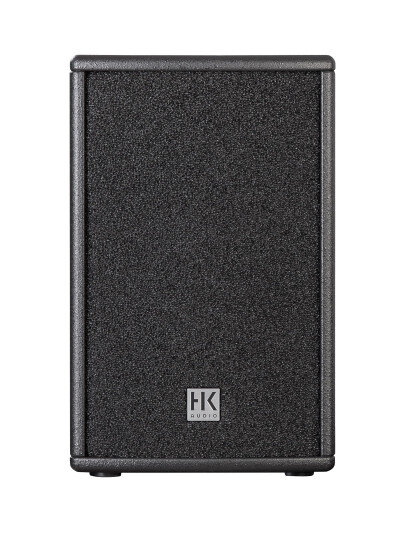

PREMIUM PR:O 8
Compact passive two-way 8-inch full-range loudspeaker with a bass-reflex cabinet and 300 W RMS power handling. Suited to simple installations in small event spaces, retail sound reinforcement and other tight venues.
- Passive 2-way 8" full-range, bass reflex
- 300 W RMS / 600 W program / 1200 W peak
- Max. SPL peak 122 dB
- 80° x 80° constant directivity horn
- NL4 Speakon input and parallel output
- 10 kg, MonoTilt 3°, 3 x M8 rigging points
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un PREMIUM PR:O 8, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The PREMIUM PR:O 8 is a passive two-way mid/high unit built around a 1-inch compression driver and an 8-inch cone speaker in a bass-reflex MDF cabinet. It is rated at 300 W RMS, 600 W program and 1200 W peak into 8 Ohms, with a frequency range of 89 Hz to 19 kHz (-6 dB) and a maximum peak SPL of 122 dB.
The constant directivity horn gives an 80° x 80° dispersion pattern, and the crossover sits at 2.5 kHz with 12 dB/oct. slopes. A dynamic protective circuit guards the high-frequency driver. The cabinet has a 3° MonoTilt angle, three M8 rigging points and two integrated handles, and the front is covered by a steel grille backed with acoustic foam.

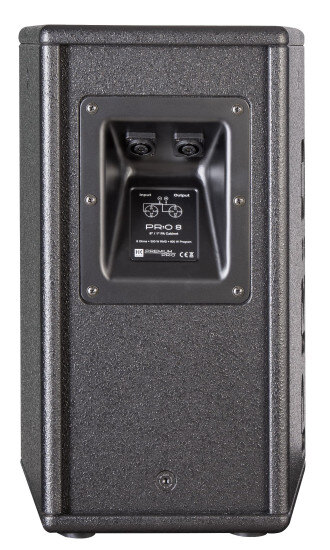

Connection is through two NL4 Speakon sockets, one input and one parallel output. Amp presets and filter sheets, including limiter settings, are available for Lab.gruppen IPX and IPD series amplifiers. At 10 kg and 27 x 42 x 27.5 cm, it is easy to place in confined spaces.
Vidéo
Spécifications
- Marque
- HK Audio
- Modèle
- PREMIUM PR:O 8
- Catégorie
- Sonorisation live › Enceintes PA
Audio
- Concept
- Passive 2-way mid/high unit
- Cabinet principle
- Bass reflex
- Power handling RMS
- 300 W
- Power handling program
- 600 W
- Power handling peak
- 1200 W
- Nominal impedance
- 8 Ohms
- Max. SPL peak
- 122 dB
- Sensitivity 1 W/1 m
- 97 dB
- Crossover frequency
- 2.5 kHz
- Frequency range -6 dB
- 89 Hz - 19 kHz
- Frequency range -10 dB
- 63 Hz - 19 kHz
- Dispersion angle -6 dB (H x V)
- 80° x 80°
Components
- Mid/high frequency
- 1 x 8" cone speaker
- High frequency
- 1 x 1" compression driver
- Crossover
- High pass: 12 dB/oct., Low pass: 12 dB/oct.
- High frequency protection circuit
- Dynamic protective circuit
- Horn
- Constant directivity horn
Connectivity
- Input
- 1 x NL4 Speakon
- Output/parallel output
- 1 x NL4 Speakon
- Pin assignment
- 1+/-
- Amping/Presets
- Lab.gruppen IPX Series, IPD Series
Physical
- Cabinet features/rigging
- HK Audio MonoTilt 3°, 3 x rigging point M8
- Carrying handles
- 2 x integrated carrying handle
- Cabinet material
- MDF
- Cabinet surface
- Acrylic enamel
- Color
- Jet black (RAL 9005)
- Front grille
- Steel front grille, backed with acoustic foam
- Dimensions (W x H x D)
- 27 x 42 x 27.5 cm (10-5/8 x 16-17/32 x 10-13/16 inch)
- Weight
- 10 kg (22.0 lbs)
