Ci160QR
A 6.5-inch in-ceiling loudspeaker with a coaxial Uni-Q driver and an ultra thin bezel that leaves only a narrow rim visible. Intended for installers and home users who want discreet ceiling placement with wide, even sound coverage.
- 160 mm (6.5 in.) Uni-Q coaxial driver array
- 19 mm aluminium dome tweeter with 'tangerine' waveguide
- UTB Ultra Thin Bezel for a narrow visible rim
- 38 Hz - 34 kHz (±6 dB), 2pi/open-backed
- 89 dB sensitivity (2.83 V / 1 m)
- Cut-out 196 mm x 196 mm, 91 mm mounting depth
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci160QR, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

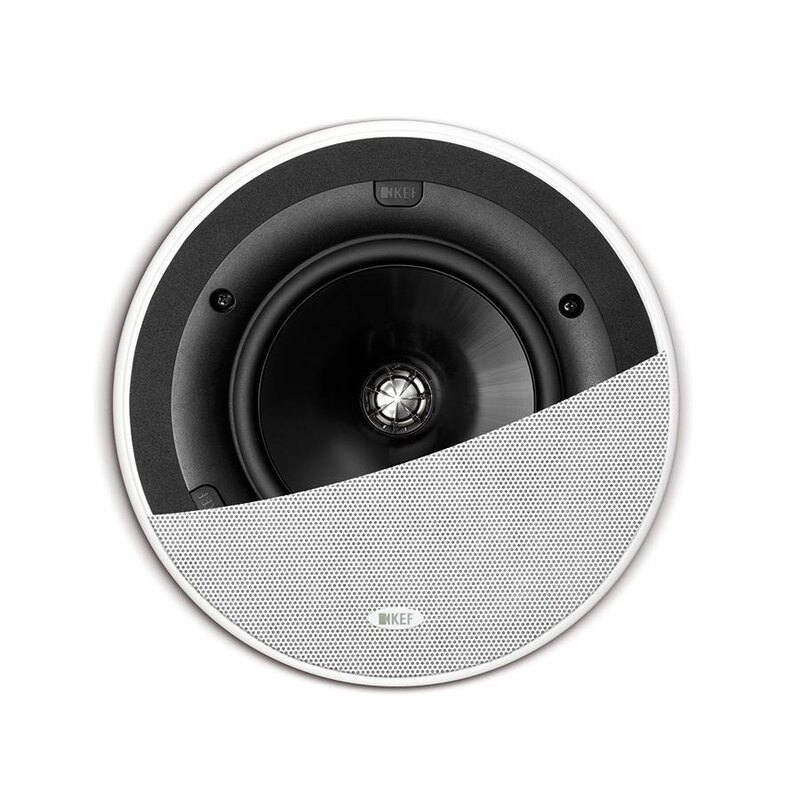

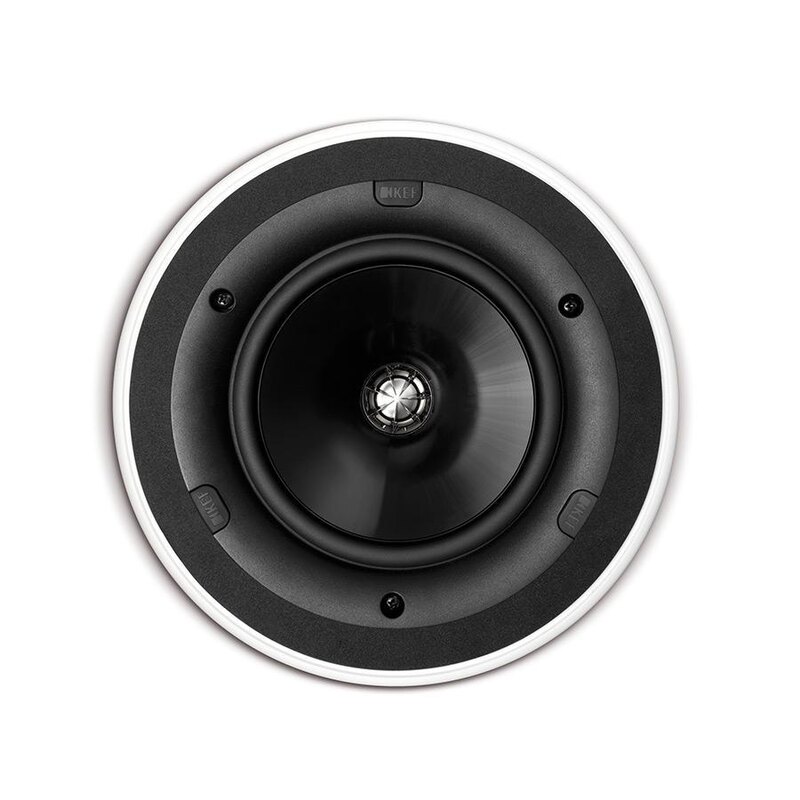

The Ci160QR is a passive in-ceiling speaker from KEF's Ci-Q Series. It uses a 160 mm (6.5 in.) Uni-Q driver array in which the 19 mm aluminium dome tweeter sits at the acoustic centre of the bass/midrange cone, so both drivers act as one point source. A 'tangerine' waveguide is fitted to the tweeter. The aim is wide, even dispersion, which allows fewer speakers to cover a room.
The Ultra Thin Bezel (UTB) design keeps the visible rim around the speaker as narrow as possible, giving freedom in choosing where to place it. The cabinet needs a 196 mm x 196 mm cut-out and has a mounting depth of 91 mm from the surface. Frequency response is 38 Hz - 34 kHz (±6 dB) in 2pi/open-backed use, with sensitivity of 89 dB and a 3.0 kHz crossover point.

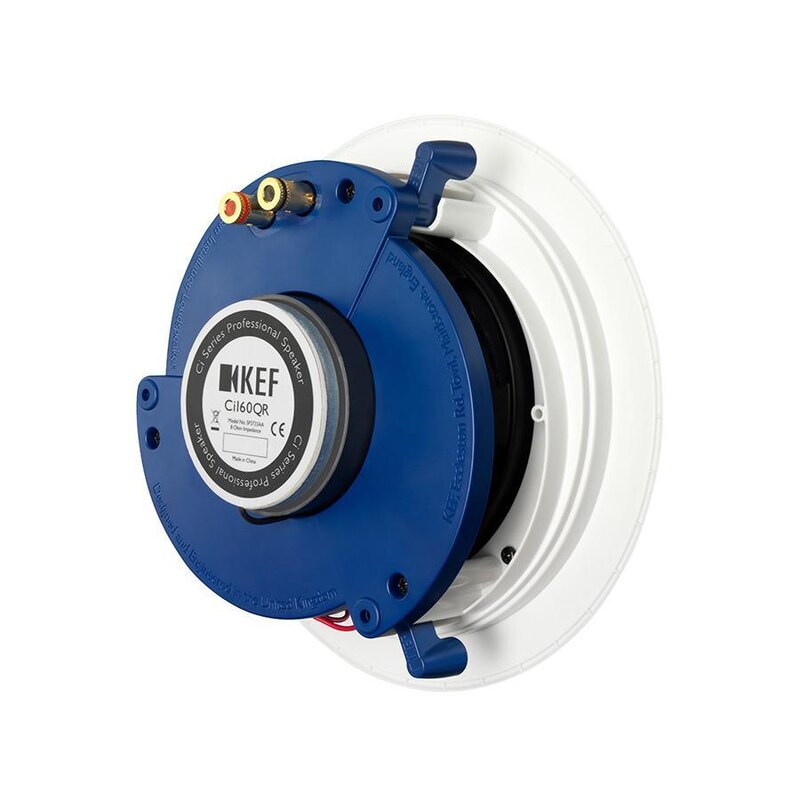

Connection is through gold plated, spring loaded binding posts. A recommended amplifier power range of 10 - 125 W is given. Further details are available through the maker's Ci software download page.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci160QR
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Frequency response
- 38Hz - 34kHz (±6dB) 2pi/open-backed
- Sensitivity
- 89dB (2.83V/ 1m)
- Crossover frequency
- 3.0kHz
- Recommended amplifier power
- 10 - 125W
Drivers
- Driver array
- 160mm (6.5in.) Uni-Q
- LF driver
- 160mm (6.5in.)
- HF driver
- 19mm (0.75in.)
- Tweeter
- 19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
Connectivity
- Terminals
- Gold plated spring loaded binding posts
Installation
- Cut-out dimensions (H x W)
- 196 mm x 196 mm (7.71 in. x 7.71 in.)
- Mounting depth from surface
- Product only: 91mm (3.58in.)
- Bezel
- UTB™ Ultra Thin Bezel
Physical
- External dimensions (H x W x D)
- 234.6 mm x 234.6 mm x 196 mm (9.24 in. x 9.24 in. x 7.71 in.)
- Net weight
- 2.05kg (4.51lbs.)
- Series
- Ci-Q Series
- Type
- In-ceiling speaker
