Ci160TS
The Ci160TS is an ultra-slim 4.5in. round architectural speaker for ceiling or wall installation, needing under 36mm of mounting depth. It suits narrow cavities such as high-rise apartments and other installs where space is tight.
- Mounting depth under 36mm
- 115mm dual-layer mid/bass + 25mm vented tweeter
- Tangerine waveguide for wide, even dispersion
- Paintable Ultra-Thin Bezel, magnetic grille
- 8 ohm, 87dB sensitivity, 10-100W amplifier
- Cut-out 194 mm x 194 mm
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci160TS, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The Ci160TS is a shallow-depth in-ceiling or in-wall speaker from KEF's Ci-T Series. It pairs a 115mm dual-layer mid/bass driver with a 25mm vented tweeter fitted with KEF's 'tangerine' waveguide, which is intended to give a natural high-frequency response and wide, even dispersion. A rigid flat diaphragm is used to keep the upper bass and midrange clean.

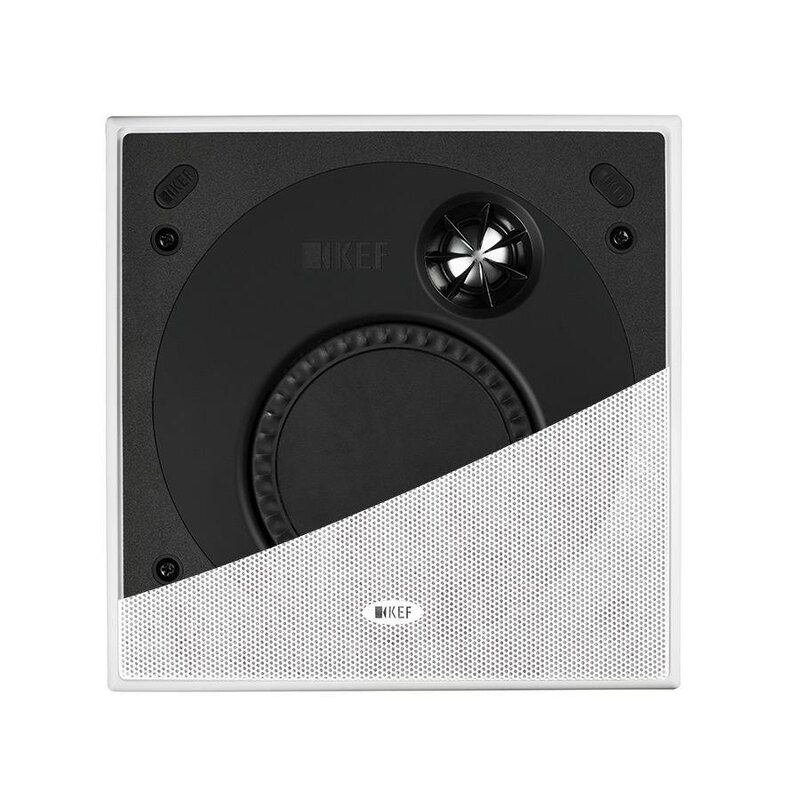

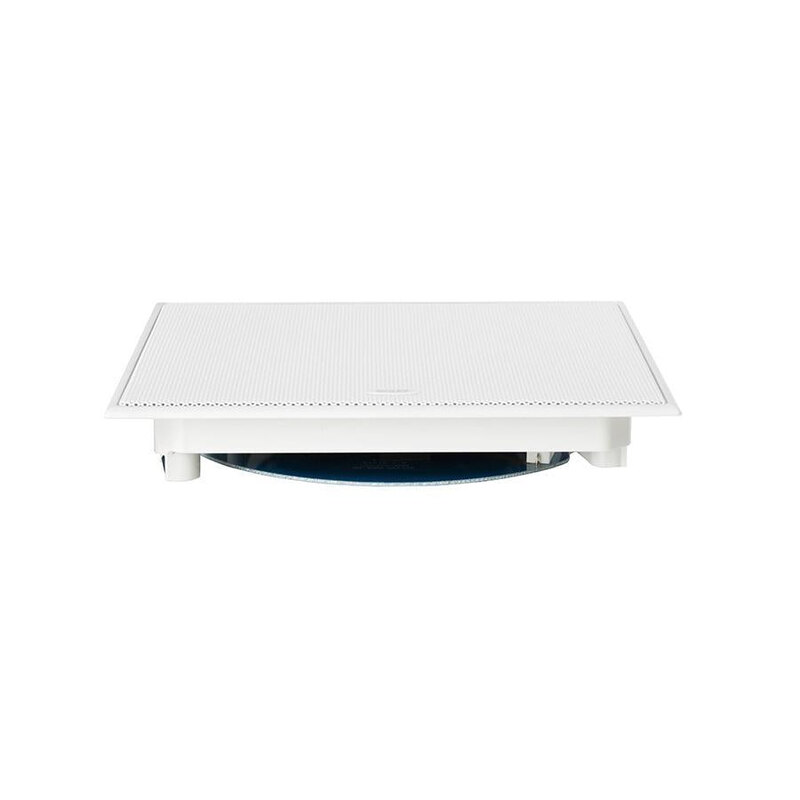

Mounting depth from the surface is under 36mm, so the speaker fits very restricted cavities such as narrow ceiling or wall spaces. It installs quickly on virtually any surface using a dogleg fixing. The Ultra-Thin Bezel is paintable and the grille is magnetic, so the speaker can be matched to the surrounding decor.
It is a passive 8 ohm speaker with 87dB sensitivity and a 1.7kHz crossover point, and it is connected to an amplifier rated for 10-100W. Cut-out size is 194 x 194mm and the speaker weighs 1.05kg.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci160TS
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Frequency response
- 110Hz - 24Hz (+/-6dB) open-backed
- Sensitivity
- 87dB (2.83V/ 1m)
- Nominal impedance
- 8 Ohm
- Crossover frequency
- 1.7kHz
- Recommended amplifier power
- 10-100W
Drive units
- LF
- 115mm (4.5in. Dual layer)
- HF
- 25mm (1in.)
- Tweeter design
- Vented tweeter with 'tangerine' waveguide
- Diaphragm
- Rigid flat diaphragm
Installation
- Cut-out dimensions (H x W)
- 194 mm x 194 mm (7.64 in. x 7.64 in.)
- Mounting depth from surface
- <36mm (1 7/16in.)
- Mounting method
- Dogleg fixing
- Bezel
- Paintable Ultra-Thin Bezel (UTB)
- Grille
- Magnetic
Physical
- Net weight
- 1.05kg (2.31lbs)
- External dimensions (H x W x D)
- 222.8 mm x 222.8 mm x 41 mm (8.77 in. x 8.77 in. x 1.61 in.)
- Series
- Ci-T Series
