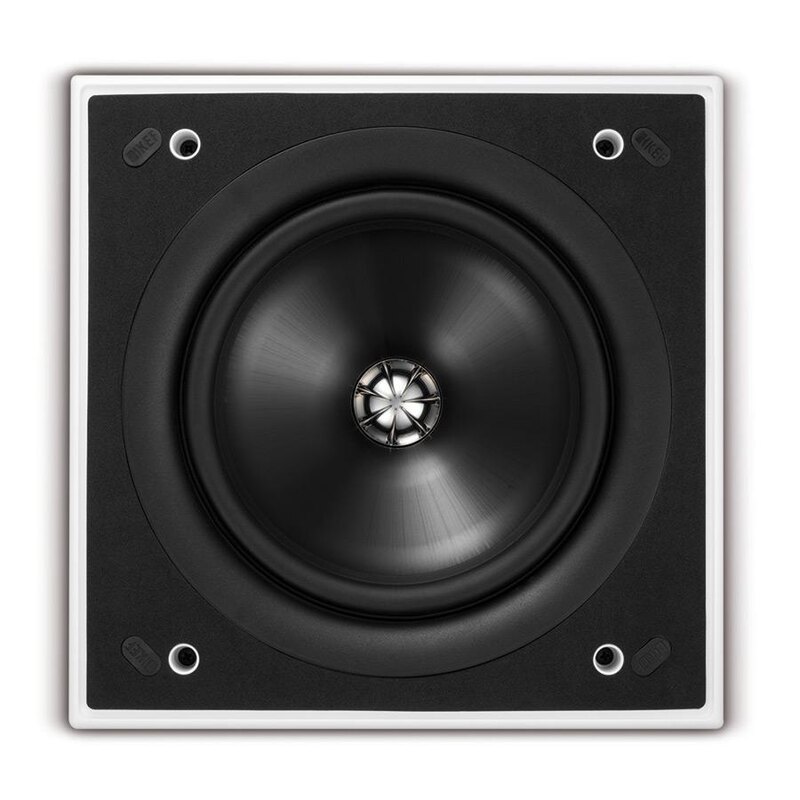

Ci200QS
In-ceiling speaker with a 200 mm (8 in.) bass/midrange driver and a 25 mm (1 in.) Uni-Q tweeter, part of KEF's Ci-Q series. Its thin bezel and narrow rim suit installers and home owners wanting a discreet wall or ceiling speaker.
- 200 mm LF driver with 25 mm Uni-Q HF driver
- Ultra Thin Bezel for a slim visible rim
- Frequency response 45Hz - 20kHz (±6dB), open-backed
- Sensitivity 90dB (2.83V/1m)
- Suits amplifiers of 10-150W
- Cut-out 238 mm x 238 mm, depth 99.8 mm
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci200QS, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

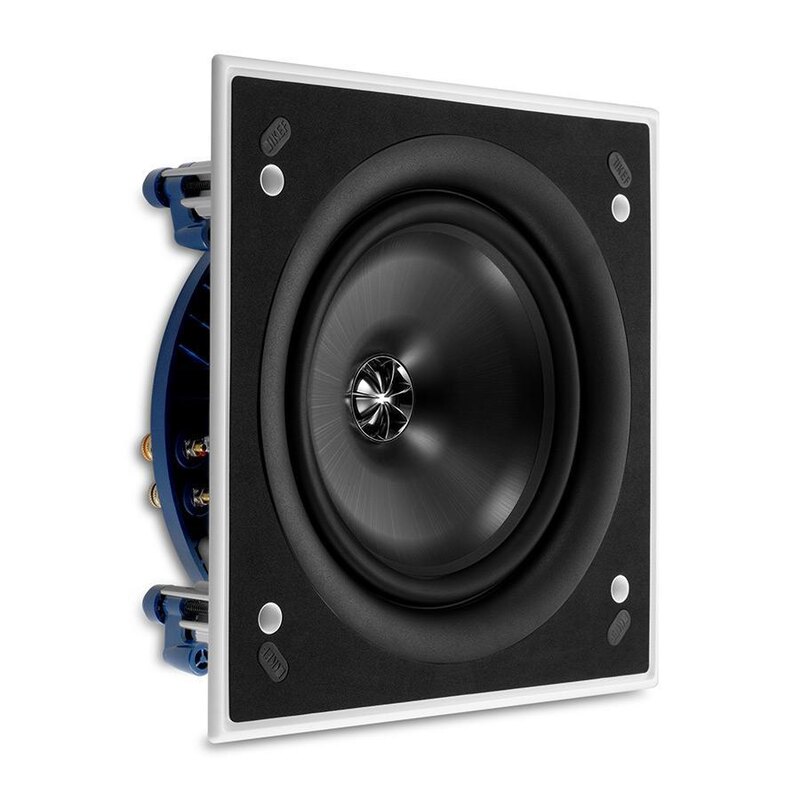

The Ci200QS is an architectural speaker designed to be built into a wall or ceiling. It uses a Uni-Q driver array, in which the tweeter sits at the acoustic centre of the bass/midrange cone so both act as a single point source. This spreads sound widely and evenly through the room, so fewer speakers may be needed to cover a space.

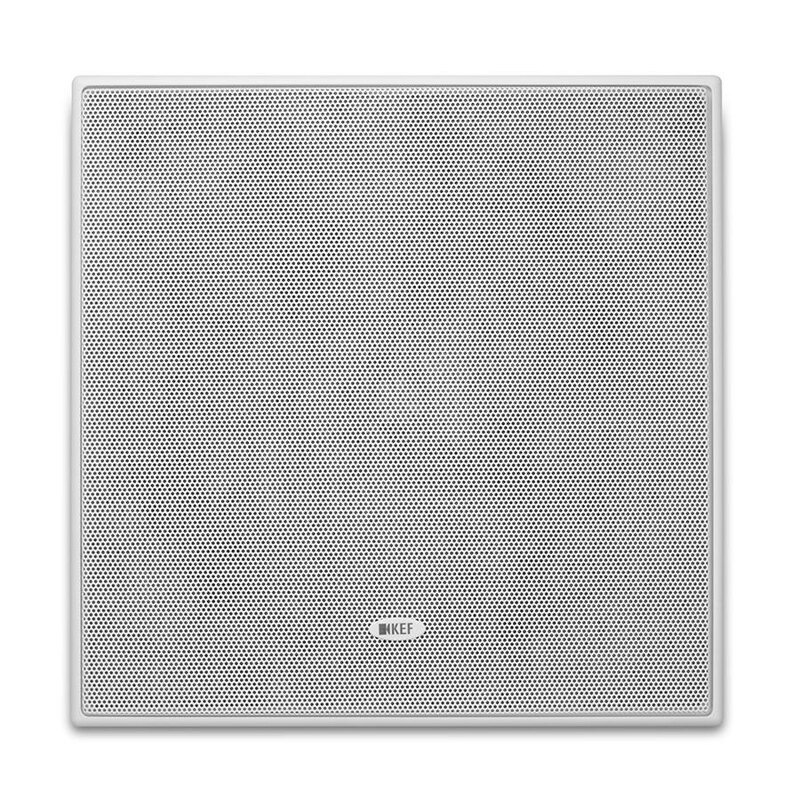

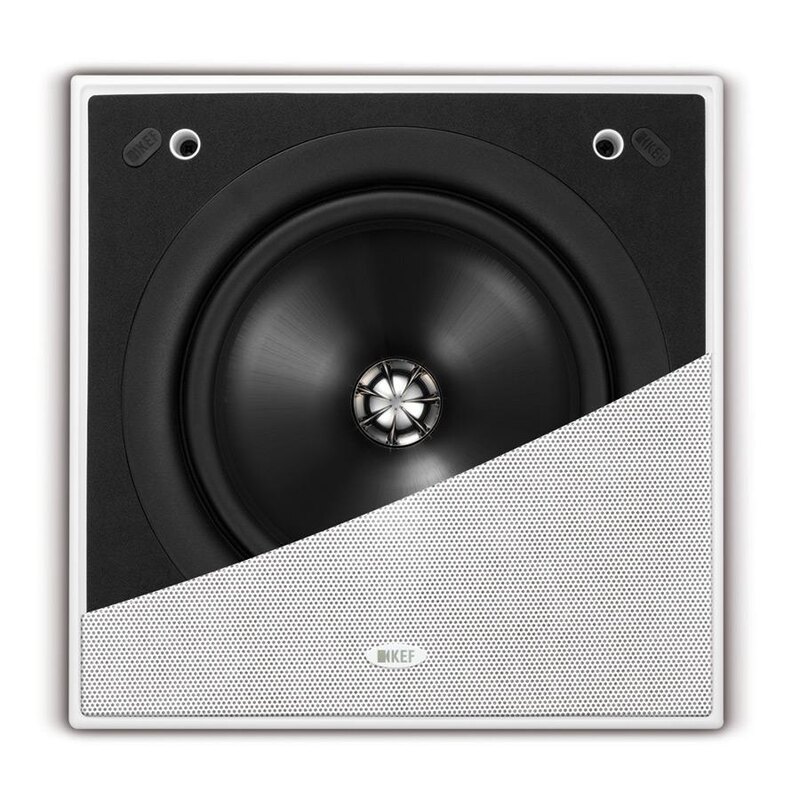

The Ultra Thin Bezel (UTB) design leaves only a very slim visible rim around the grille, which gives freedom in choosing where the speaker goes. The driver pair is a 200 mm low-frequency unit with a 25 mm Uni-Q high-frequency unit, crossed over at 2.5 kHz, with a stated response of 45 Hz to 20 kHz (±6 dB) in an open-backed installation.
It is a passive speaker driven by an external amplifier rated for 10 to 150 W. It needs a 238 x 238 mm cut-out and 99.8 mm of mounting depth from the surface. Further details are available through KEF's Ci software download page.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci200QS
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Frequency response
- 45Hz - 20kHz (±6dB) open-backed
- Sensitivity
- 90dB (2.83V/ 1m)
- Crossover frequency
- 2.5kHz
- Recommended amplifier power
- 10-150W
Drivers
- LF driver
- 200mm (8in.)
- HF driver
- 25mm (1in.) Uni-Q
- Driver technology
- Uni-Q driver array
- Bezel design
- Ultra Thin Bezel (UTB)
Installation
- Cut-out dimensions (H x W)
- 238 mm x 238 mm (9.37 in. x 9.37 in.)
- Mounting depth from surface
- 99.8mm (3.93in.)
- Series
- Ci-Q Series
Physical
- External dimensions (H x W x D)
- 273 mm x 273 mm x 106 mm (10.75 in. x 10.75 in. x 4.17 in.)
- Net weight
- 2.4kg (5.3lbs.)
- Product type
- Architectural speaker
