Ci3160RLM-THX
In-wall architectural speaker with a 12th-generation Uni-Q driver array using Metamaterial Absorption Technology and two 6.5-inch hybrid aluminium bass drivers. THX Certified Ultra, aimed at home theatres and large living rooms.
- THX Certified Ultra in-wall speaker
- 12th-gen Uni-Q with Metamaterial Absorption Technology
- Two 6.5" hybrid aluminium bass drivers
- Frequency response 43Hz - 28kHz (±6 dB)
- Sensitivity 89dB, 4Ω nominal impedance

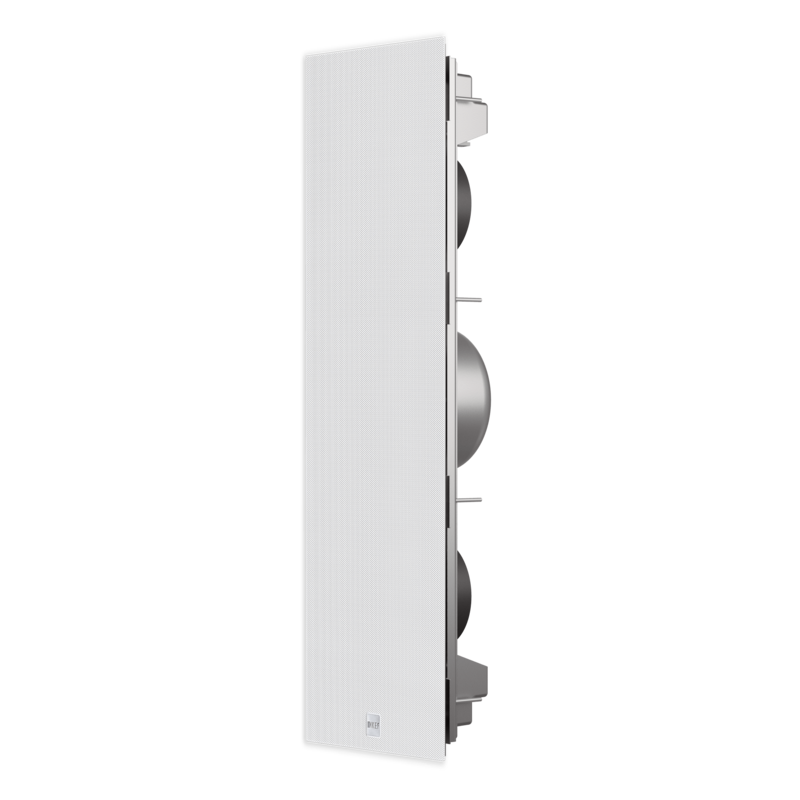

- Paintable magnetic metal grille included
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci3160RLM-THX, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

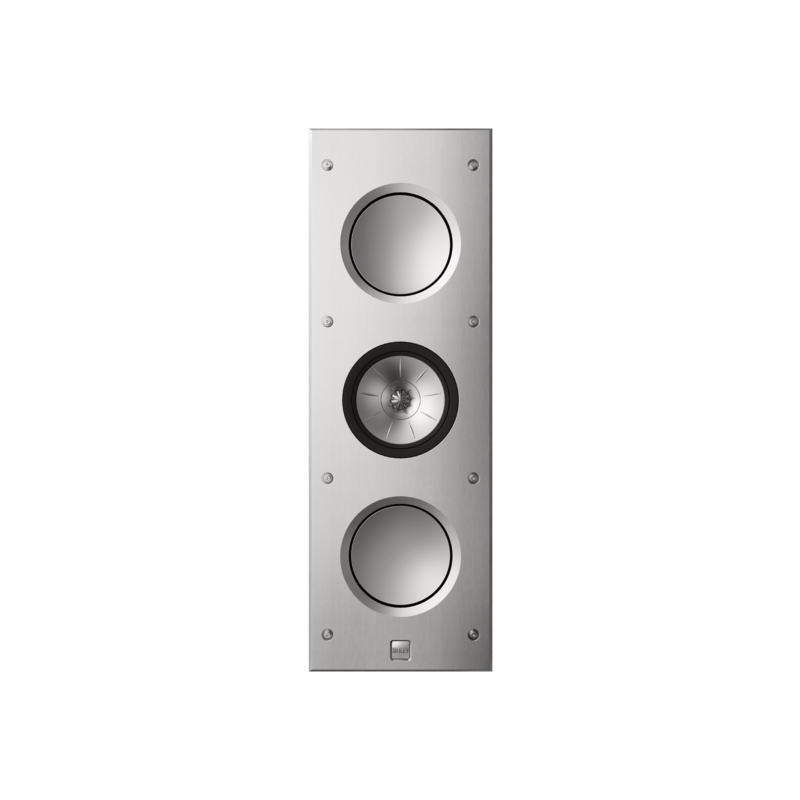

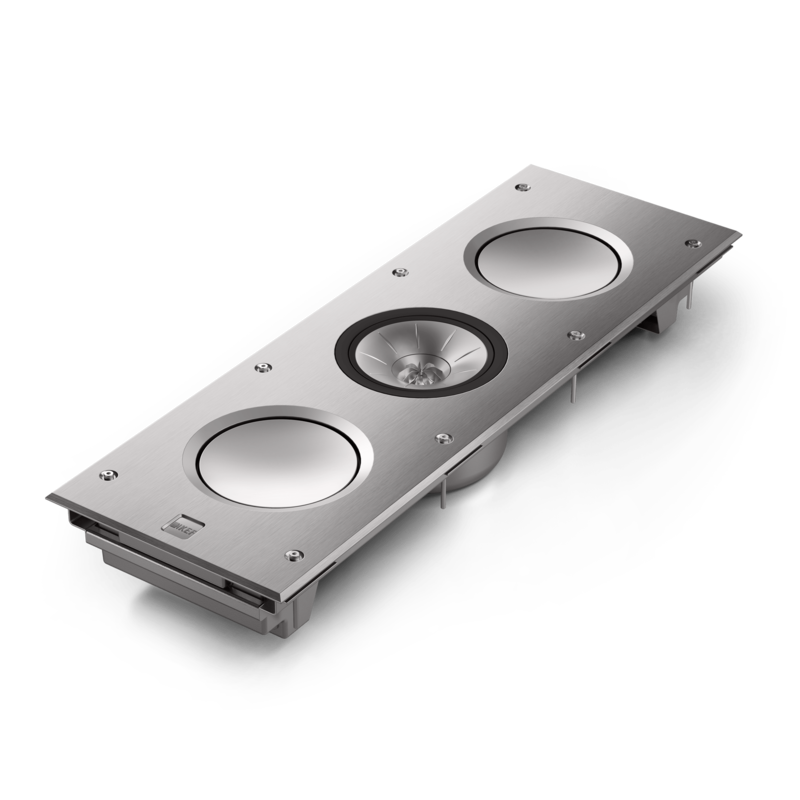

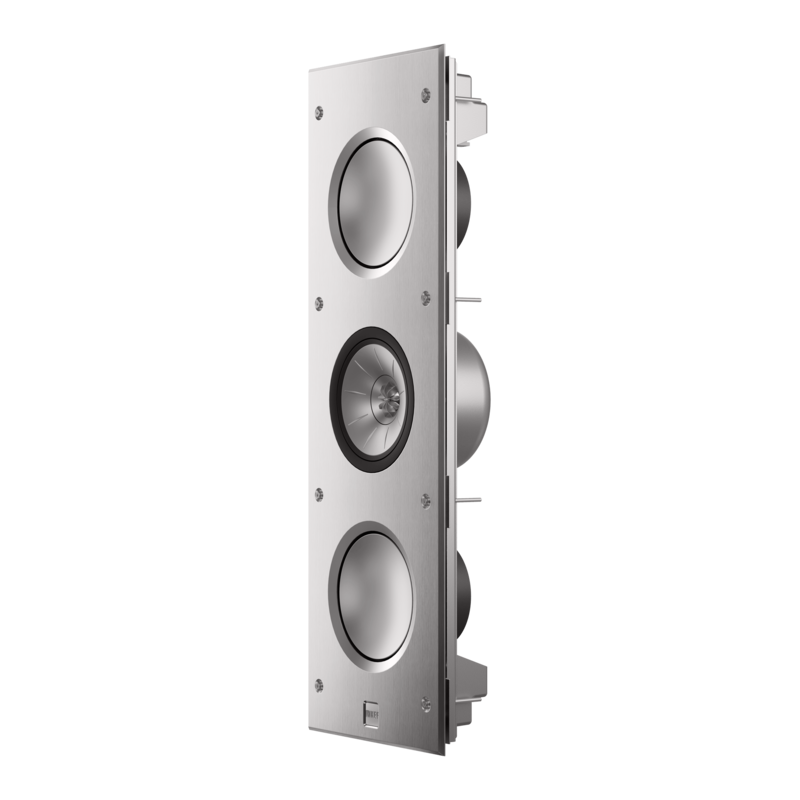

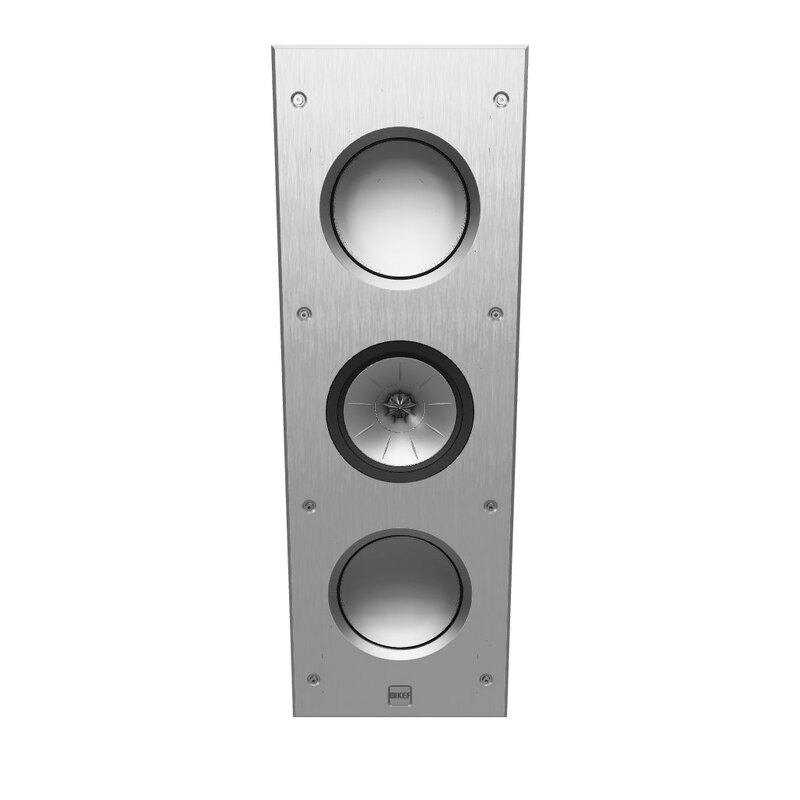

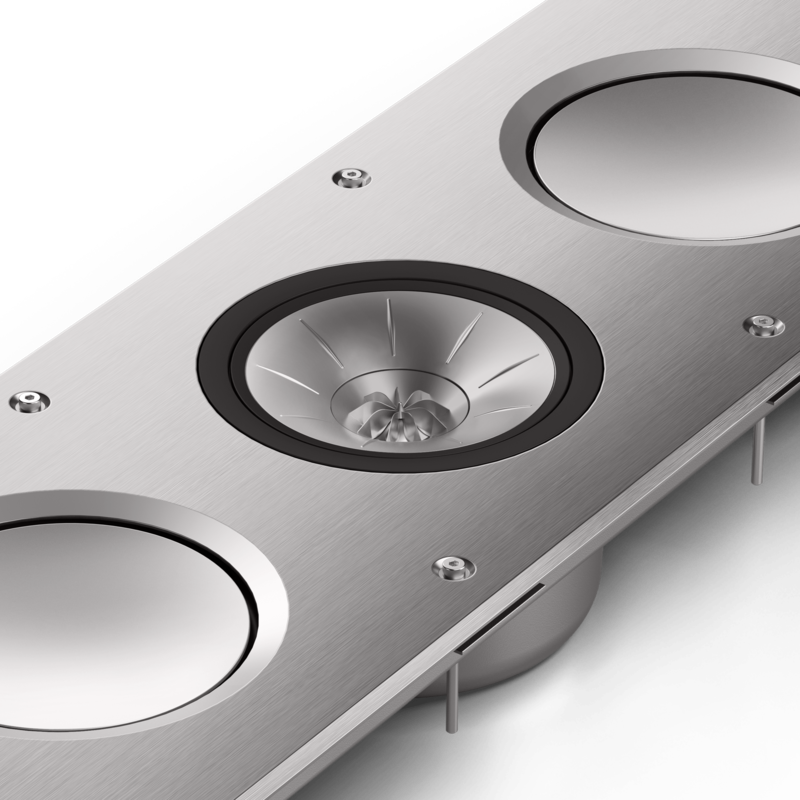

The Ci3160RLM-THX is a flush-mounted speaker from KEF's R Series architectural range. It combines a 6.5-inch Uni-Q midrange driver with a 1-inch vented aluminium tweeter dome, and the Metamaterial Absorption Technology (MAT) system, which is described as absorbing 99% of unwanted sound from the tweeter. Two further 6.5-inch hybrid aluminium drivers handle the low end. The speaker is THX Certified Ultra.
The front baffle is a precision-machined aluminium plate 5.5 mm thick, intended to limit vibration. The Uni-Q array acts as a single point source and gives a nominal coverage of 150°, widening the listening area. The crossover points are 640 Hz and 2.6 kHz, and the recommended amplifier power is 50 to 350 W into 4 Ω.
Installation is into a 660 x 209 mm cut-out in surfaces 6 to 40 mm thick, with a mounting depth of 99 mm. A paintable magnetic metal grille is included, and an optional black cloth grille is available. The finish is Aluminium Silver, with tone-matched Uni-Q and bass drivers. Connection is by standard speaker cable from an external amplifier.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci3160RLM-THX
- Catégorie
- Sonorisation live › Autre matériel live
Audio
- Series
- R Series
- Frequency response
- 43Hz - 28kHz (±6 dB) open-backed
- Frequency range
- 33Hz - 45kHz (-10 dB)
- Sensitivity
- 89dB (2.83V/1m)
- Nominal impedance
- 4Ω
- Nominal coverage
- 150°
- Maximum SPL measured at 1m
- 110 dB
- Crossover frequency
- 640Hz, 2.6kHz
- Recommended amplifier power
- 50 - 350 W
Drivers
- LF
- 2 x 160mm (6.5in.)
- MF
- 160mm (6.5in.) Uni-Q
- HF
- 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Installation
- Cut-out dimensions (H x W)
- 660 mm x 209 mm (25.98 in. x 8.23 in.)
- Mounting depth from surface
- 99mm (3.9in.)
- Mounting thickness
- Maximum: 40 mm (1.58 in.), Minimum: 6 mm (0.24 in.)
- Ideal rear volume
- 60 L
- Minimum rear volume
- 30 L
Physical
- External dimensions (H x W x D)
- 680 mm x 230 mm x 105.7 mm (26.77 in. x 9.06 in. x 4.16 in.)
- Net weight
- 12 kg (26.4 lbs.)
- Finish
- Aluminium Silver
- Baffle
- 5.5 mm precision-machined aluminium
- Certification
- THX Certified Ultra
In the box
- Speaker
- 1
- Metal grille
- 1
- Cutout template
- 1
- Gasket
- 4
- Hex drill tool
- 1
- Wall protection tape
- 3
- Documentation
- Warranty booklet, manual
