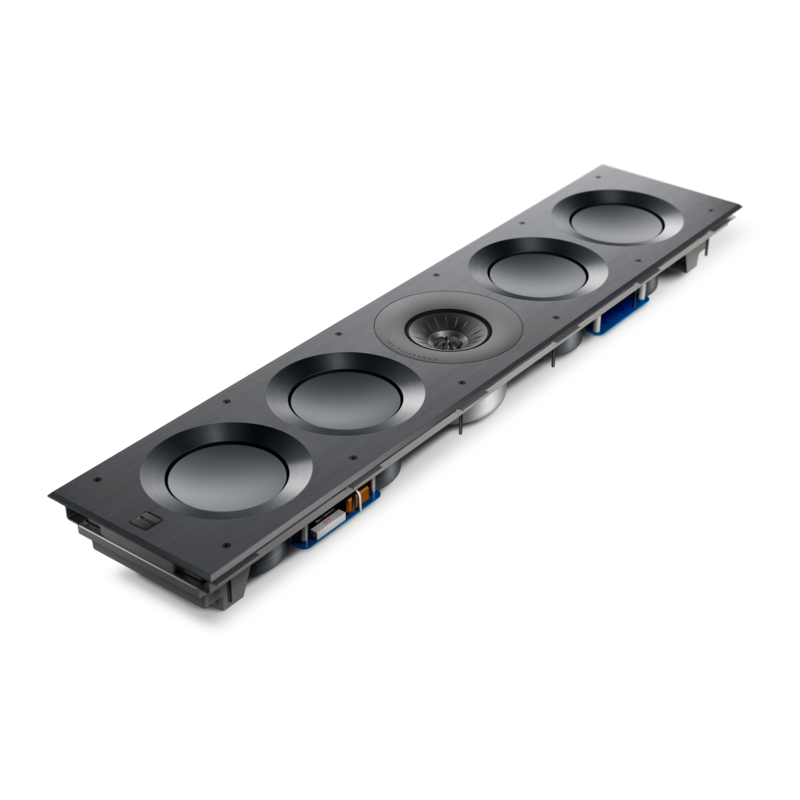

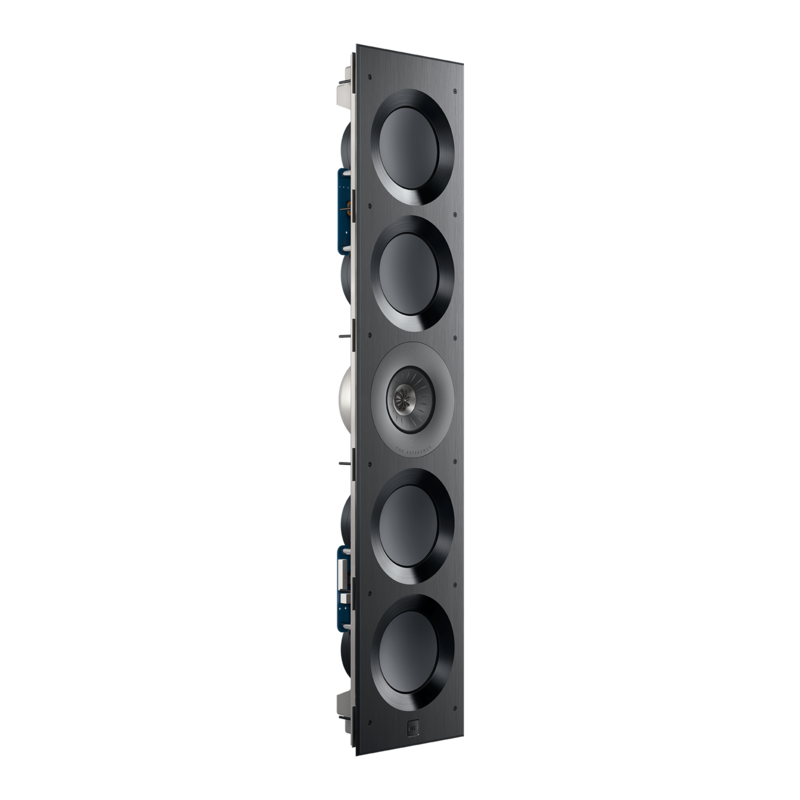

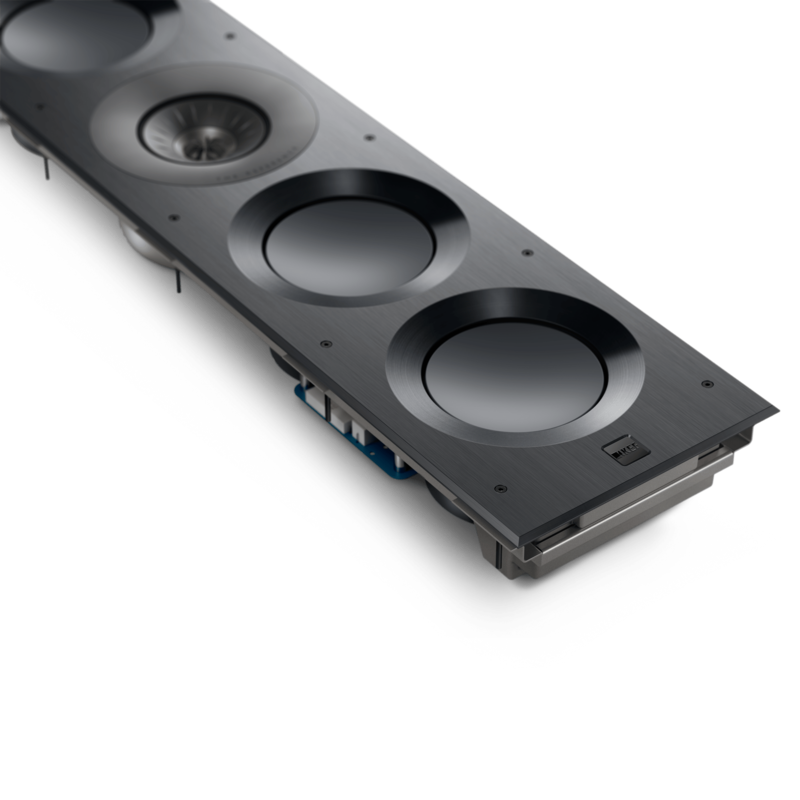

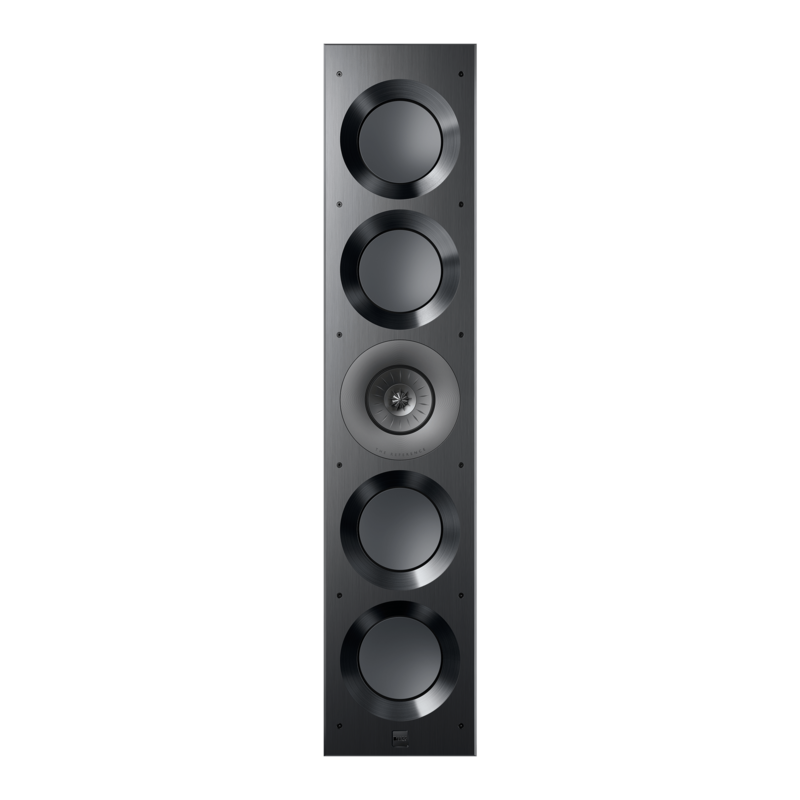

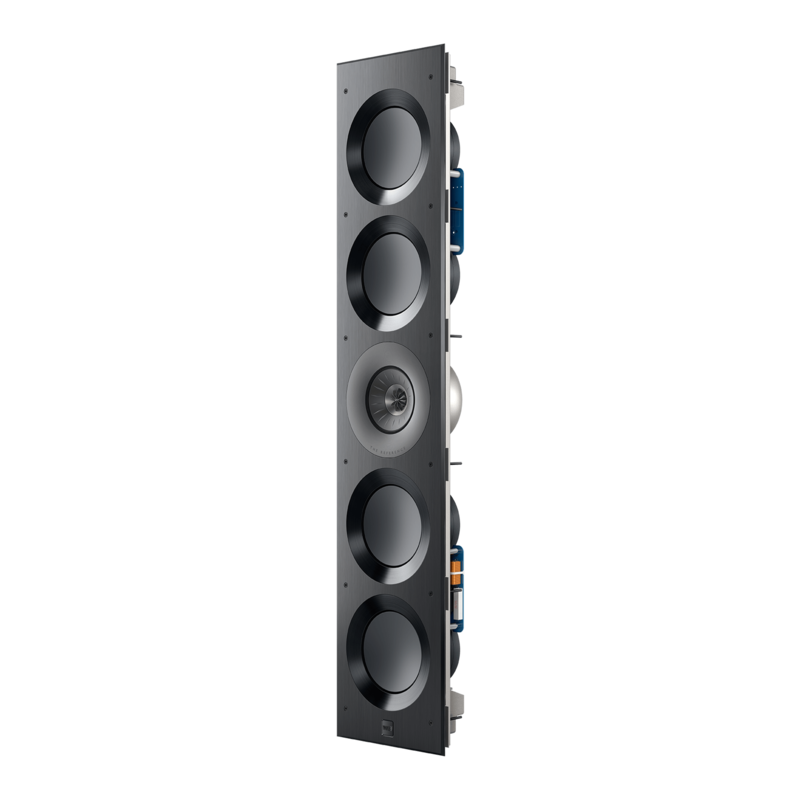

Ci5160REFM-THX
In-wall architectural loudspeaker from KEF's Ci-Reference line, THX Certified Dominus, with four 160mm bass drivers and a 12th-generation Uni-Q array. Intended for large home theatres and living rooms where the speaker needs to be built into the wall.
- THX Certified Dominus in-wall speaker
- 4 x 160mm bass drivers plus 125mm Uni-Q midrange
- Metamaterial Absorption Technology on the tweeter
- Frequency range 32 - 45kHz (-10 dB)
- Sensitivity 92dB, nominal impedance 4Ω
- Hand-built in Maidstone, UK
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci5160REFM-THX, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

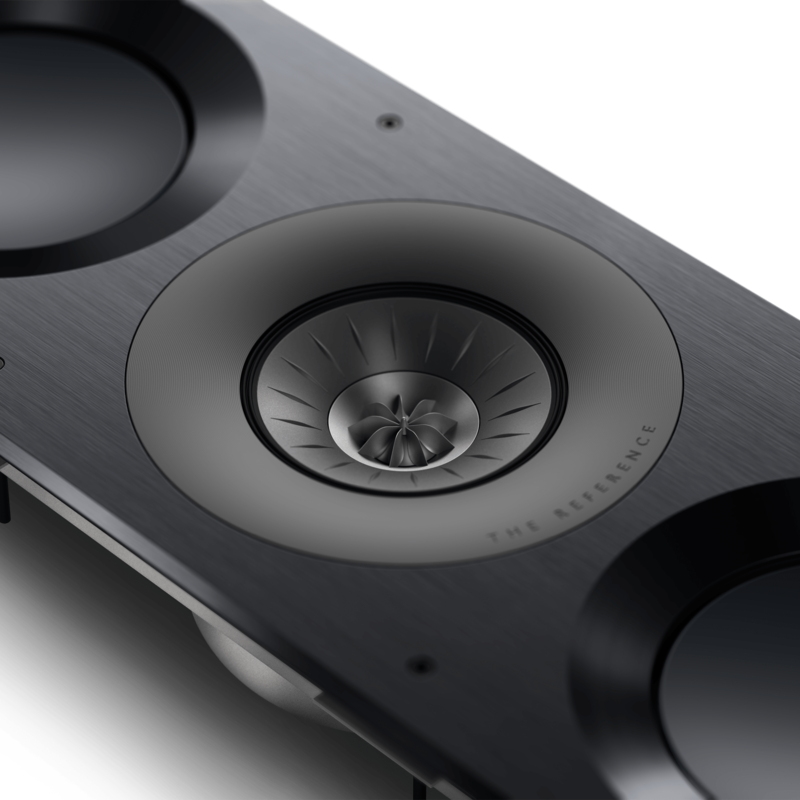

The Ci5160REFM-THX is an in-wall speaker in KEF's Ci-Reference range and the company's first in-wall model to reach THX Certified Dominus, the largest THX performance class. It combines a Uni-Q driver array, in which the mid and high frequency units share one axis, with Metamaterial Absorption Technology on the tweeter to absorb unwanted sound.
Low frequencies come from four 160mm (6.5in.) drivers working with a vented motor system designed for in-wall use. The tweeter is a 25mm vented aluminium dome and the midrange unit is 125mm (5.25in.). The 11mm precision-machined aluminium baffle is finished in hairline black with a grey Uni-Q array. A paintable magnetic metal grille is fitted and an optional black cloth grille is available. The speaker is designed and hand-built in Maidstone, UK.
Installation is into a wall cut-out of 1052 mm x 209 mm, with 99mm mounting depth and a recommended rear volume of 90 litres (minimum 40 litres). It is a passive 4Ω speaker that needs an external amplifier rated 50 - 500 W.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci5160REFM-THX
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Frequency response
- 40 - 28kHz (±6 dB) open-backed
- Frequency range
- 32 - 45kHz (-10 dB)
- Sensitivity
- 92dB (2.83V/1m)
- Nominal impedance
- 4Ω
- Nominal coverage
- 150°
- Maximum SPL measured at 1m
- 116 dB
- Crossover frequency
- 600Hz, 3000Hz
- Recommended amplifier power
- 50 - 500 W
Drivers
- LF
- 4 x 160mm (6.5in.)
- MF
- 125mm (5.25in.) Uni-Q
- HF
- 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Installation
- Cut-out dimensions (H x W)
- 1052 mm x 209 mm (41.42 in. x 8.23 in.)
- Mounting depth from surface
- 99mm (3.9in.)
- Ideal rear volume
- 90 L
- Minimum rear volume
- 40 L
Physical
- External dimensions (H x W x D)
- 1070 mm x 230 mm x 105.7 mm (42.13 in. x 9.06 in. x 4.16 in.)
- Net weight
- 21.7kg (47.8lbs.)
- Baffle
- 11mm thick precision-machined aluminium
- Finish
- Aluminium Black/Grey
- Grille
- Paintable magnetic metal grille; optional black cloth grille
Certification
- Certification
- THX Certified Dominus
