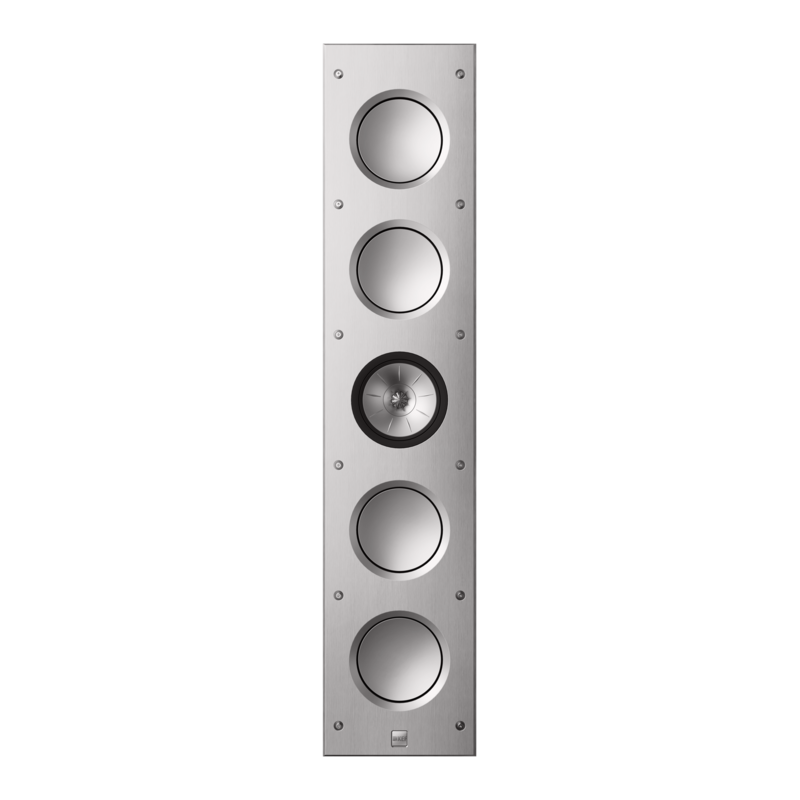

Ci5160RLM-THX
In-wall architectural speaker with a 12th-generation Uni-Q driver array, Metamaterial Absorption Technology and four 6.5-inch bass drivers. THX Certified Ultra, aimed at large home theatres and living rooms.
- In-wall speaker from KEF's R Series architectural range
- 12th-generation Uni-Q array with Metamaterial Absorption Technology
- Four 6.5in hybrid aluminium bass drivers
- THX Certified Ultra
- 5.5 mm precision-machined aluminium baffle
- Paintable magnetic metal grille; optional black cloth grille
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Ci5160RLM-THX, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

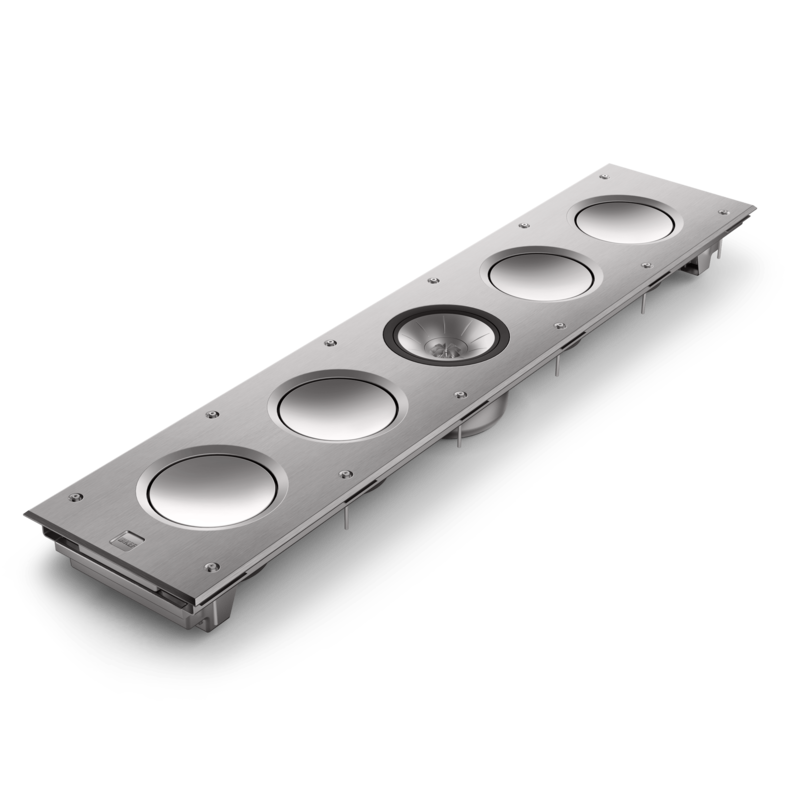

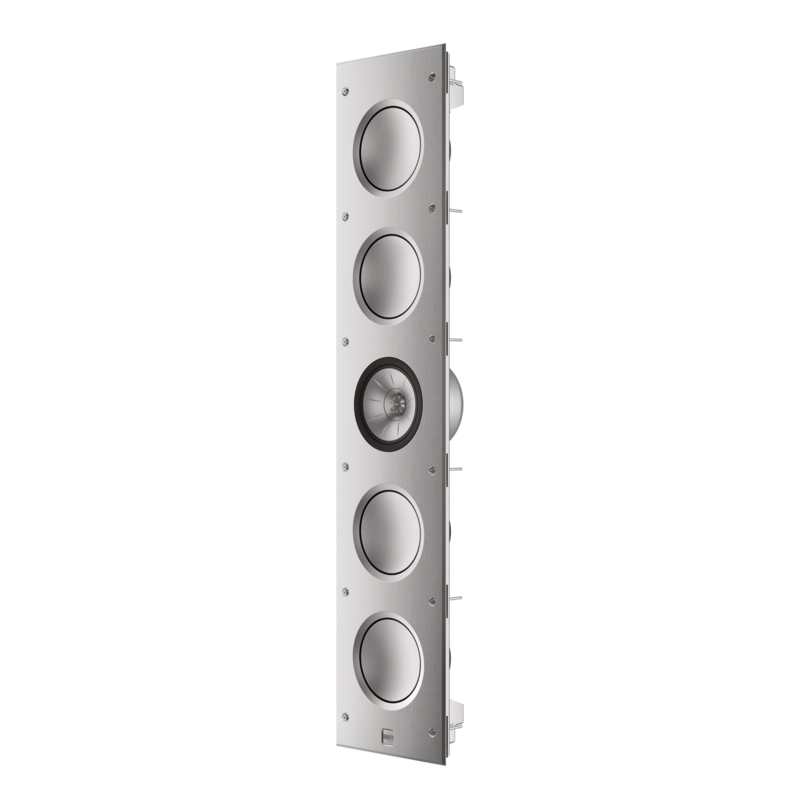

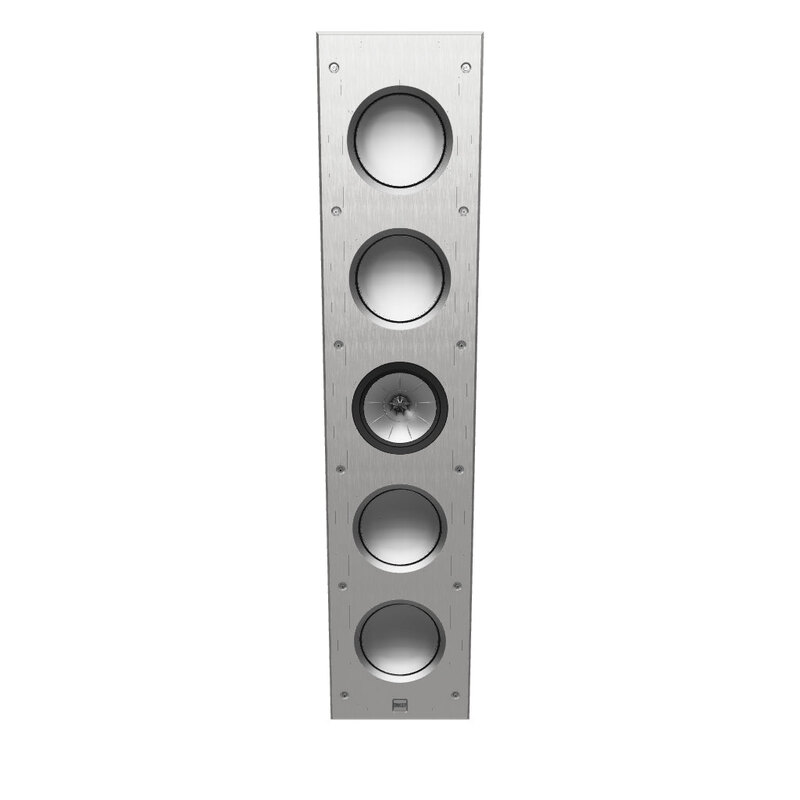

The Ci5160RLM-THX is a flush-mounted speaker from KEF's R Series architectural range. It combines a 6.5-inch Uni-Q mid/high driver with a 25 mm vented aluminium dome tweeter that uses Metamaterial Absorption Technology (MAT), developed jointly with Acoustic Metamaterials Group. Four 6.5-inch hybrid aluminium bass drivers handle the low end, and the unit carries THX Certified Ultra certification.

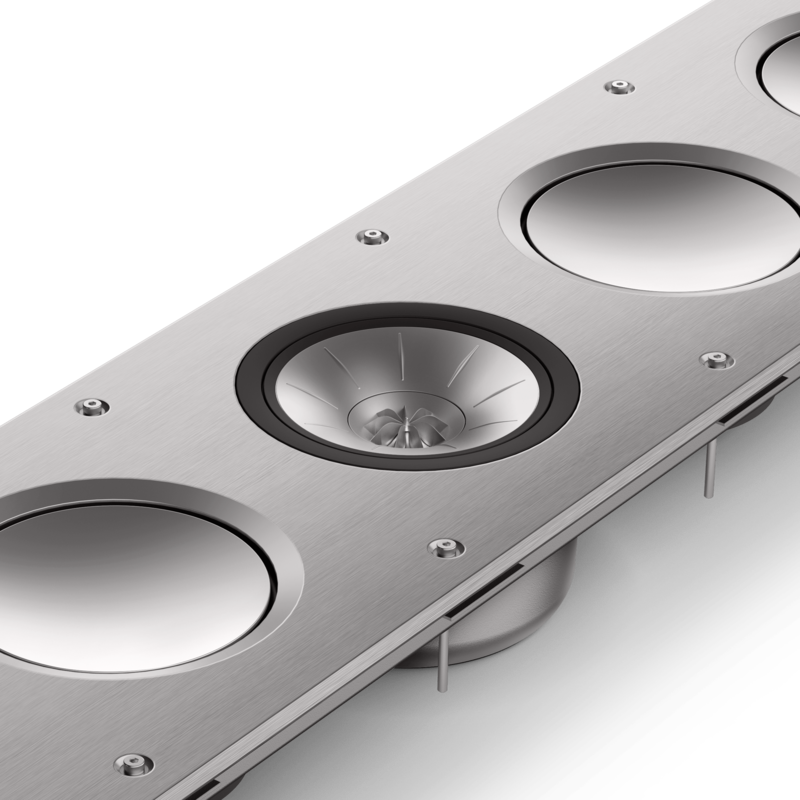

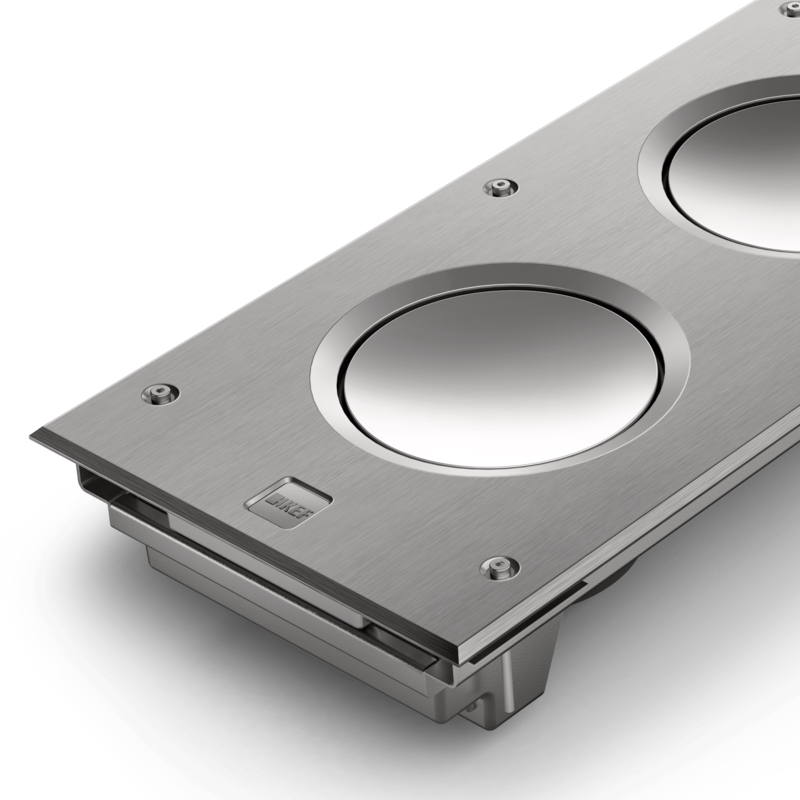

The Uni-Q array works as a single point source, which widens the listening area and spreads sound more evenly. The baffle is 5.5 mm precision-machined aluminium, designed to damp vibration. Finish is Aluminium Silver, with the Uni-Q and bass drivers colour-matched to it.
The speaker is a passive model and needs an external amplifier rated at 50–350 W. It installs into a wall cut-out with a supplied template and gasket. A paintable magnetic metal grille is included, and an optional black cloth grille is available, so the speaker can blend into the room.
Vidéo
Spécifications
- Marque
- KEF
- Modèle
- Ci5160RLM-THX
- Catégorie
- Hi-Fi et audio maison › Enceintes
Audio
- Series
- R Series
- Frequency response
- 40 - 28kHz (±6 dB) open-backed
- Frequency range
- 32 - 45kHz (-10 dB)
- Sensitivity
- 89dB (2.83V/1m)
- Nominal impedance
- 4Ω
- Nominal coverage
- 150°
- Maximum SPL measured at 1m
- 110 dB
- Crossover frequency
- 640Hz, 2.6kHz
- Certification
- THX® Certified Ultra
Drivers
- LF
- 4 x 160mm (6.5in.)
- MF
- 160mm (6.5in.) Uni-Q
- HF
- 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Power
- Recommended amplifier power
- 50 - 350 W
Installation
- Cut-out dimensions (H x W)
- 1052 mm x 209 mm (41.42 in. x 8.23 in.)
- Mounting depth from surface
- 99mm (3.9in.)
- Ideal rear volume
- 90 L
- Minimum rear volume
- 40 L
Physical
- External dimensions (H x W x D)
- 1070 mm x 230 mm x 105.7 mm (42.13 in. x 9.06 in. x 4.16 in.)
- Net weight
- 18.7kg (41.1lbs.)
- Finish
- Aluminium Silver
In the box
- Contents
- Ci5160RLM-THX x 1, metal grille x 1, cutout template x 1, gasket x 4, hex drill tool x 1, wall protection tape x 3, warranty booklet, manual
