KH 805
Active studio subwoofer with a 10-inch driver and a bypassable 2.0/0.1 bass manager built around an 80 Hz fourth-order crossover. It is the stereo-oriented sibling of the KH 810, meant to extend Neumann KH monitors in music, broadcast and post-production rooms.
- 10" (265 mm) shielded driver, 200 W woofer amplifier
- Free-field response 18–300 Hz (±3 dB)
- 110.7 dB SPL max at 3% THD, 1 m, half space
- Bypassable 80 Hz, 4th-order bass manager
- Four LFE routing modes incl. daisy chain for arrays
- XLR balanced I/O with ground lift
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un KH 805, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

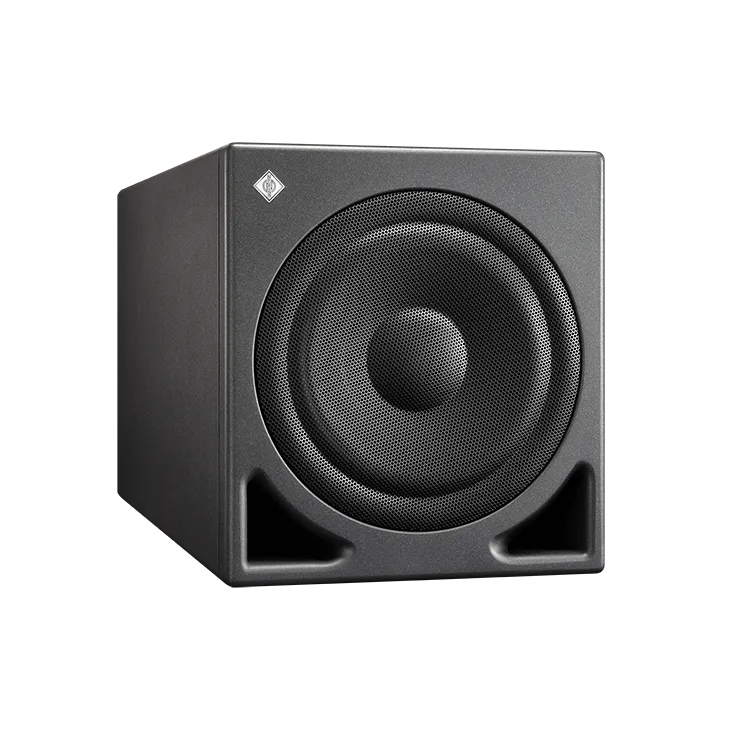

The KH 805 AG is a wooden-cabinet active subwoofer with a 265 mm (10") magnetically shielded long-throw driver, two large bass reflex ports and a 200 W woofer amplifier. Its free-field response runs 18–300 Hz (±3 dB), and it reaches 110.7 dB SPL at 3% THD in half space. It can raise the maximum level of the main monitors by up to 8 dB and lower their distortion.

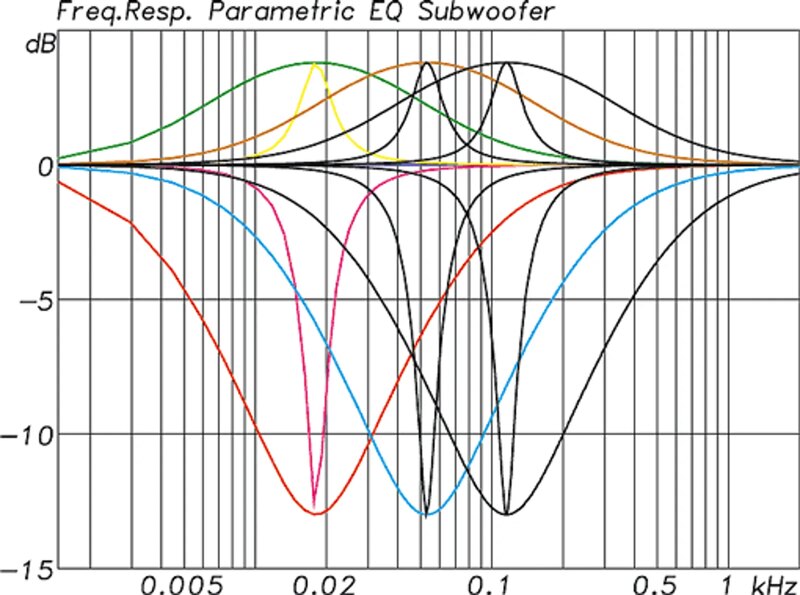

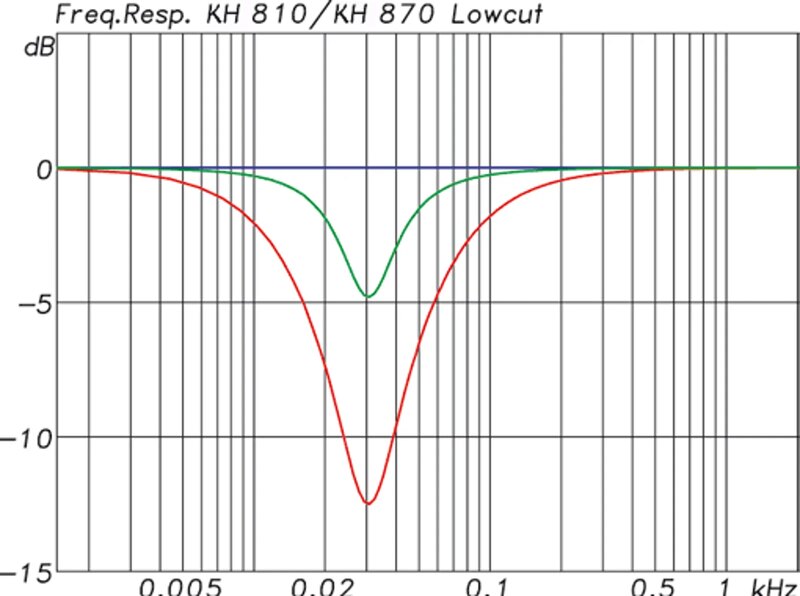

A bypassable bass manager with an 80 Hz, 24 dB/oct crossover handles stereo and externally bass-managed setups. Four routing modes are available: right channel bass management, LFE to the subwoofer only up to 120 Hz, a wide mode for multichannel systems that manage bass in the source, and a daisy-chain mode for subwoofer arrays. Management can be switched remotely with a foot switch. Acoustic adjustment comes from input gain, output level, an 8-position phase control, a continuous low cut and a bypassable parametric EQ.
Connections are electronically balanced XLR inputs and outputs, including a daisy-chain output, plus a ground lift. The universal switched-mode power supply covers 100–240 V. The electronics can be remoted with the optional REK 3 kit, and protection comes from peak and thermal limiters, soft clip and excursion limiting.
Spécifications
- Marque
- Neumann
- Modèle
- KH 805
- Catégorie
- Studio › Enceintes de monitoring
Inputs
- Analog inputs
- 2 x XLR: analog electronically balanced
- Input impedance
- >13k Ohms
- Max. input level
- +24 dBu
- CMRR
- > 56 dB @ 15 kHz
- Input gain control (sensitivity)
- +2 ... -12 dB
Outputs
- Output level control (1 m, 0 dBu input)
- 100; 114 dB SPL
- Woofer amplifier output power (10% THD+N, limiter off)
- 200 W
- Woofer amplifier output power (0.1% THD+N, limiter off)
- 160 W
Audio
- Free field frequency response ±6 dB
- 17 … 600 Hz
- Free field frequency response ±3 dB
- 18 … 300 Hz
- Bass extension (-6 dB)
- 17 Hz

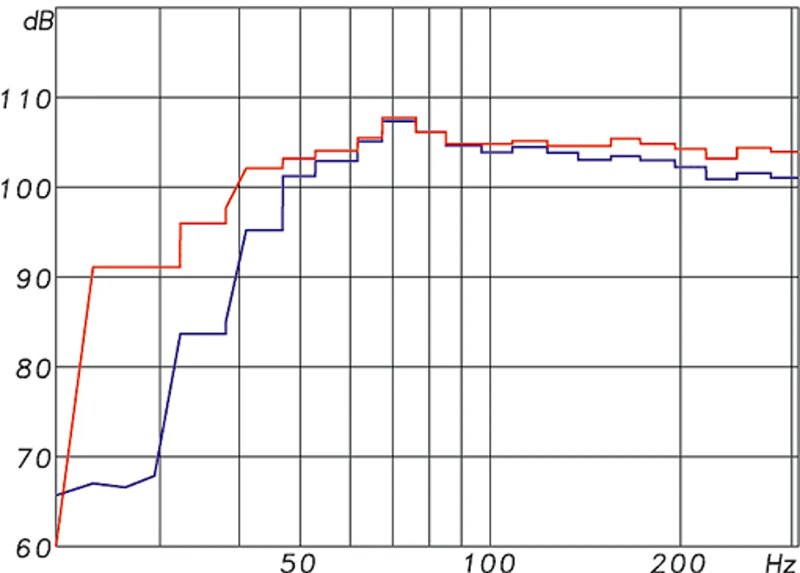

- Max. SPL in half space at 3% THD, 1 m (50–100 Hz avg.)
- 110.7 dB SPL
- Maximum output level
- 116.7 dB SPL
- Sine wave output, THD < 0.5% at 1 m in half space
- 95 dB SPL (>45 Hz)
- Max. long term SPL, pink noise at 2.3 m (single / pair)
- 112 dB SPL
- Self-generated noise at 10 cm
- <20 dB(A) SPL
- Crossover frequency
- 80 Hz
- Crossover slope
- 24 dB/oct; 4th order
- Infrasonic filter
- 6.5 Hz; 12 dB/oct.
- Max. listening distance
- up to 6 m
- Woofer
- 265 mm (10") with magnetic shielding and black metal grille
Connectivity
- Remote control
- Bass management on/off via standard foot switch (optional) on 6.3 mm jack
- Volume control
- NRC 1 hardware remote or RS-232
Power
- Mains voltage; frequency
- 220-240 / 100-120 V (switchable); 50/60 Hz
- Power consumption, full output
- 280 W
- Power consumption, idle
- 14 W
Physical
- Dimensions (H x W x D)
- 360 x 330 x 645 mm (14.2" x 13" x 25.4")
- Weight
- 26 kg (57 lbs 5 oz)
- Cabinet material
- Wood cabinet, aluminum electronics panel
- Finish
- Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
- External net volume
- 76.6 liters
- Packed dimensions (H x W x D)
- 515 x 490 x 750 mm (20 1/4" x 19 1/4" x 29 1/2")
- Packed weight
- 32.0 kg (70 lbs 9 oz)
In the box
- Contents
- 1 x KH 805 Subwoofer, 3 x Mains cables (European, UK and US), 1 x Operating manual, 1 x Supplement "Getting Started Quickly"
