KM 183
The KM 183 is a small diaphragm condenser microphone with an omnidirectional pressure-transducer capsule, equalized for a flat diffuse-field response. It suits studio, stage, TV and radio work on acoustic instruments, drums, choir, organ and stereo or surround setups.
- Omnidirectional pressure transducer, diffuse-field equalized
- Self-noise 13 dB-A; S/N ratio 81 dB (A-weighted)
- Max SPL 140 dB for 0.5% THD
- Sensitivity 12 mV/Pa ± 1 dB into 1 kΩ
- Transformerless output; cable runs up to 300 m
- Nickel or black (mt); single or stereo set
Photos
5Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un KM 183, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

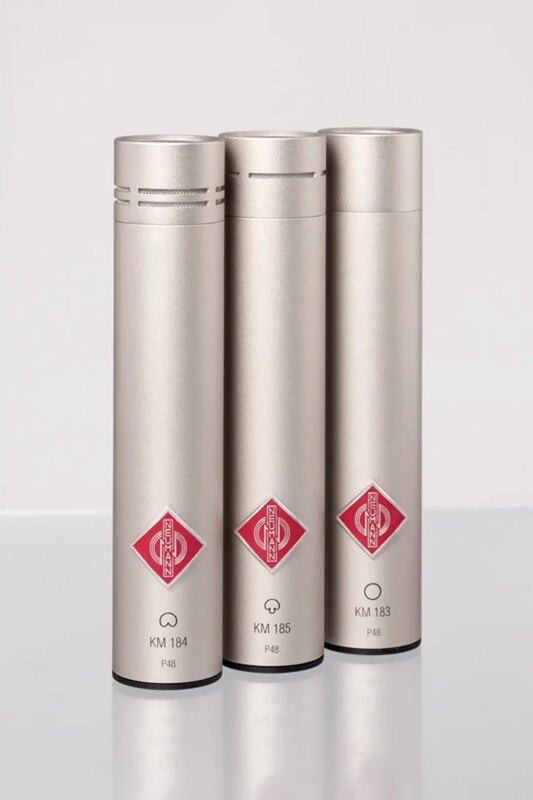

The KM 183 is the omnidirectional member of Neumann's non-modular Series 180, alongside the cardioid KM 184 and hypercardioid KM 185. It uses a pressure-transducer capsule with a uniform, largely frequency-independent pattern, so off-axis sound keeps its tonal balance. That helps in multi-microphone, stereo and surround setups. The capsule is equalized flat in the diffuse field. Close to a source in the free field, it has a treble lift of about 7 dB at 10 kHz.
The transformerless head amplifier gives a dynamic range of 127 dB, with 13 dB-A equivalent noise and a maximum SPL of 140 dB at 0.5% THD. As a pressure transducer it has no low-frequency roll-off, which suits orchestra and church organ recording. The low-impedance output can drive cable runs of up to 300 m (1000 ft). The body is 22 mm in diameter and 107 mm long, so it is visually discreet for TV and radio use.

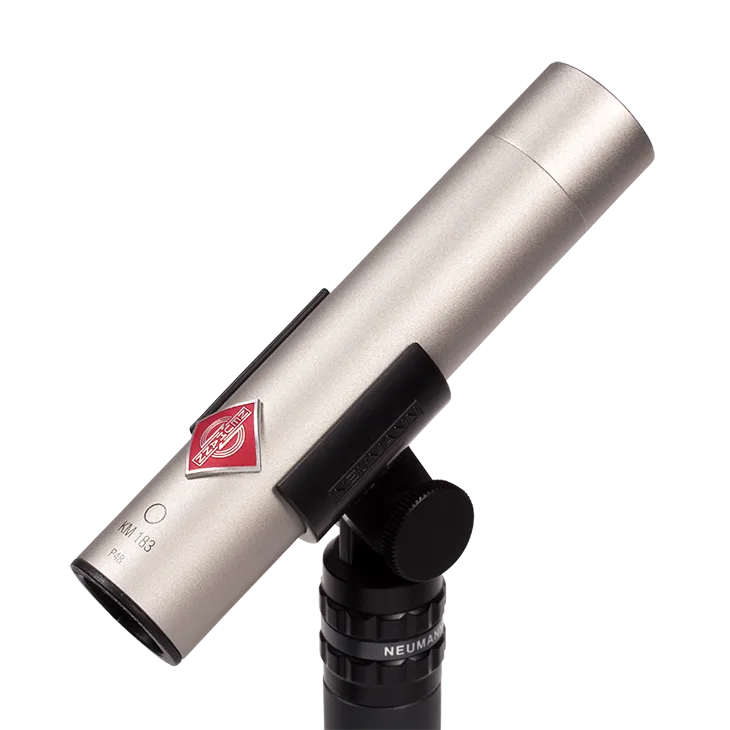

It connects over a 3-pin XLR and takes 48 V phantom power (P48). It comes in nickel (KM 183) or black (KM 183 mt), as a single microphone or a stereo set. Each microphone ships with a WNS 100 windscreen and an SG 21 bk stand mount swivel.
Vidéo
Spécifications
- Marque
- Neumann
- Modèle
- KM 183
- Catégorie
- Studio › Microphones
Audio
- Acoustical operating principle
- Pressure transducer
- Directional pattern
- Omnidirectional
- Frequency range
- 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- 12 mV/Pa ± 1 dB
- Equivalent noise level, CCIR
- 24 dB
- Equivalent noise level, A-weighted
- 13 dB-A
- Maximum SPL for THD 0.5%
- 140 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL)
- 70 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL)
- 81 dB
- Dynamic range
- 127 dB
Outputs
- Rated impedance
- 50 ohms
- Rated load impedance
- 1 kohms
- Maximum output voltage
- 10 dBu
- Matching connector
- XLR 3 F
Power
- Supply voltage (P48, IEC 61938)
- 48 V ± 4 V
- Current consumption (P48, IEC 61938)
- 3.2 mA
Physical
- Weight
- approx. 80 g
- Diameter
- 22 mm
- Length
- 107 mm
- Colors

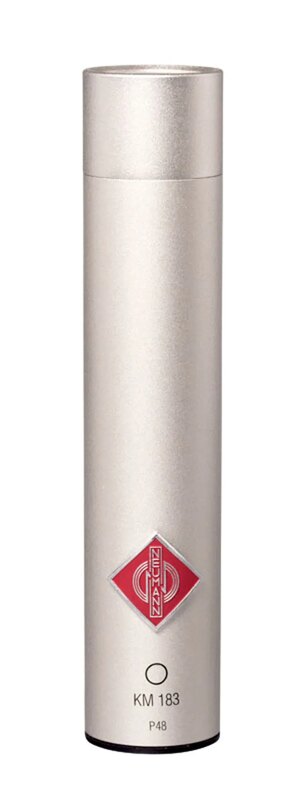

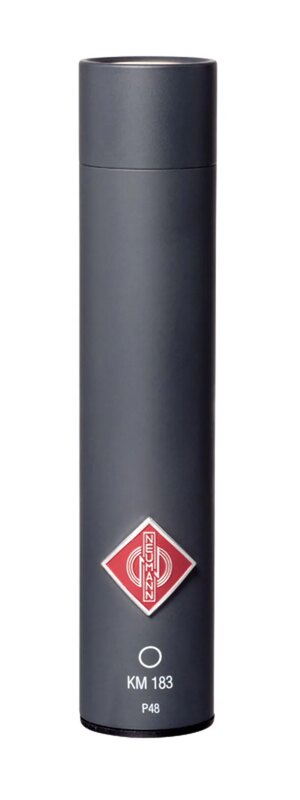

- Nickel (KM 183), black (KM 183 mt)
In the box
- KM 183 / KM 183 mt
- Microphone, WNS 100 windscreen, SG 21 bk stand mount swivel

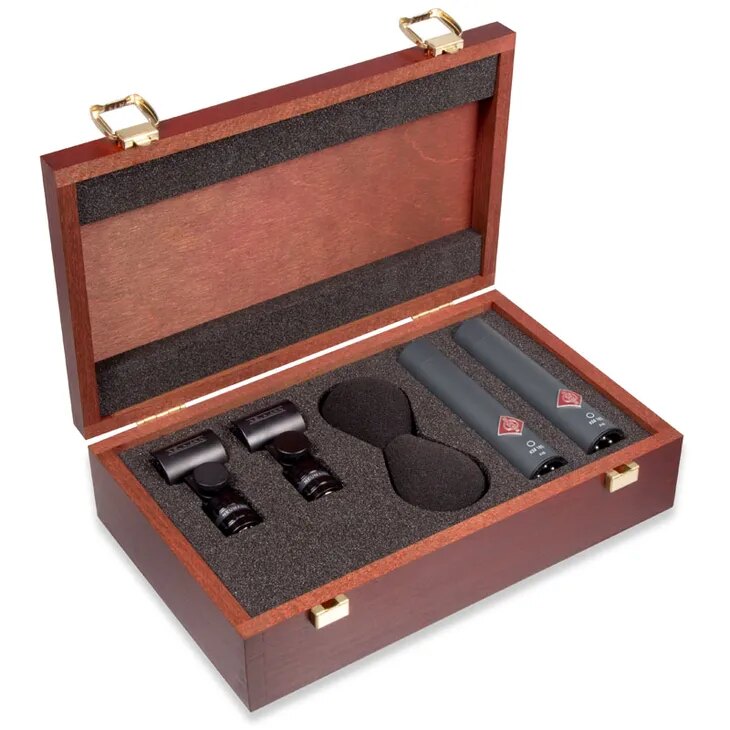

- Stereo sets
- 2 x microphone, 2 x WNS 100 windscreen, 2 x SG 21 bk stand mount swivel
