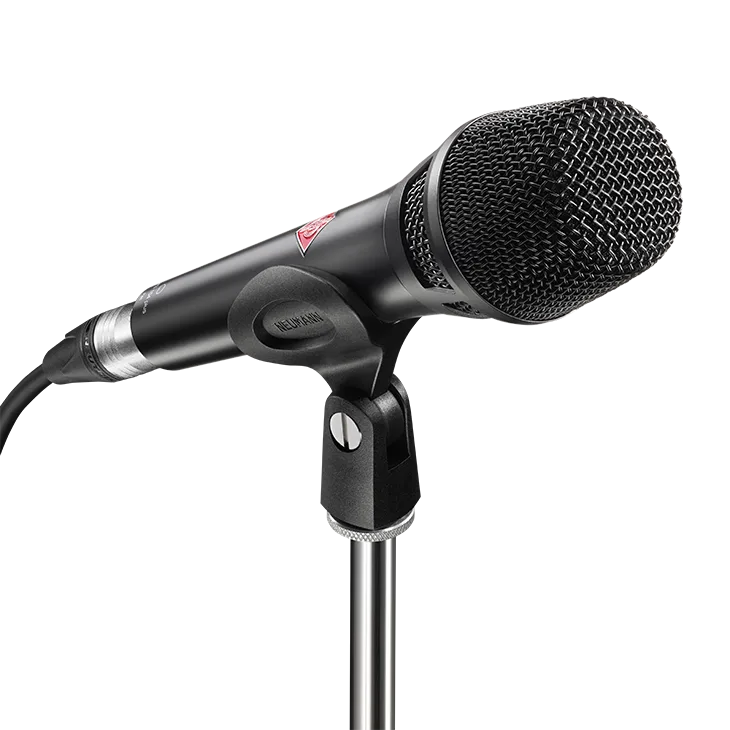

KMS 104 plus
The KMS 104 plus is a handheld cardioid vocal microphone for stage use that pairs a Neumann condenser capsule with a rugged steel-grille body. Compared with the KMS 104, it has a fuller low register, and it suits vocalists and close-miked stage instruments.
- Condenser capsule with tight cardioid pattern
- Extra emphasis at 100–150 Hz versus KMS 104
- Max SPL 150 dB for THD 0.5%
- Built-in pop screen, hardened steel headgrille
- 48 V phantom power, balanced XLR output
- Nickel or black finish
Photos
5Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un KMS 104 plus, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The KMS 104 plus is a wired condenser microphone built for live vocals. It uses a pressure-gradient capsule with a tight cardioid pattern, which keeps off-axis coloration low and allows high gain before feedback. A fixed low-cut filter compensates for proximity effect when the microphone is held close, and an internal pop screen inside a hardened steel headgrille protects against plosives and moisture.
The voicing differs from the standard KMS 104 by adding emphasis in the 100–150 Hz region, giving voices more weight and warmth. It handles sound pressure levels up to 150 dB. Beyond vocals, it can be used on percussion, brass, saxophone, harmonica, acoustic guitar and guitar cabinets, as well as for home recording and broadcast work.
It connects through a transformerless balanced output on an XLR connector and needs 48 V phantom power. The low 50 ohm output impedance allows cable runs of up to 300 m. It comes in nickel or black finishes, with a stand clamp and padded nylon bag.
Vidéo
Spécifications
- Marque
- Neumann
- Modèle
- KMS 104 plus
- Catégorie
- Sonorisation live › Systèmes sans fil
Audio
- Acoustical operating principle
- Pressure gradient transducer
- Directional pattern
- Cardioid
- Frequency range
- 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- 4.5 mV/Pa ± 1 dB equ. -47 dBV
- Equivalent noise level, CCIR
- 28 dB
- Equivalent noise level, A-weighted
- 18 dB-A
- Maximum SPL for THD 0.5%
- 150 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL)
- 66 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL)
- 76 dB
Outputs
- Rated impedance
- 50 ohms
- Rated load impedance
- 1 kohms
- Maximum output voltage
- 12 dBu
- Matching connector
- XLR 3 F
Power
- Supply voltage (P48, IEC 61938)
- 48 V ± 4 V
- Current consumption (P48, IEC 61938)
- 3.5 mA
Physical
- Weight
- approx. 300 g
- Diameter
- 48 mm
- Length
- 180 mm

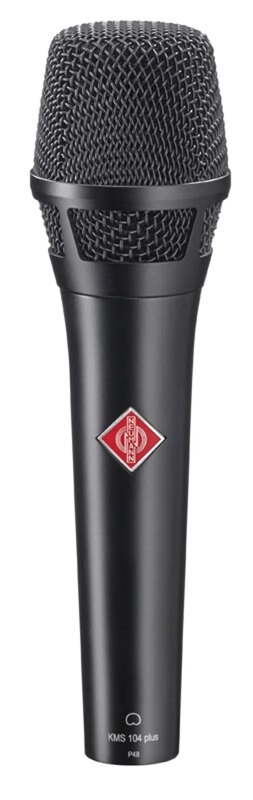

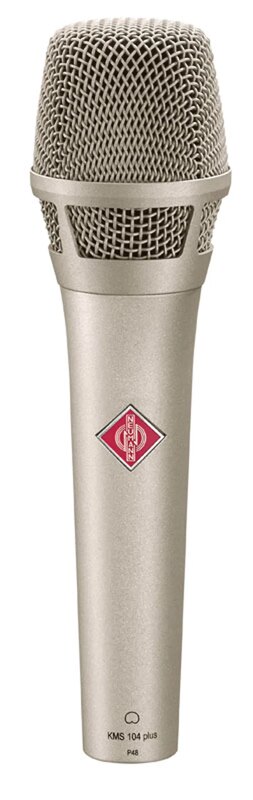

- Finish options
- Nickel (008624), black (008625)
In the box
- Microphone
- KMS 104 plus
- Stand clamp
- SG 105
- Carry bag
- Padded nylon bag
