TLM 103 25 Years Edition
Limited-edition large-diaphragm cardioid condenser microphone in a titanium finish, marking 25 years of the TLM 103. It suits vocals, speech and solo instruments in project, broadcast and professional studios.
- Large-diaphragm capsule derived from the U 87
- Fixed cardioid pattern
- Self-noise of 7 dB-A
- Max SPL of 138 dB, no pad needed
- Transformerless output stage
- Limited run of 500, titanium finish
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un TLM 103 25 Years Edition, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The TLM 103 - 25 Years Edition is a transformerless pressure-gradient condenser microphone with a fixed cardioid pattern. Its large-diaphragm capsule is derived from the K67/87 capsule used in the U 87, with a wide presence boost above 5 kHz and a controlled, deep low end.
Self-noise is 7 dB-A, and sensitivity is 23 mV/Pa, so the microphone stays quiet even with budget preamps, interfaces or vintage tube gear. It handles up to 138 dB SPL without a pad, giving a dynamic range of 131 dB. Typical uses include speech, vocals, drums, guitar amps, piano, and spot miking of cello and double bass.

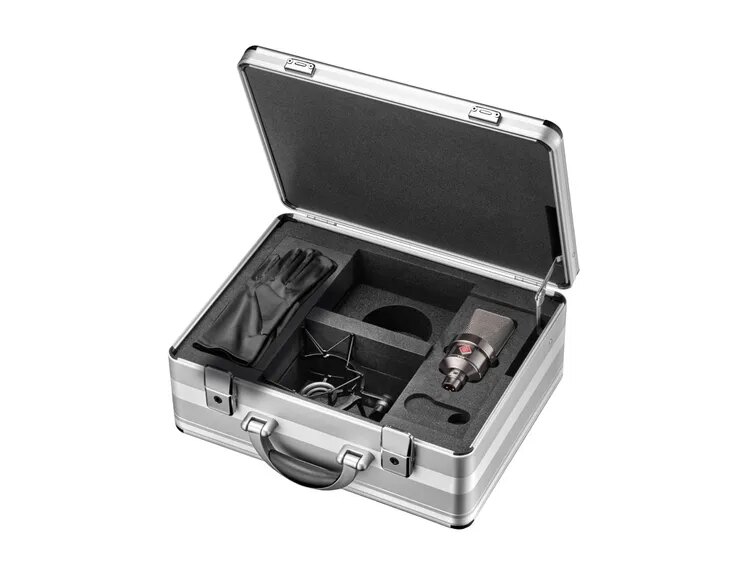

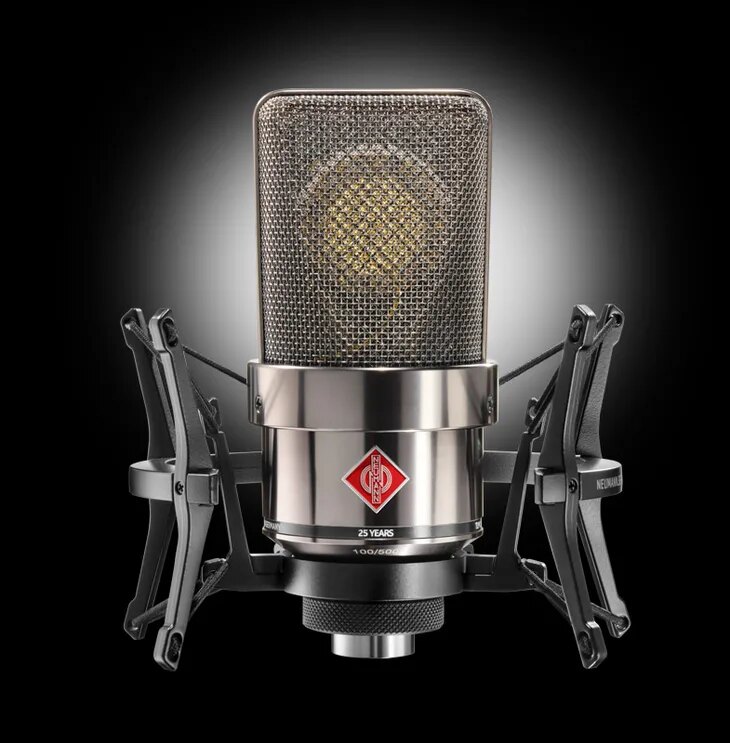

The microphone connects through a 3-pin XLR and runs on 48 V phantom power. This edition is a run limited to 500 units with a titanium finish. It ships with a black EA 4 shock mount, an aluminium case and a pair of black gloves.
Vidéo
Spécifications
- Marque
- Neumann
- Modèle
- TLM 103 25 Years Edition
- Catégorie
- Studio › Microphones
Audio
- Acoustical operating principle
- Pressure gradient transducer
- Directional pattern
- Cardioid
- Frequency range
- 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- 23 mV/Pa = –32.5 dBV ± 1 dB
- Equivalent noise level, CCIR
- 17.5 dB
- Equivalent noise level, A-weighted
- 7 dB-A
- Maximum SPL for THD 0.5%
- 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL)
- 76.5 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL)
- 87 dB
- Dynamic range
- 131 dB
Outputs
- Rated impedance
- 50 ohms
- Rated load impedance
- 1 kohms
- Maximum output voltage
- 13 dBu
- Matching connector
- XLR 3 F
Power
- Supply voltage (P48, IEC 61938)
- 48 V ± 4 V
- Current consumption (P48, IEC 61938)
- 3 mA
Physical
- Weight
- approx. 450 g
- Diameter
- 60 mm
- Length
- 132 mm
- Color
- Titanium
- Catalogue number
- 399004
In the box
- Microphone
- TLM 103 25 Years Edition
- Shock mount
- EA 4 BK
- Case
- Aluminium case
- Extras
- One pair of black gloves
