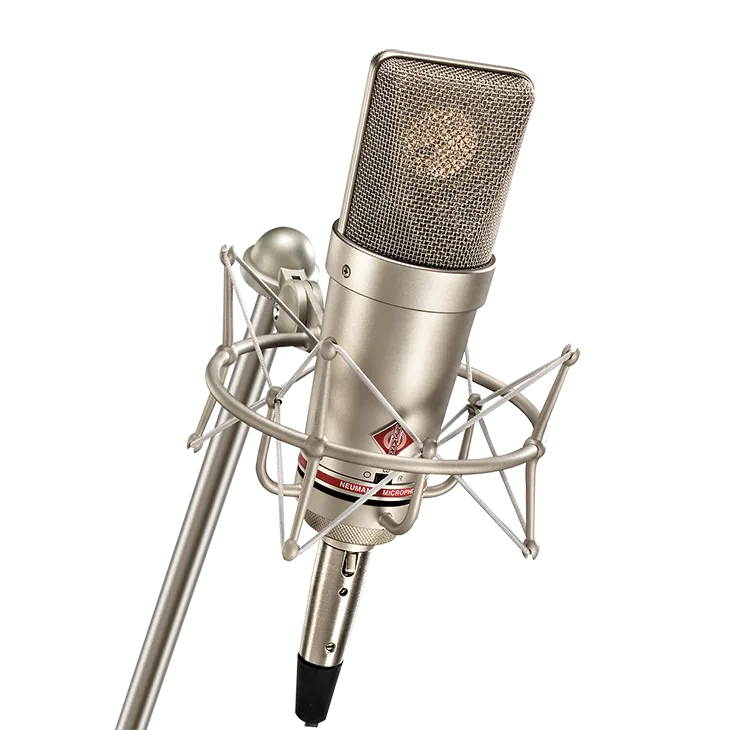

TLM 127
Large-diaphragm FET studio condenser microphone with switchable omnidirectional and cardioid patterns, plus remote selection of five patterns through a dedicated power supply. Aimed at home studio users and audio professionals who need a flexible vocal and instrument microphone.
- Large-diaphragm FET condenser, transformerless design
- Omni and cardioid on the mic; five patterns via N 248 remote
- Self-noise 8 dB(A), max SPL 140 dB (154 dB with pad)
- 14 dB pad and high-pass filter at 15 Hz or 100 Hz
- 48 V phantom powered, XLR 3 output
- EA 1 elastic suspension included, wooden box
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un TLM 127, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The TLM 127 is a transformerless large-diaphragm condenser microphone built around the K 127 capsule, which is derived from the K 103 used in the TLM 103. Its sound character comes from the capsule alone, with no electronic equalisation. It is addressed from the side, and a three-position switch on the front selects omnidirectional, cardioid or remote control ("R").
On the back are a 14 dB pre-attenuation switch and a two-position high-pass filter: 15 Hz ("LIN", 12 dB/octave) or 100 Hz, which can be used to reduce proximity effect. Self-noise is 8 dB(A), maximum SPL is 140 dB (154 dB with the pad engaged), and the A-weighted dynamic range is 132 dB.
The microphone runs from standard 48 V phantom power over a 3-pin XLR connection. With the optional N 248 power supply and the switch set to "R", wide-angle cardioid, hypercardioid and figure-8 become available by remote control over cable runs of up to 300 m. The internal assembly and capsule are elastically mounted, and an EA 1 elastic suspension is included.
Vidéo
Spécifications
- Marque
- Neumann
- Modèle
- TLM 127
- Catégorie
- Studio › Microphones
Audio
- Acoustical operating principle
- Pressure gradient transducer
- Directional pattern
- Omnidirectional, cardioid (wide angle cardioid, hypercardioid and figure-8 also available via remote control)
- Frequency range
- 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- 12 mV/Pa
- Equivalent noise level, CCIR
- 20 dB
- Equivalent noise level, A-weighted
- 8 dB-A
- Signal-to-noise ratio, CCIR (re. 94 dB SPL)
- 74 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL)
- 86 dB
- Maximum SPL for THD 0.5%
- 140 dB
- Maximum SPL for THD 0.5% with preattenuation
- 154 dB
- Dynamic range (A-weighted)
- 132 dB
Controls
- Pattern switch
- Omnidirectional, cardioid, remote control (R)
- Pre-attenuation
- 14 dB
- High-pass filter
- 15 Hz (LIN, 12 dB/octave) or 100 Hz
Outputs
- Matching connector
- XLR 3 F
- Rated impedance
- 50 Ohms
- Rated load impedance
- 1000 Ohms
- Maximum output voltage
- 10 dBu
Power
- Supply voltage (P48, IEC 61938)
- 48 V ± 4 V
- Current consumption (P48, IEC 61938)
- 3.2 mA
- Maximum cable length (remote control)
- 300 m
Physical
- Diameter
- 57 mm
- Length
- 173 mm
- Weight
- 450 g
In the box
- Included
- Microphone, EA 1 elastic suspension, wooden box
