Catapult
A passive analog audio snake that carries four balanced mic or line-level channels over a single shielded Cat 5 or Cat 6 Ethernet cable. It suits installers, touring crews and studios that want to reuse existing network cabling instead of a bulky multicore.
- Four balanced analog channels over one Cat 5/6 cable
- Passive operation, no power required
- Straight-wire path from XLR to RJ45
- TX4M/RX4M with transformers for mic splitting
- TX4L/RX4L with transformers for line-level isolation
- All Catapult transmit and receive modules are cross-compatible
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Catapult, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

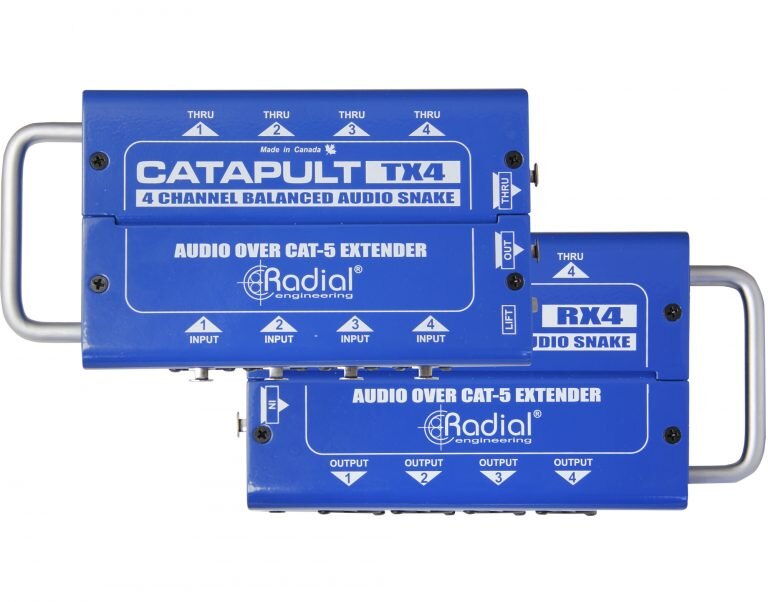

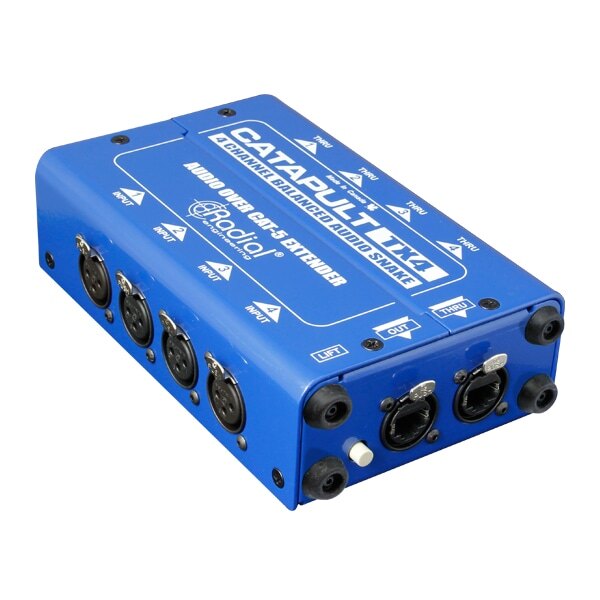

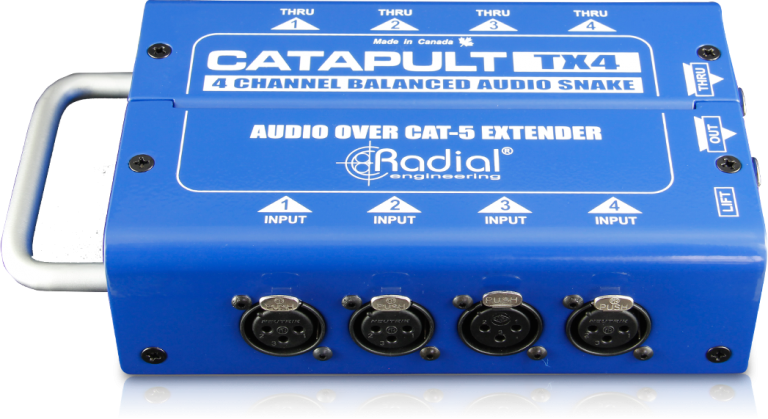

The Catapult system moves four channels of analog audio between two locations using standard Cat 5 or Cat 6 cable. Transmit (TX4) and receive (RX4) modules are wired straight through from the XLR connectors to the RJ45 jack, so the signal stays analog with no digital conversion and no power needed.

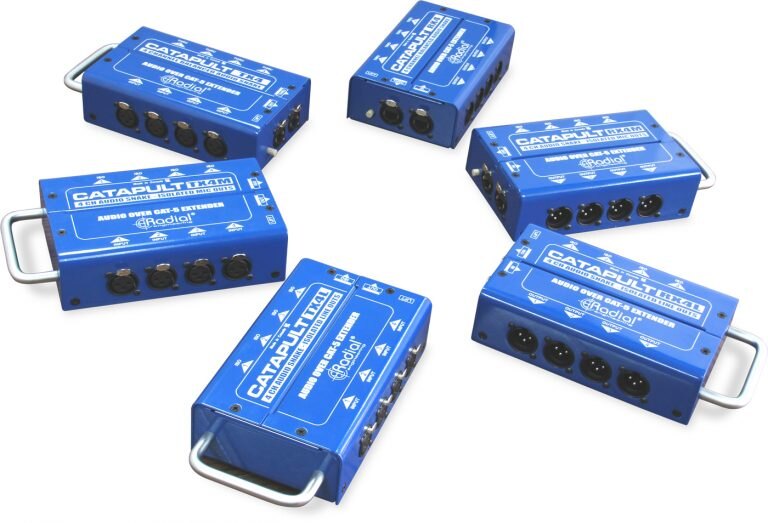

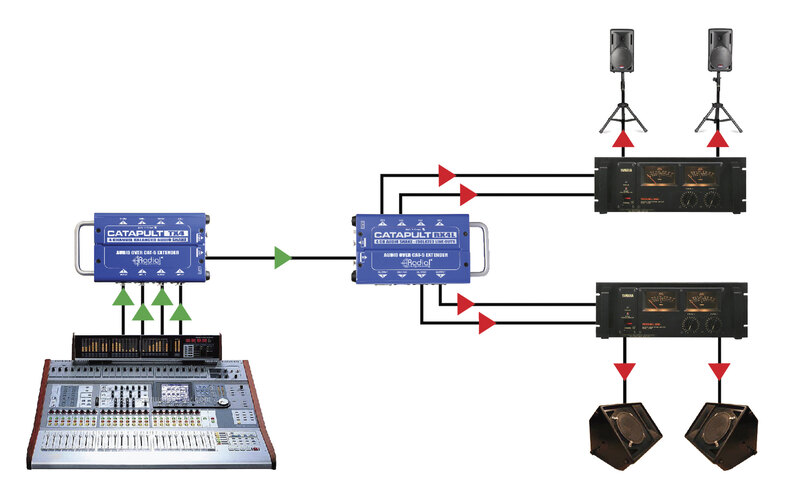

The range is modular and every transmit and receive unit works with every other. Direct-wired TX4/RX4 modules are joined by transformer-isolated versions: the TX4M and RX4M for splitting microphone signals, and the TX4L and RX4L for line-level splits, ground-loop isolation and feeds to amp racks. Typical uses include return snakes, stage sub snakes, mic splitting between monitor and front-of-house desks, line isolation and networking audio between rooms through installed building cable.
The modules can also carry four 110 ohm AES signals over the same cable, giving eight channels of digital audio for remote recording. Catapult Mini and Catapult Rack units can be mixed into the same system.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- Catapult
- Catégorie
- Accessoires › Câbles
Connectivity
- Cable type
- Shielded Cat 5 or Cat 6 Ethernet
- Audio channels
- 4
- Signal type
- Balanced analog, mic or line level
- Network-side connector

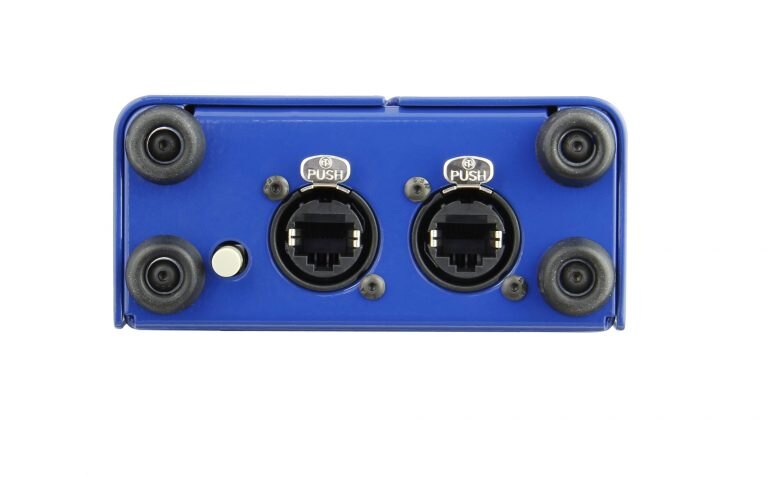

- RJ45
- Audio-side connectors
- XLR
- AES use
- 4 x 110 ohm AES signals across Cat 5/6
Power
- Operation
- Passive, no power required
- Digital conversion
- None
Models
- TX4 part number
- R800 8022 00
- TX4M part number
- R800 8023 00
- TX4L part number
- R800 8024 00
- RX4 part number
- R800 8025 00
- RX4M part number
- R800 8026 00
- RX4L part number
- R800 8027 00
- Transformer isolation
- TX4M/RX4M (mic), TX4L/RX4L (line)
