Exo-Pod
A passive line-level broadcast splitter that feeds one balanced XLR line signal from a mixing console to up to 14 recording or media devices. It suits broadcast technicians, press feeds and event audio teams.
- Passive splitter with 14 transformer-isolated outputs
- 10 XLR outputs plus four 3.5mm TRS jack outputs
- Balanced line-level XLR input handles up to +24dB
- Variable input trim adjusts global output level
- Individual ground lift switches on the XLR outputs
- XLR thru connector for daisy-chaining multiple units
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Exo-Pod, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

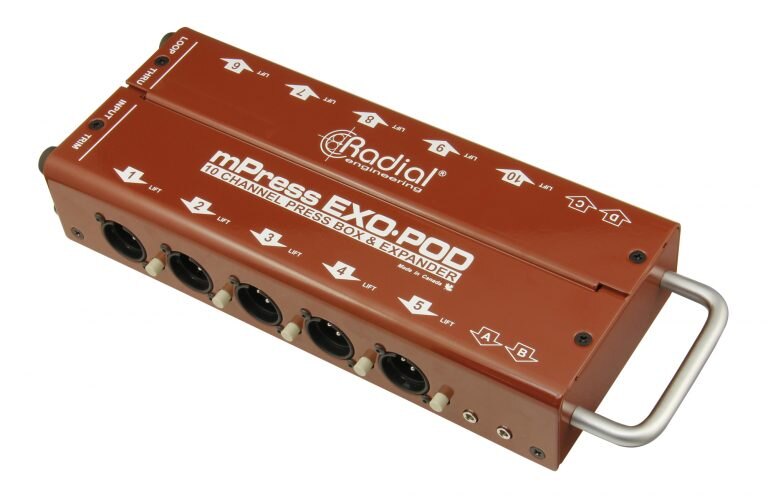

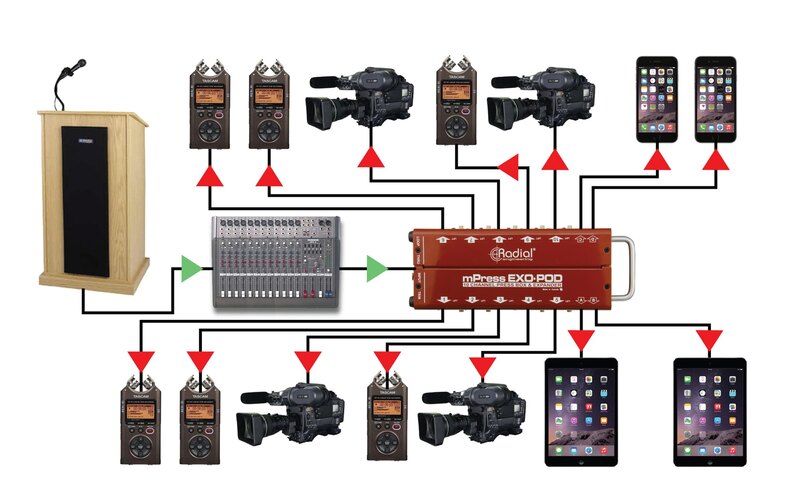

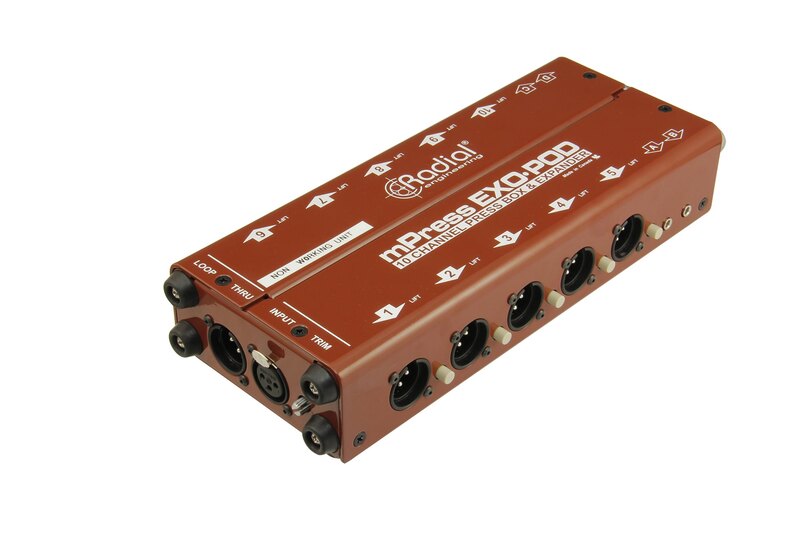

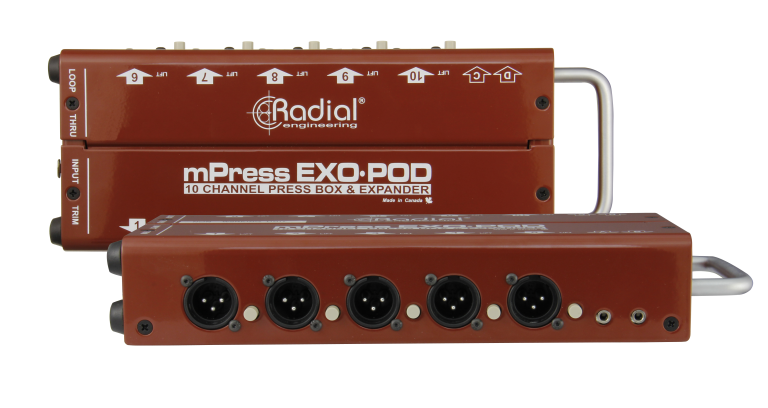

The Exo-Pod takes a balanced line-level XLR input and distributes it to ten XLR outputs and four 3.5mm TRS jacks. The XLR outputs suit recorders and press-feed boxes, while the TRS jacks are meant for video cameras, handheld recorders, tablets and other media systems. All outputs are transformer isolated, which helps prevent hum and buzz caused by ground loops.
A set-and-forget input trim lets the technician lower the global output level locally. Each XLR output has its own ground lift switch for further noise reduction. The input accepts levels up to +24dB and works with a standard +4dB line feed from any mixer.

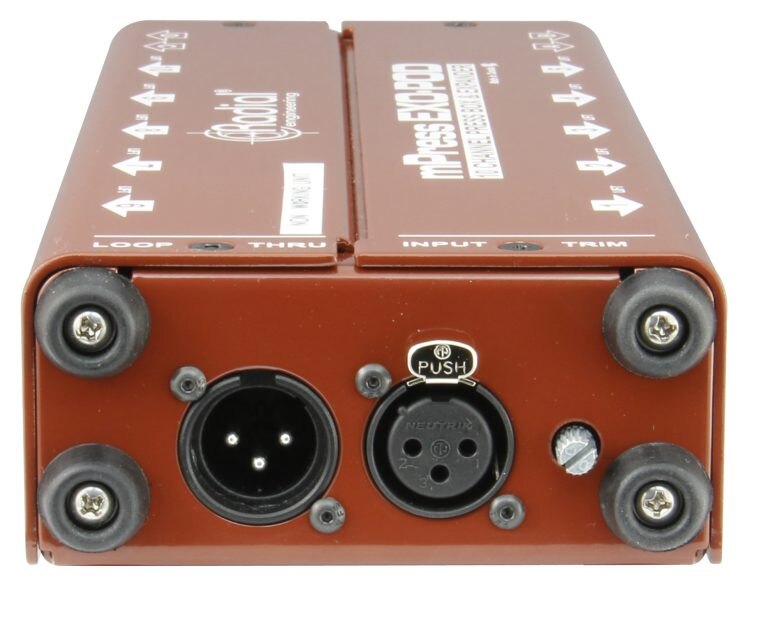

An XLR thru connector lets several units be daisy-chained, so the system can grow to dozens or even hundreds of outputs for larger events. The unit is passive and needs no power. It can also feed the mic-level inputs of PA speakers in a meeting room, in addition to the press gallery.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- Exo-Pod
- Catégorie
- Studio › Préamplis et outboard
Inputs
- Input connector
- Balanced line-level XLR
- Maximum input level
- Up to +24dB
- Nominal input level
- +4dB line level
- Input trim
- Variable, set and forget
Outputs
- Total outputs
- 14
- XLR outputs
- 10
- 3.5mm TRS outputs
- 4
- Output isolation
- Transformer isolated
- Ground lift
- Individual switches on XLR outputs
- Thru connector
- XLR thru
Connectivity
- Daisy-chaining
- Multiple units linkable via XLR thru
- Expandability
- Hundreds of outputs when linked
- Targets for 3.5mm outputs
- Video cameras, hand-held recorders, tablets, media systems
Audio
- Circuit type
- Passive
- Signal type
- Line-level splitter
Product
- Product type
- Broadcast splitter
- Part number
- R800 8012 00
