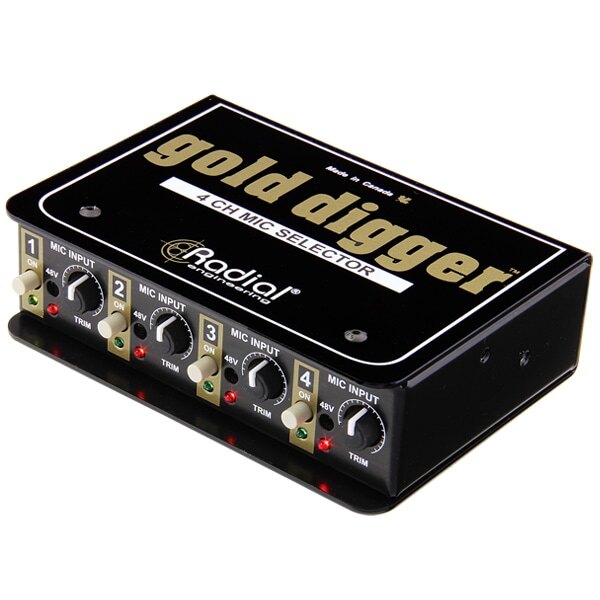

Gold Digger

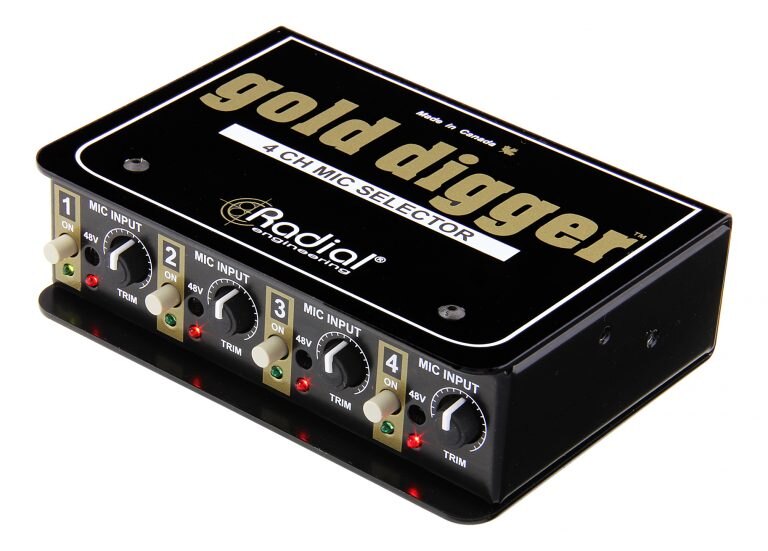

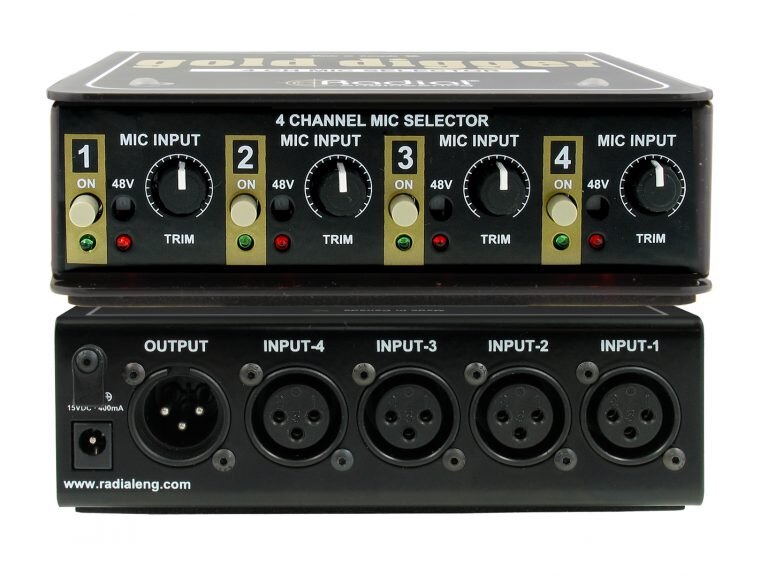

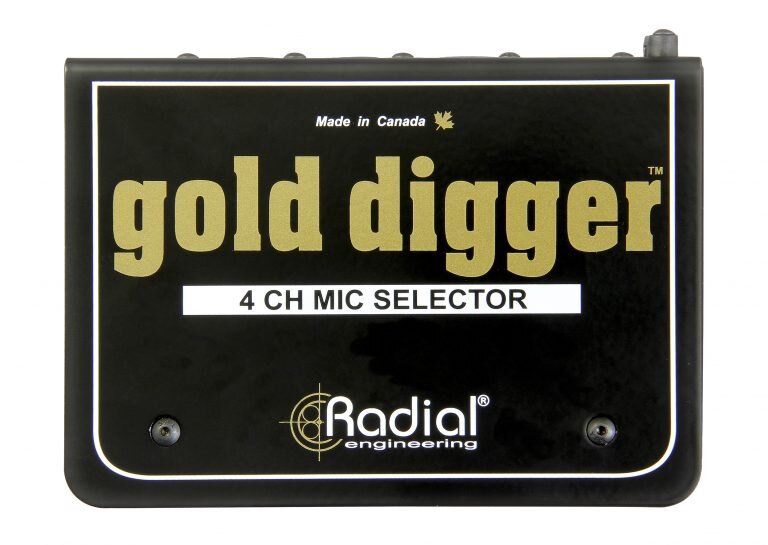

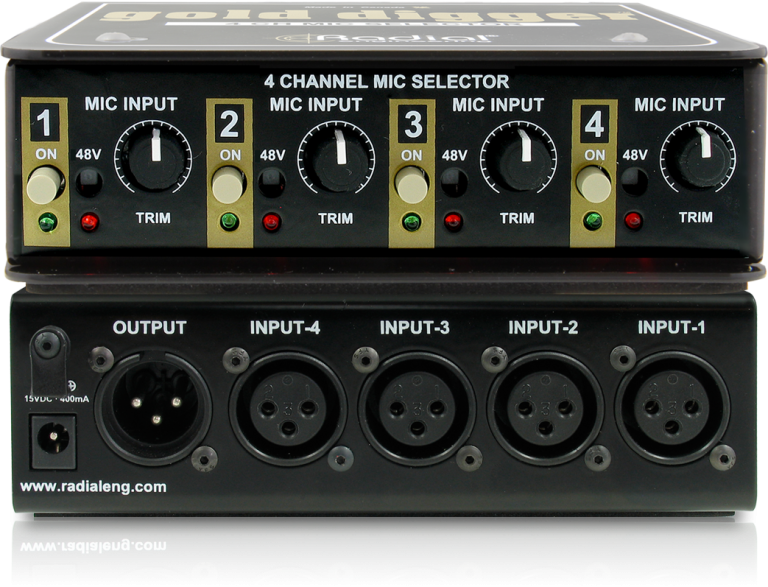

The Gold Digger is a passive 4-input, 1-output microphone selector for studios. It lets an engineer switch between up to four microphones into a single preamp, with per-input trim and switchable 48V phantom power, so mics can be compared without re-patching.
- 4 selectable inputs routed to 1 output
- Individual trim control on each input
- Separate 48V phantom on/off switch per input
- Straight-wire, distortion-free signal path
- Pairs with Radial Cherry Picker for mic and preamp combinations
- Optional SA series rack adapter; power supply included
Photos
5Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Gold Digger, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The Gold Digger routes four inputs to one output so that several microphones, or other balanced sources, can be auditioned through the same preamp and signal path. Each input has its own trim control, which is set once so that the microphones play back at similar relative levels. Every input also has a separate 48V phantom power on/off switch, so condenser microphones can be powered only when needed and dynamic or ribbon types are left alone.
The signal path is straight-wire, with no added coloration, noise or distortion. Because all sources pass through the same preamp, level-matched A/B comparison is a fair one. Beyond microphone shoot-outs, it can be used to compare direct boxes, or in live work to send as many as four wireless systems to a single PA input channel.
It pairs with the Radial Cherry Picker, which switches between preamps, so that any of four microphones can be matched with any of four preamps. Rack mounting is possible with the optional SA series rack adapter, and an included power supply is listed under the product resources.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- Gold Digger
- Catégorie
- Studio › Préamplis et outboard
Inputs
- Number of inputs
- 4
- Input level control
- Individual trim control per input
- Phantom power
- 48V, separate on/off switch per input
Outputs
- Number of outputs
- 1
Audio
- Signal path
- Straight-wire, distortion-free
- Input selection
- Button switching between inputs
- Function
- 4-channel microphone selector / switcher
Power
- Power supply
- Included (R800 9415)
Physical
- Rack mounting
- Optional SA series rack adapter (one or two SA series devices)
Compatible products
- Companion switcher
- Radial Cherry Picker 4-channel preamp selector
Software
- Part number
- R800 1440 00
In the box
- Included
- Power supply (R800 9415)
