HotShot 48V
A footswitch-operated switcher for condenser or dynamic microphones that supplies 48V phantom power and sends the mic signal to one of two outputs. Intended for stage vocalists who want to talk to band members or technicians via the monitors without noise in the PA.
- Switches one mic between Output-A and Output-B
- Supplies 48V phantom power for condenser mics
- Also works with dynamic microphones
- Footswitch configurable as latching or momentary
- 5 ms relay delay for silent switching
- Usable as a cough/mute switch with Output-B unconnected
Photos
6Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un HotShot 48V, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

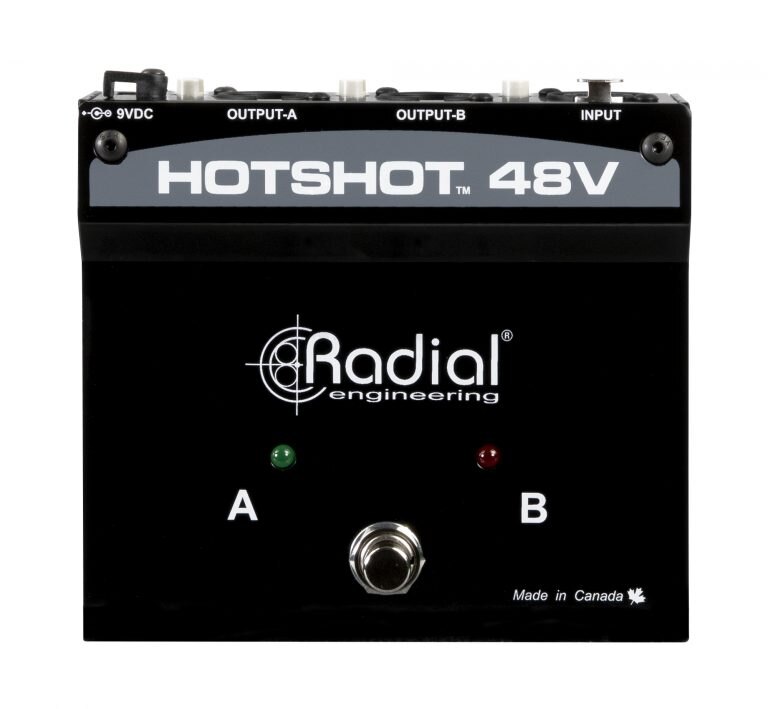

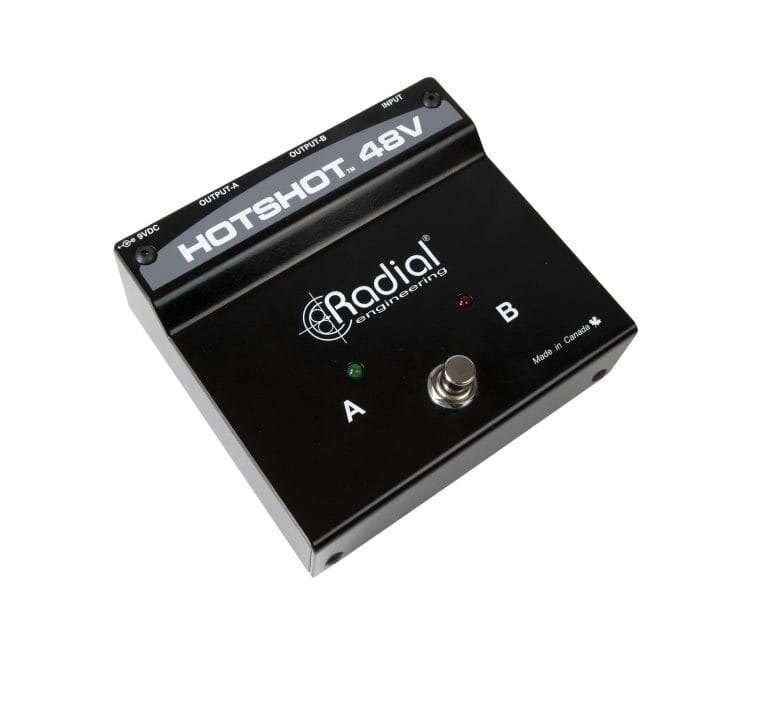

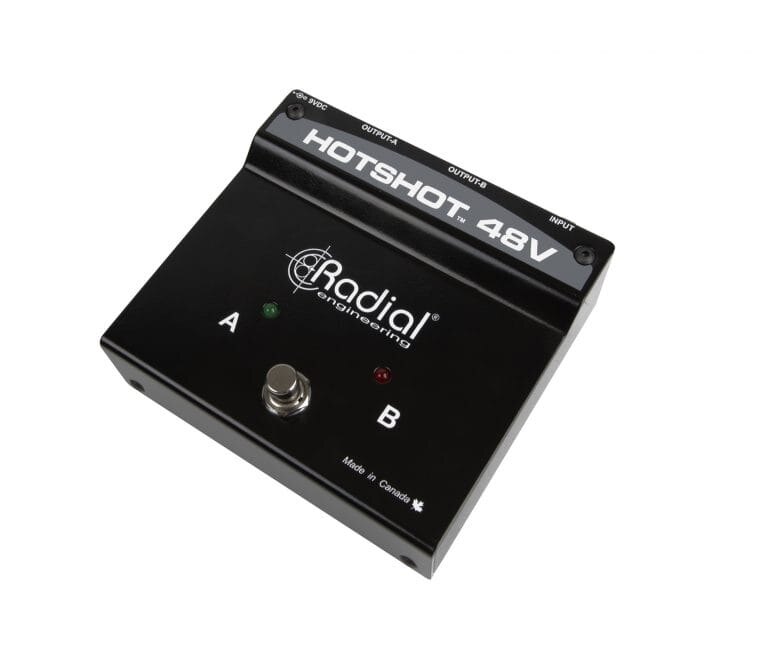

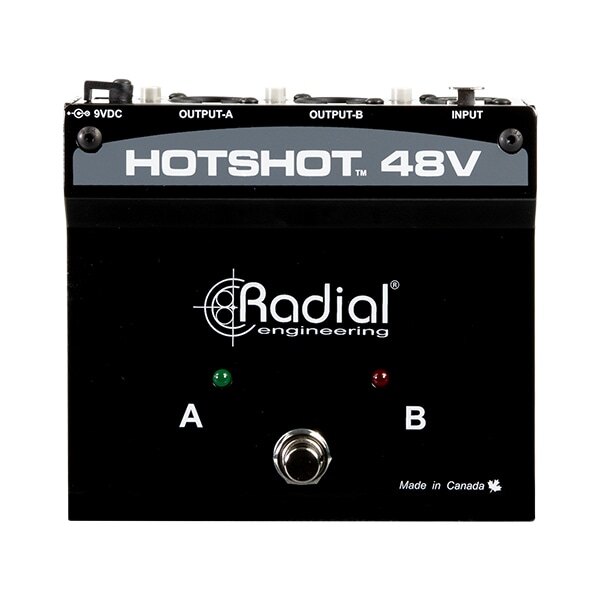

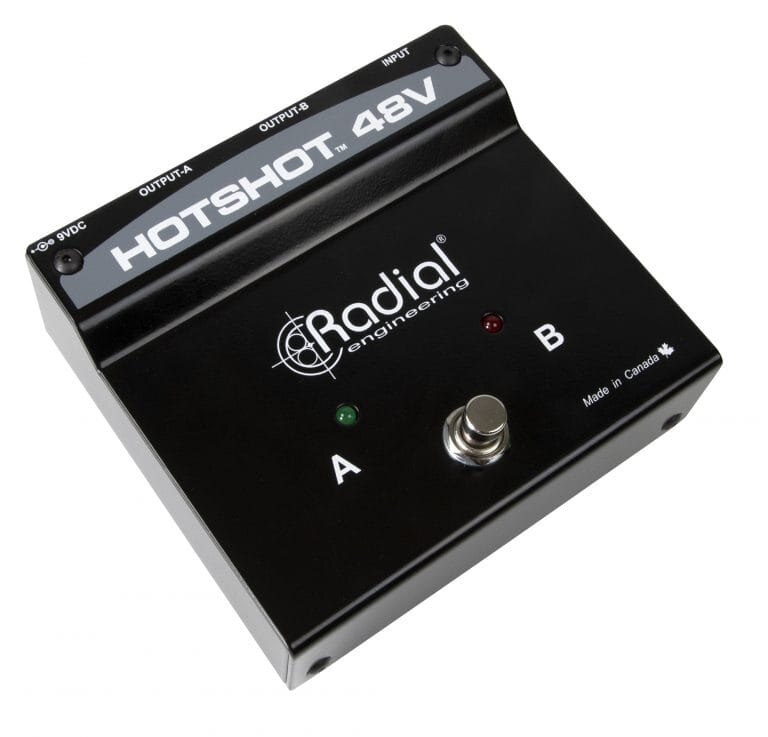

The HotShot 48V lets a performer redirect a vocal microphone from the main PA feed to a second destination, such as the stage monitor system, with a footswitch. It supplies 48V phantom power for condenser microphones and also works with dynamic mics. LEDs show which output is currently active.
Switching is done with active circuitry and a time-delay microcontroller. A 5 millisecond delay is added when the relay engages, which gives any DC leakage time to dissipate so that no pops or clicks reach the PA, including when phantom power or powered devices are connected.

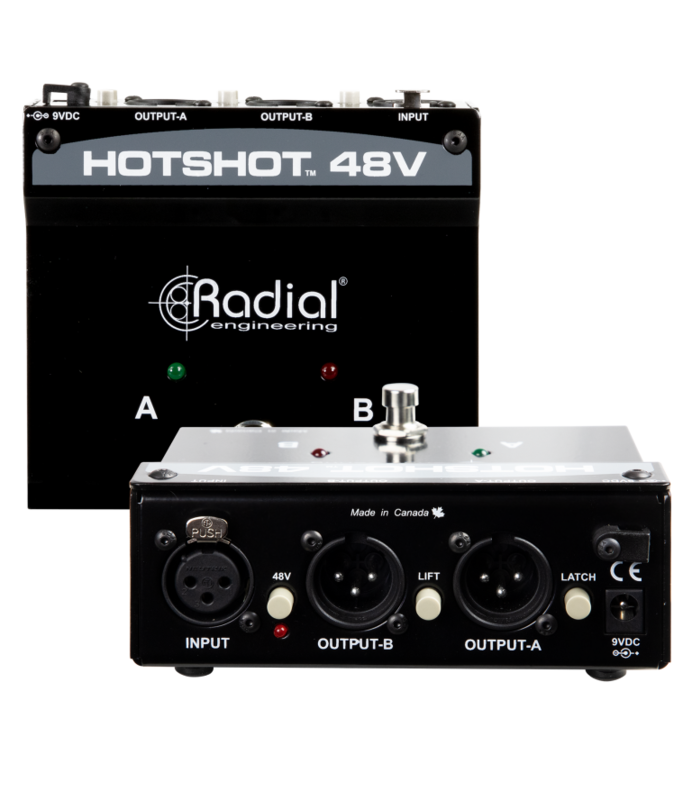

The footswitch can be set to latching operation (press once for Output-B, press again to return to Output-A) or momentary operation (hold for Output-B). Leaving Output-B unconnected turns the unit into a hands-free cough or mute switch. The unit has a single mic input and two outputs, A and B.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- HotShot 48V
- Catégorie
- Sonorisation live › Autre matériel live
Inputs
- Input
- 1 microphone input
- Compatible microphones
- Condenser and dynamic
- Phantom power
- 48V for condenser microphones
Outputs
- Outputs
- 2 (Output-A and Output-B)
- Output selection
- Footswitch
- Mute function
- Footswitch with Output-B unconnected (cough switch)
Controls
- Footswitch modes
- Latching or momentary
- Active output indication
- LED indicators
Audio
- Switching type
- Active circuitry with time-delay microcontroller
- Relay switching delay
- 5 ms
- Switching noise
- Silent, no pops or clicks through the PA
Physical
- Product type
- Condenser microphone switcher
- Part number
- R800 1505 00
- Manufacturer
- Radial Engineering
