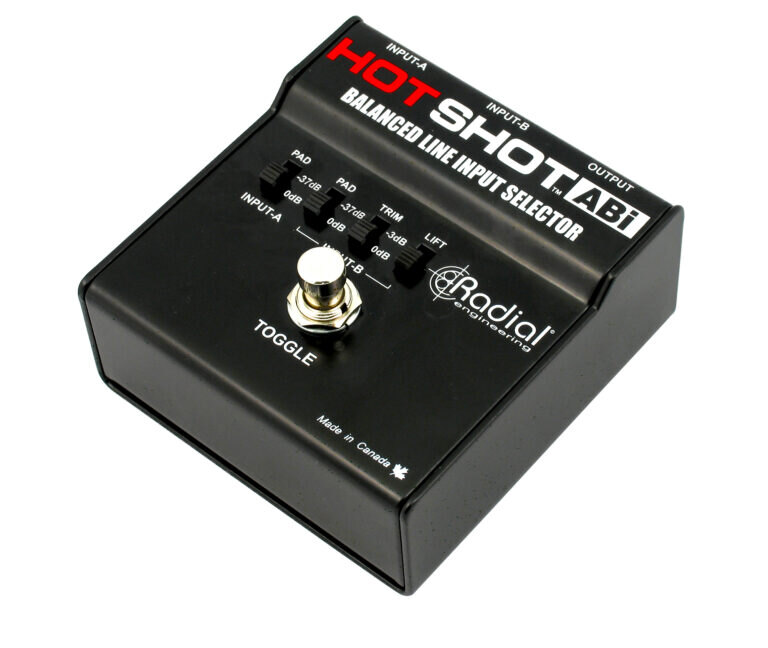

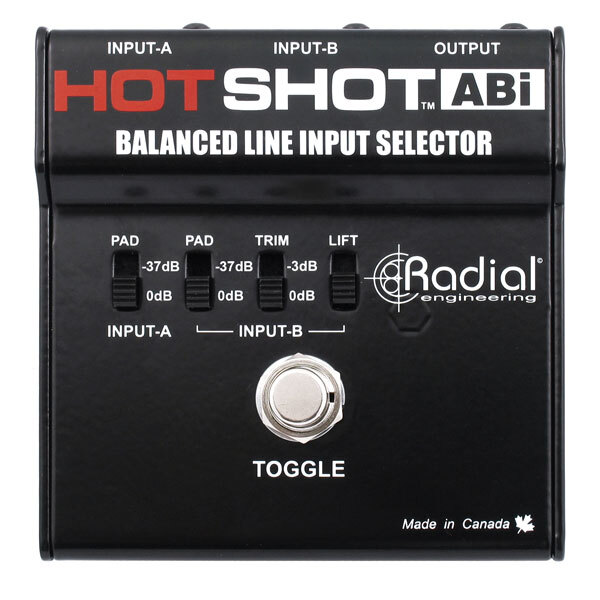

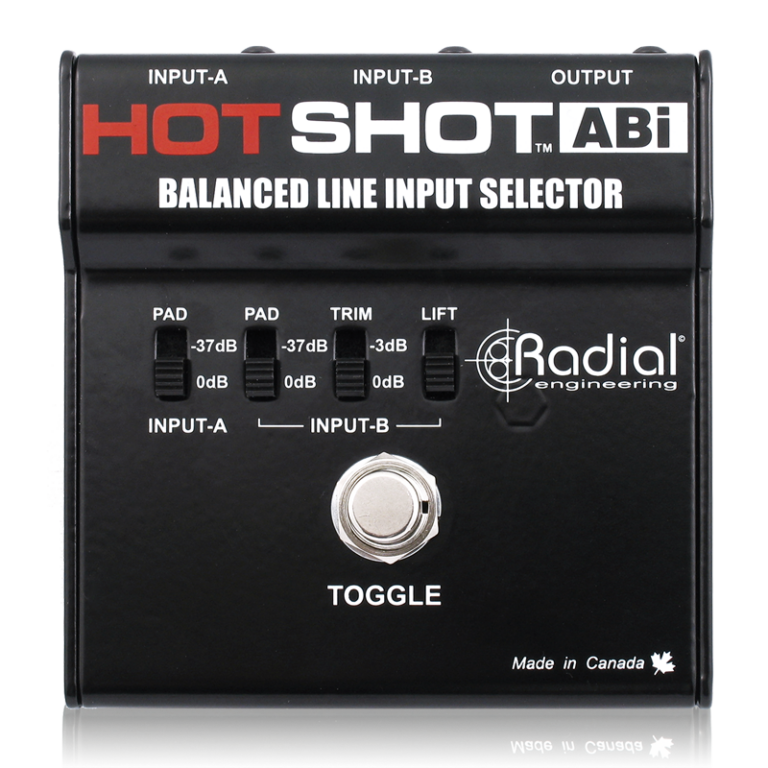

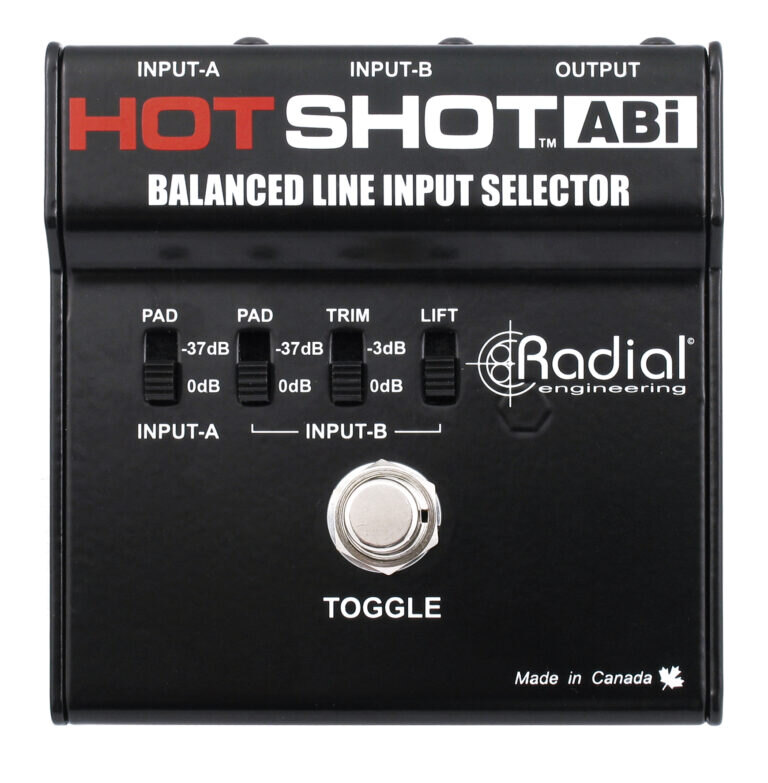

HotShot ABi
Passive balanced XLR selector with a latching footswitch that toggles between two sources, or mutes one. Aimed at performers switching between two microphones or mono sources on stage without using extra mixer channels.
- Selects between two balanced XLR sources
- Latching footswitch toggles or mutes the source
- Selectable input pad for level matching
- Completely passive, no power required
- Can mute a microphone or switch wireless receivers
- Part no. R800 1508 00
Photos
7Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un HotShot ABi, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The HotShot ABi lets a performer choose between two balanced XLR inputs by pressing a single latching footswitch. A typical use is swapping between two dynamic microphones during a show, which saves an input channel on the mixer.
Because the switch latches, the unit can also act as a mute for a microphone, pick between two wireless receivers, or change between two mono playback devices. Source A and source B are connected to the two inputs, and the footswitch selects which one reaches the output.

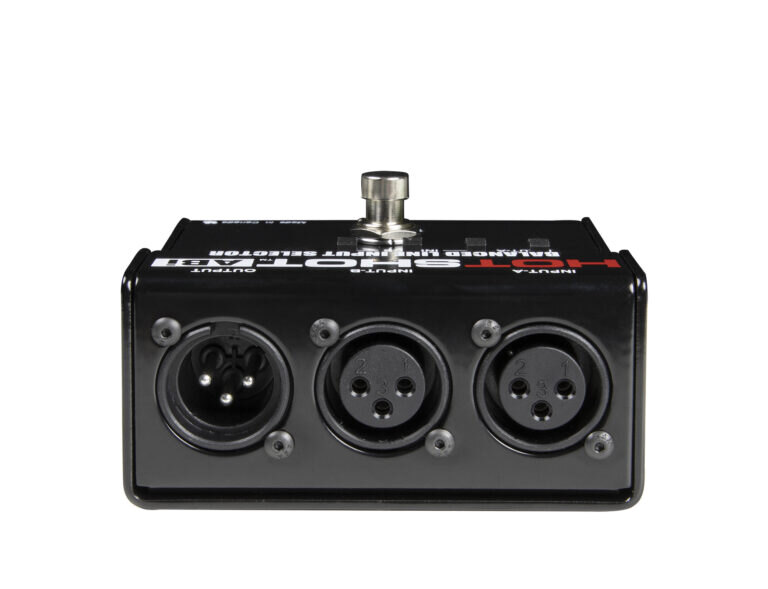

Operation is fully passive, so no power supply or batteries are needed. A selectable input pad is provided so the levels of the two signals can be matched. The unit connects with balanced XLR cables.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- HotShot ABi
- Catégorie
- Sonorisation live › Autre matériel live
Inputs
- Number of inputs
- 2 (A and B)
- Input type
- Balanced XLR
- Input pad
- Selectable
Outputs
- Number of outputs
- 1
- Output type
- Balanced XLR
Controls
- Switch type
- Latching footswitch
- Switching function
- Select between A and B, or mute
- Input level matching
- Selectable input pad
Power
- Operation
- Completely passive
- Power required
- None
Applications
- Microphone switching
- Two wired or wireless microphones
- Source selection
- Two mono audio sources
- Mute
- Mutes a signal
General
- Product type
- Balanced input selector
- Part number
- R800 1508 00
