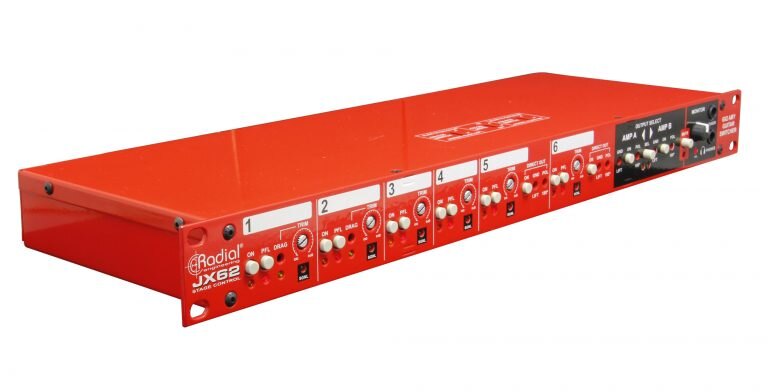

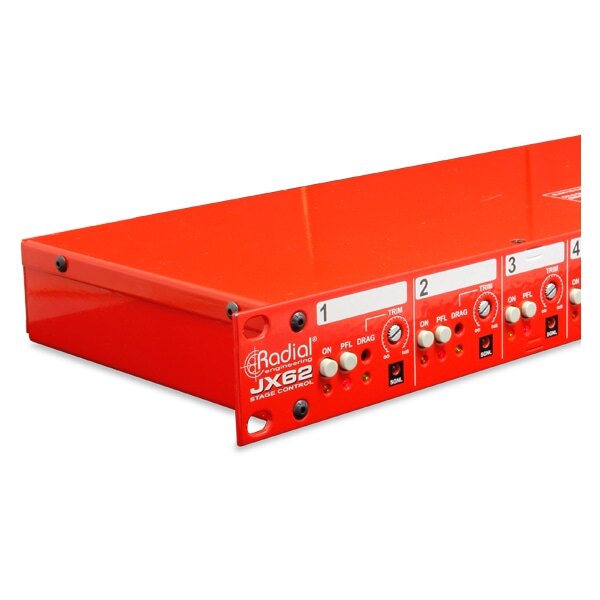

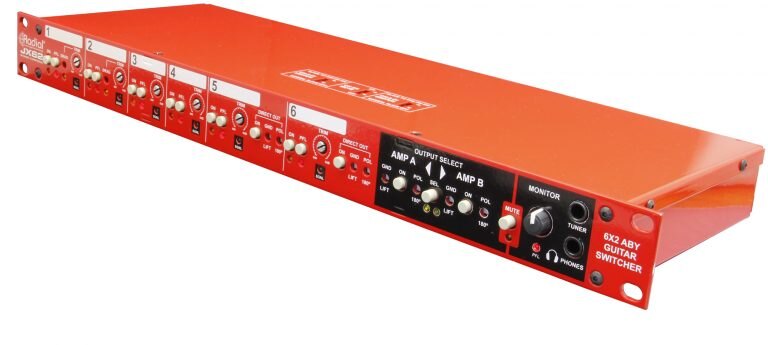

JX62

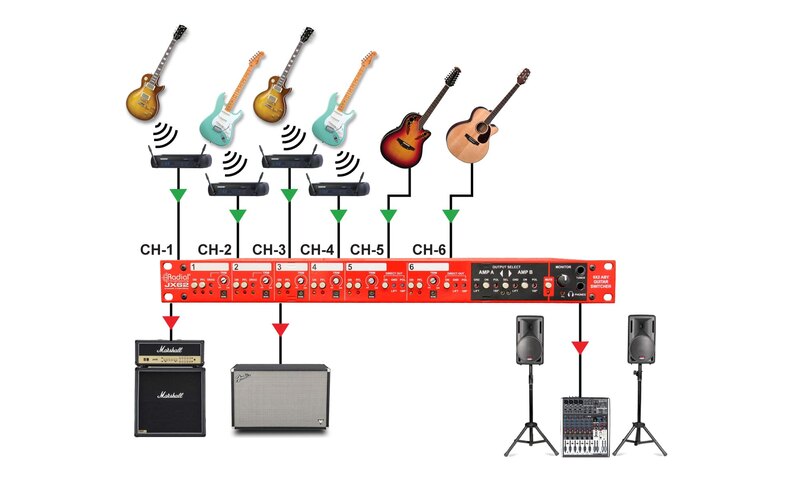

The JX62 lets a player route up to six instruments to two amplifiers from a single unit. It is built for both wired and wireless guitars in concert touring, and individual trim controls allow the level of each instrument to be matched so the balance stays consistent when switching.

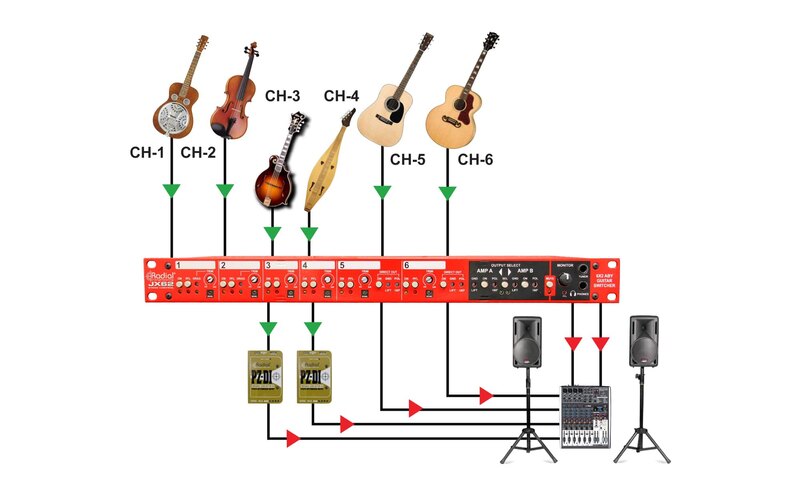

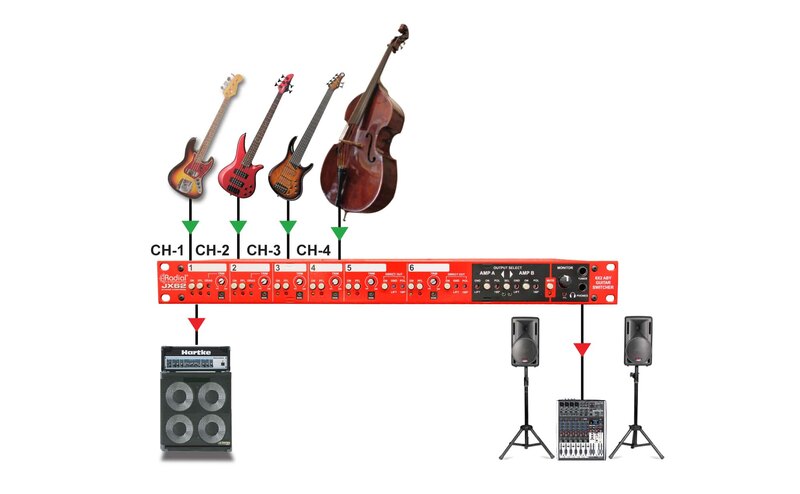

For system checks it has PFL switches and a headphone output. Two of the inputs, channels 5 and 6, have Radial DI outputs that can feed the PA system directly, which removes the need for separate direct boxes for acoustic guitars or an upright bass. The signal path is transformer isolated to eliminate ground loops.

Amp selection and muting can be handled remotely with the optional JR2 footswitch, for example to alternate between two amps or to mute basses while tuning or changing instruments. A user guide, photos and manufacturing specs are available for owners of the unit.
