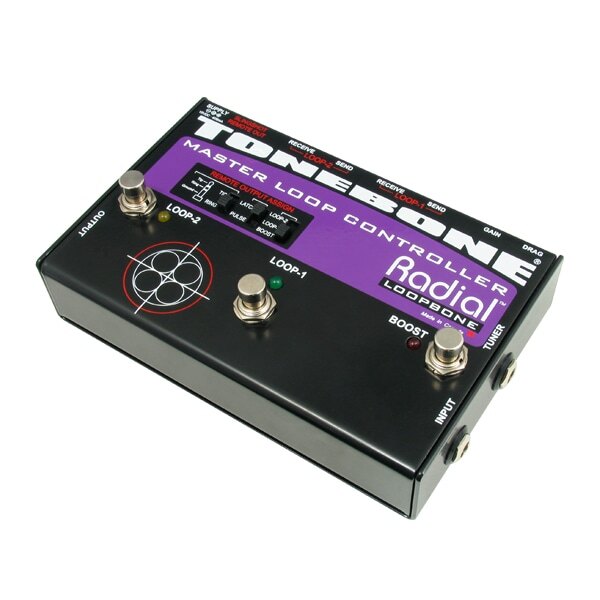

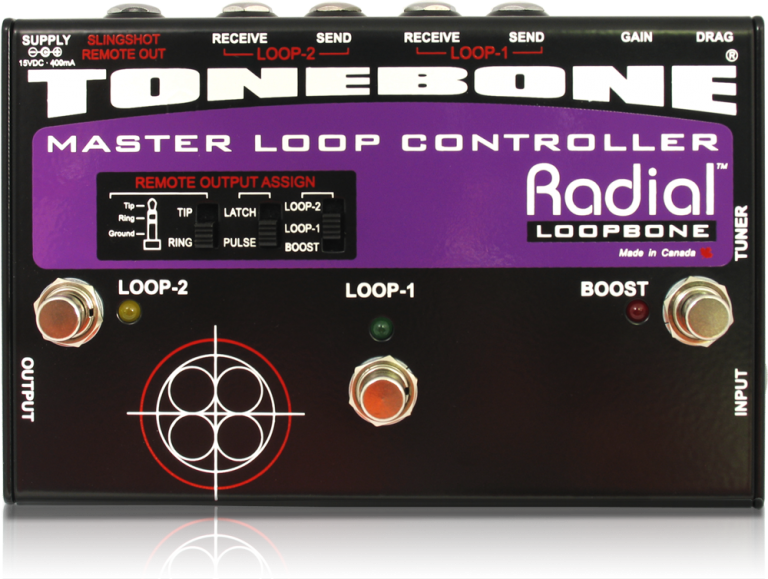

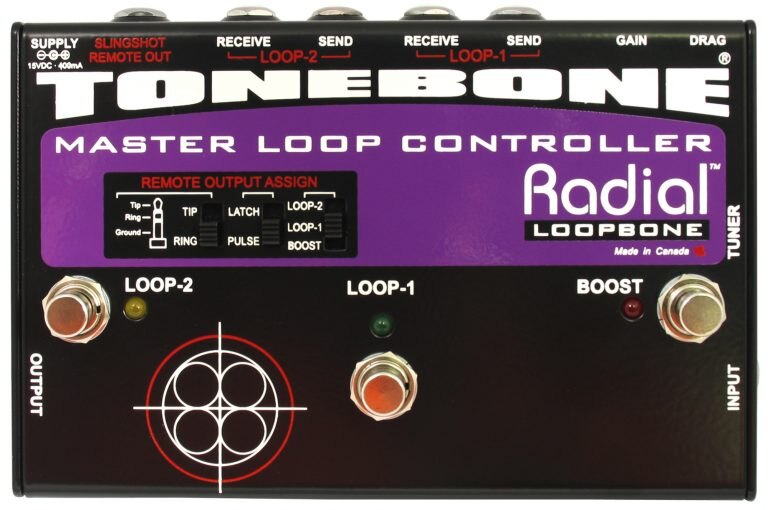

Loopbone

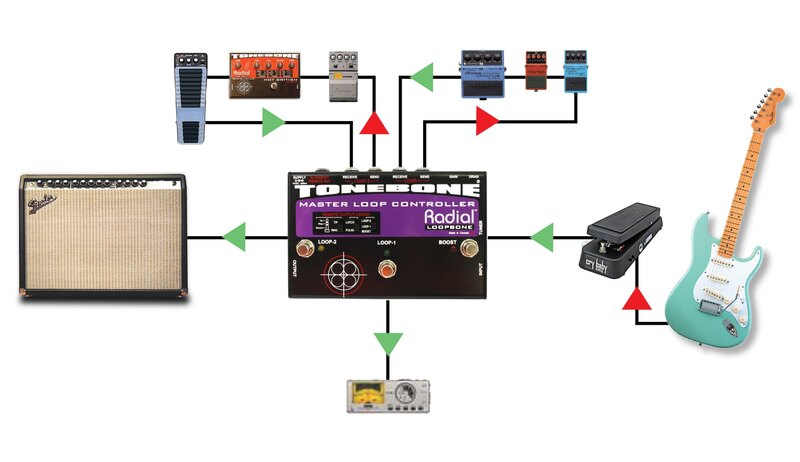

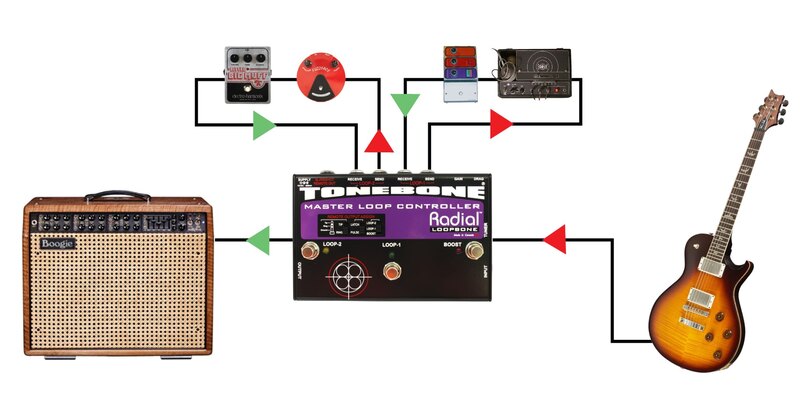

The Loopbone lets a player insert, remove and combine pedals through two independent loops. The loops are wired in series, so the first can feed the second to build combined effect chains, or noisy pedals can be kept out of the main signal path until needed. The signal passes through a fully discrete class-A buffer, and photocell switching ramps the signal up and down to avoid pops, including with high-gain amplifiers.

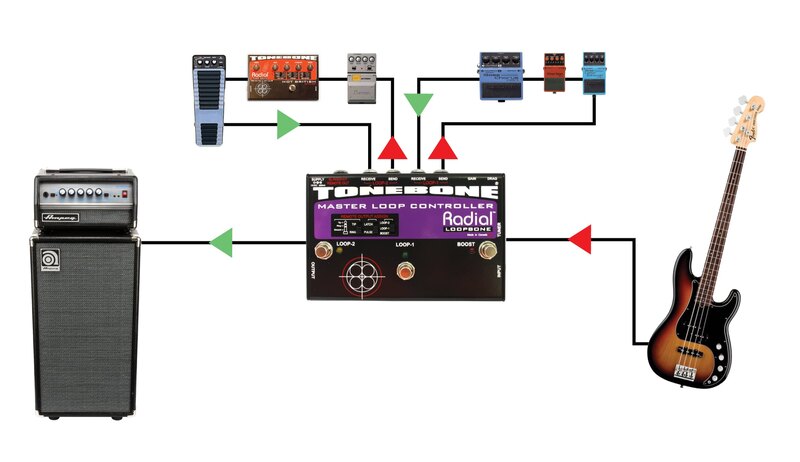

A Drag control load-correction circuit restores the natural feel of a guitar played straight into a tube amplifier. A built-in power booster with a set-and-forget level control is provided for solos, and a separately buffered tuner output allows tuning while the rest of the rig is muted. The buffering supports cable runs up to 15 m (50') without added noise, and it can be used with a wah or fuzz placed directly after the guitar, or on bass.

The SlingShot remote output can change amp channels, switch an effect, or trigger another SlingShot-equipped pedal such as the Radial Headbone, all with one footswitch press. Manufacturing specs and a user guide are available for existing owners.
