North-Star
A compact guitar pedal combining a transparent overdrive with a separate class-A clean boost that has a built-in effects loop. It suits guitarists who want light to heavy drive, a level boost, or one-step solo switching with delay. Discontinued.
- Transparent overdrive circuit
- Class-A booster with up to +24dB of clean gain
- Built-in effects loop engages with the boost switch
- True-bypass switching
- Runs on a standard 9V power supply
- Discontinued; part number R800 7017 00
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un North-Star, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription

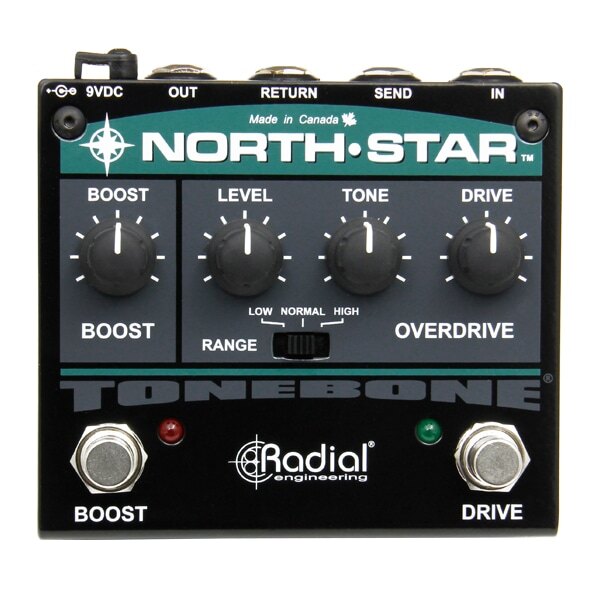

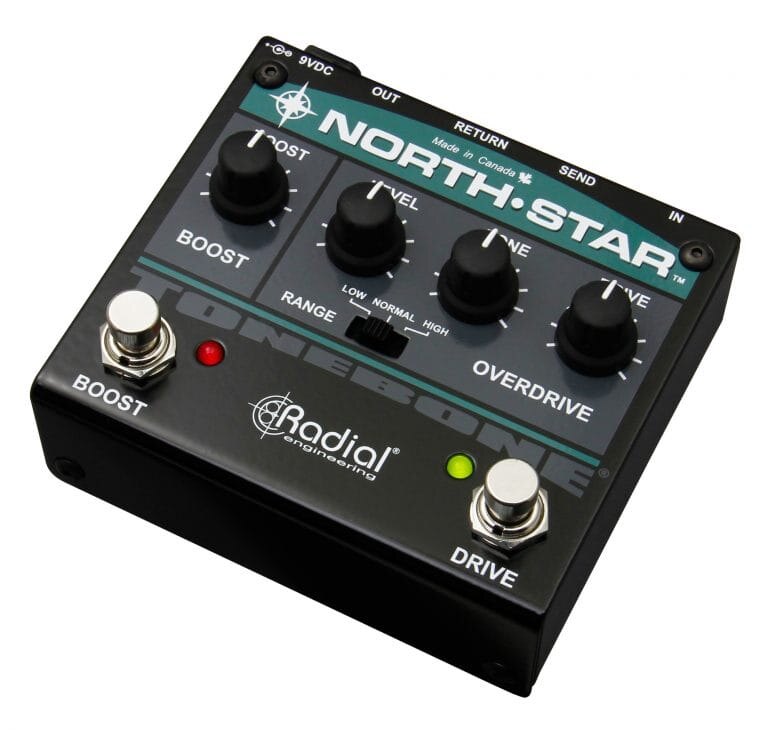

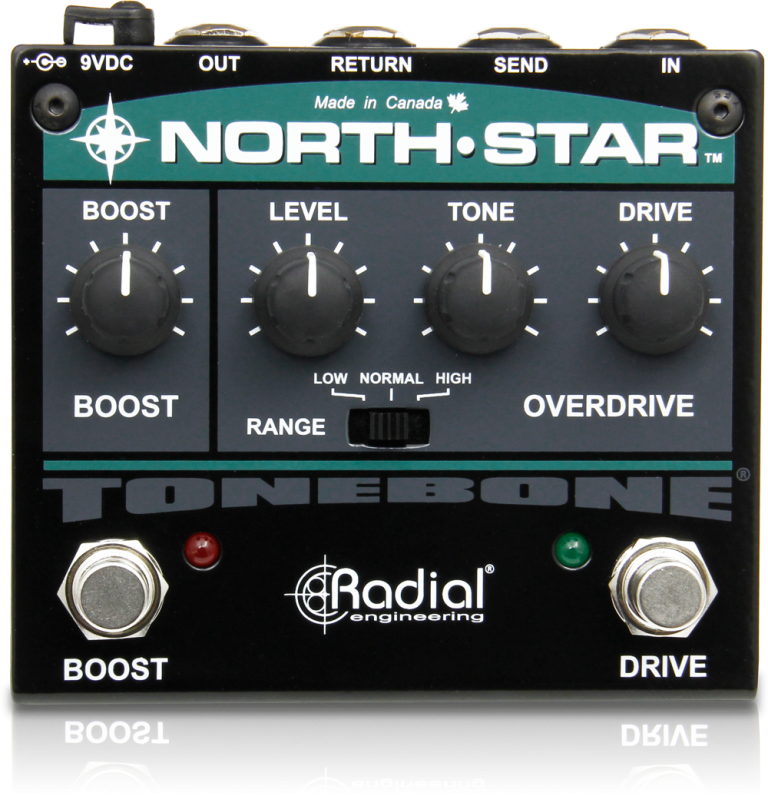

The North-Star is a dual-function, true-bypass pedal with two independent circuits: an overdrive and a class-A booster. Either can be used alone or both together, covering tones from light crunch to singing distortion. The overdrive is designed to keep notes clear and articulate at any drive setting.

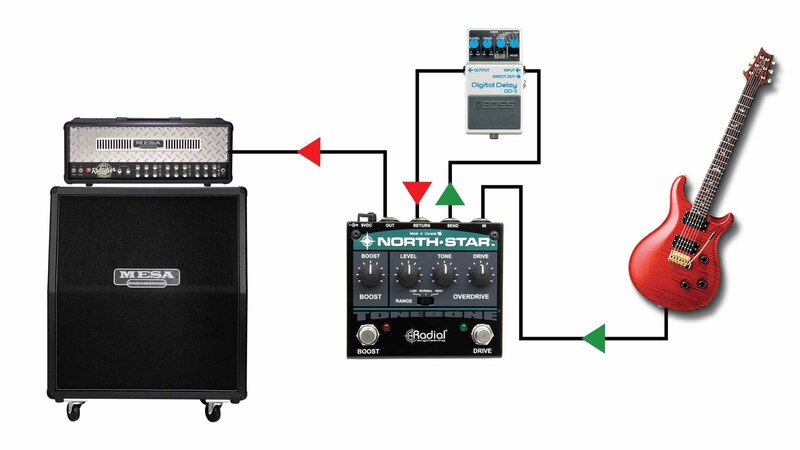

The booster adds up to +24dB of clean gain and can be used to push the front end of a smaller amp until it breaks up naturally. Engaging the boost footswitch also switches on the built-in effects loop, so a delay or other effect connected there comes in together with the boost for solos, using one footswitch press.
The pedal runs from a standard 9V power supply. The maker lists it as discontinued and no longer shipping, with specifications and user information kept available for existing owners. The part number is R800 7017 00.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- North-Star
- Catégorie
- Effets et pédales
Audio
- Type
- Overdrive and power booster
- Overdrive
- Transparent overdrive circuit
- Booster
- Class-A boost circuit
- Maximum boost gain
- Up to +24dB clean gain
- Bypass
- True-bypass
Controls and switching
- Footswitches
- Overdrive and Boost footswitches
- Independent circuits
- Overdrive and boost operate independently or together
- Boost activation
- Automatically engages the effects loop
Connectivity
- Effects loop
- Built-in, activated with the booster
Power
- Power supply
- Standard 9V
General
- Part number
- R800 7017 00
- Form factor
- Compact pedal
- Status
- Discontinued, no longer shipping
