SubMix

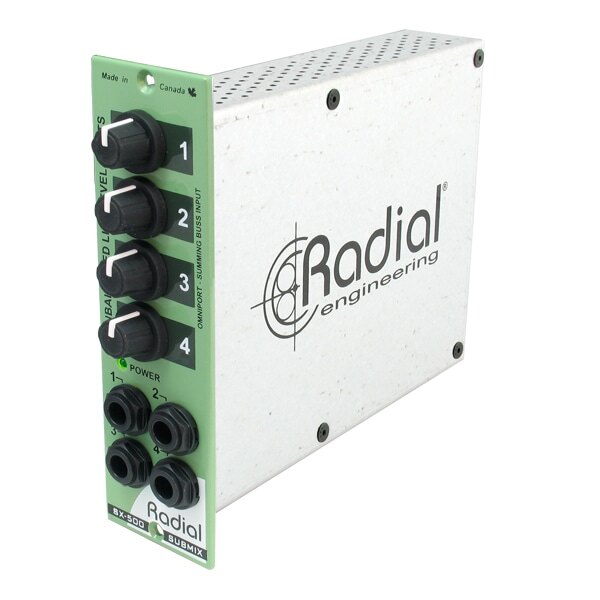

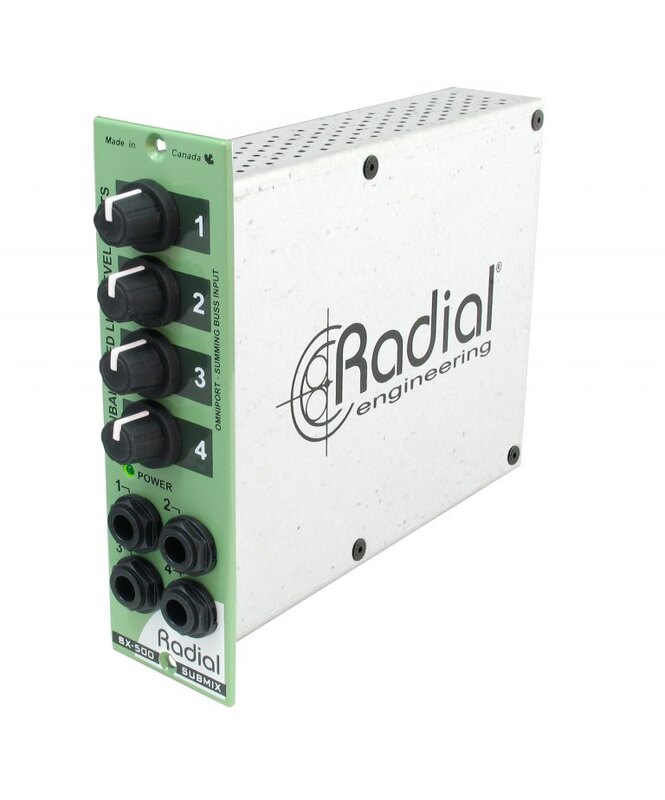

The SubMix is a 4-to-1 line-level mixer module in the 500 series format, with a level control for each input. It is meant for combining keyboards, drum machines, effects and other line-level sources into a studio rack. The model has been discontinued.
- 4x1 line mixer module for 500 series racks
- AccuState circuit for low noise at all levels
- Individual level control for each input
- Works with instruments and line-level devices
- Part number R700 0170 00
- Discontinued
Photos
7Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un SubMix, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The SubMix is a mixer module for 500 series racks that sums four audio sources into a single output. Each input has its own level control, so line-level devices, studio effects and instruments such as keyboards or drum machines can be blended together. It uses the AccuState circuit, which is described as keeping noise low at all levels.

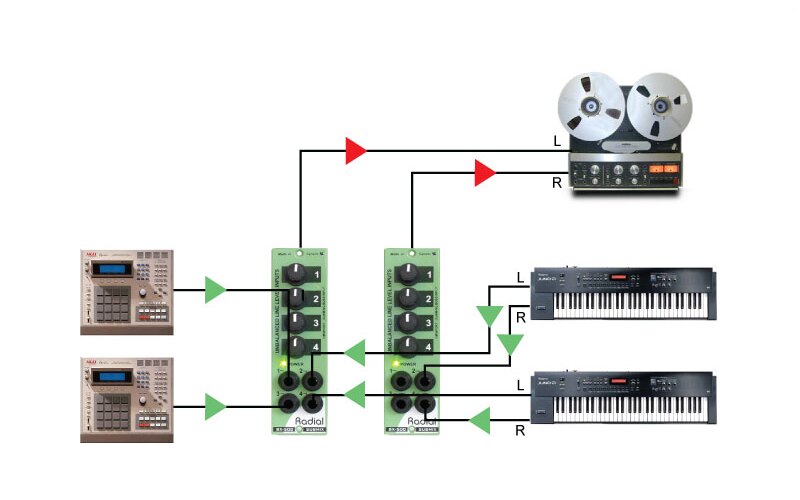

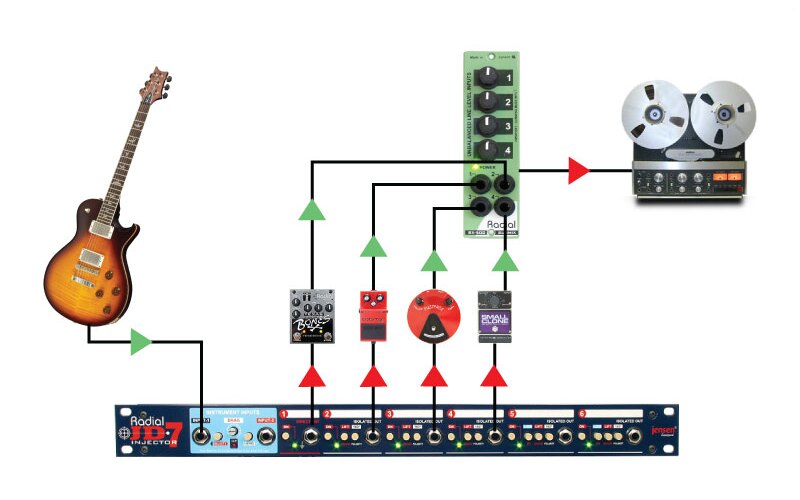

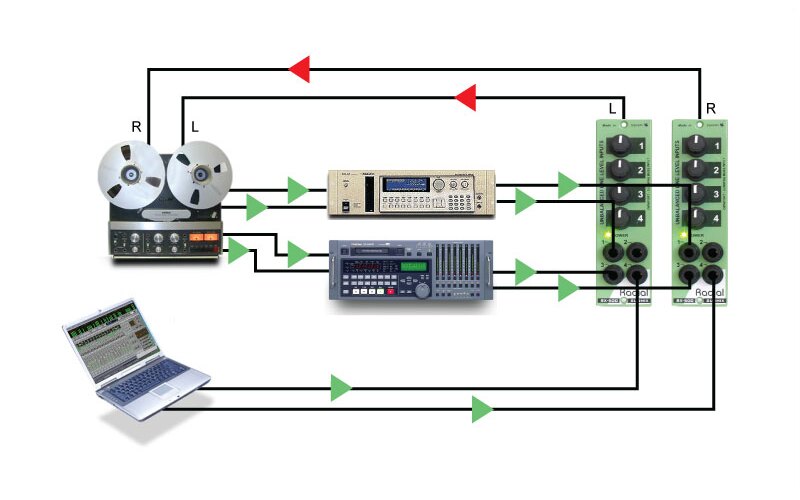

Typical uses include bringing keyboards into a recording system, with a pair of modules handling the left and right sides of a stereo feed. It can also add extra auxiliary inputs for tape returns and stereo feeds, or serve as an effects return when several guitar pedals or line-level devices are combined.
The module is installed in a 500 series rack. A user guide and a data sheet are available for owners. The product is no longer manufactured or shipped.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- SubMix
- Catégorie
- Studio › Consoles de studio
Audio
- Mixer configuration
- 4x1
- Circuit
- AccuState
- Level controls
- Individual input level controls
- Signal type
- Line level devices and instruments
Physical
- Format
- 500 series rack module
- Part number
- R700 0170 00
- Product type
- Line mixer
- Status
- Discontinued, no longer shipping
Software
- Resources
- User guide, smart sheet, high-res photos
Applications
- Keyboards
- Mix keyboards into a recording system; two units for stereo
- Auxiliary inputs
- Tape returns and stereo feeds into a 500 series rack
- Effects return
- Combines multiple pedals or line-level devices
- Recording
- Can be used to record instruments
