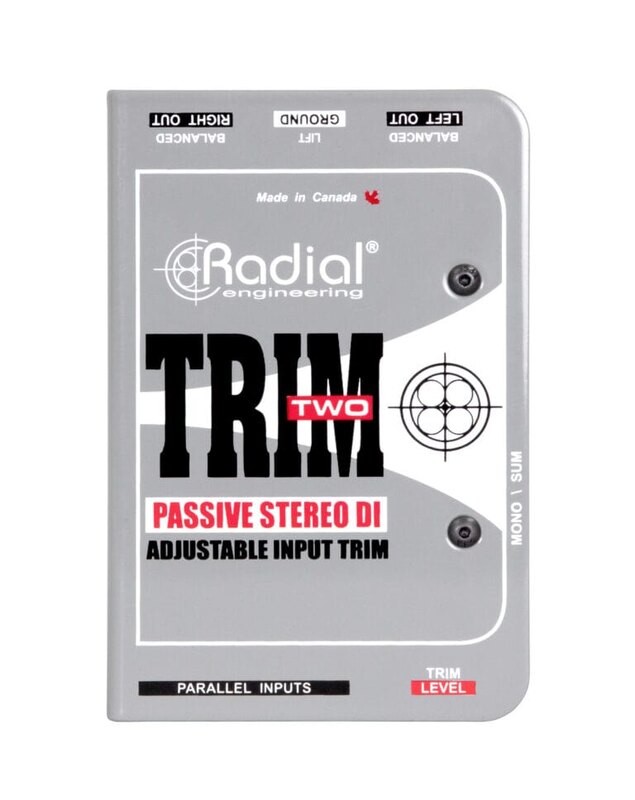

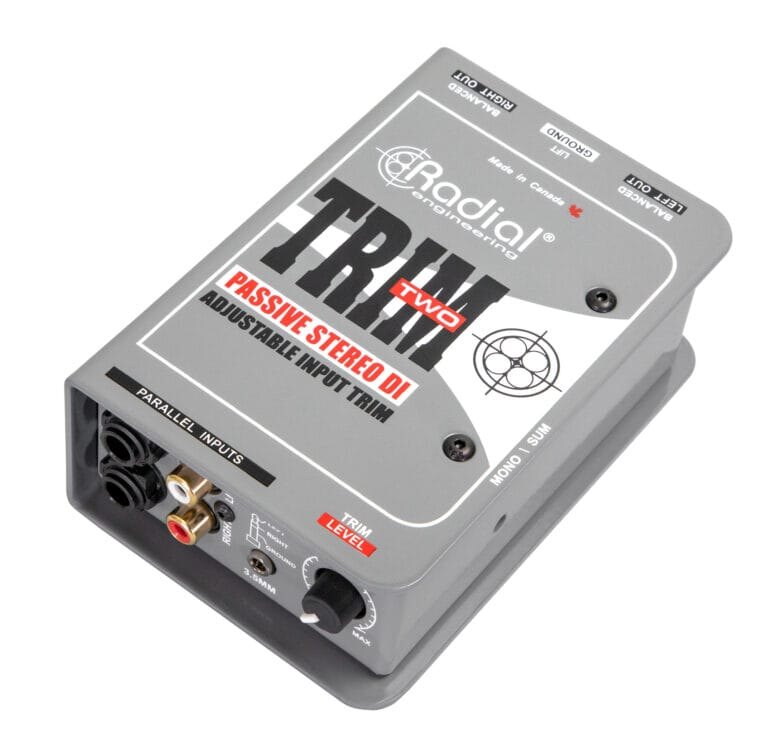

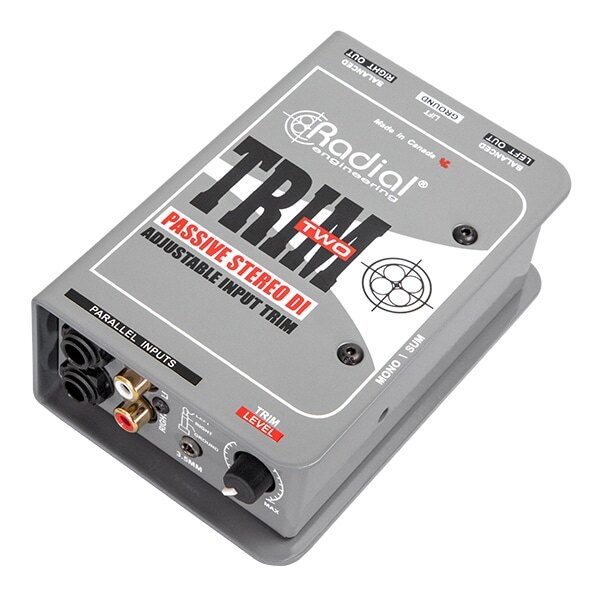

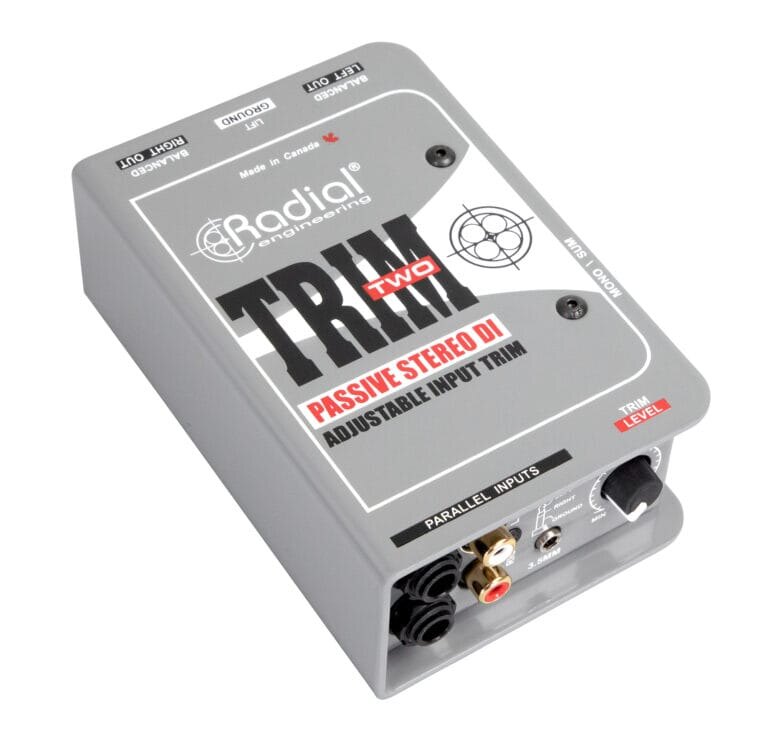

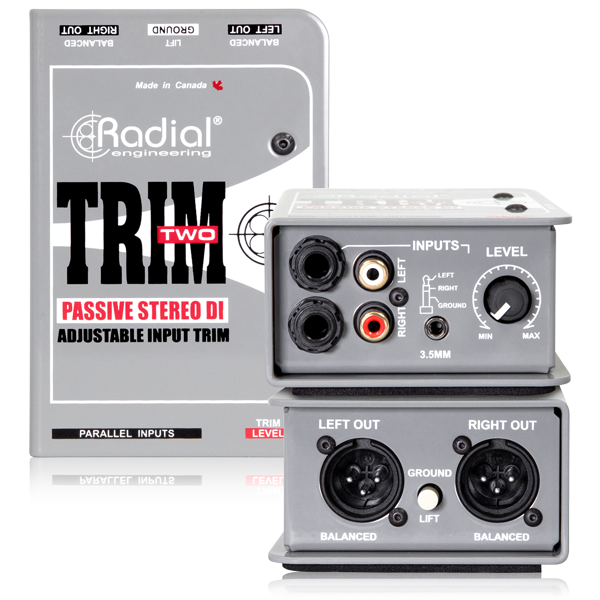

Trim-Two
A passive stereo direct box that converts line-level audio from laptops, tablets, phones, keyboards and DJ gear into balanced signals for a PA or mixer. It adds a front-accessible level control and a mono sum switch, and suits performing musicians and AV users.
- Passive stereo DI with transformer isolation
- Eliminates ground-loop hum and buzz
- Level control for quick on-stage adjustment
- Mono sum switch
- Multiple input connector types incl. 3.5 mm
- No power required
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Trim-Two, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The Trim-Two is a two-channel passive direct box built for consumer-style line-level playback sources. Two transformers isolate and balance the outputs of the connected device, which removes hum and buzz caused by ground loops and allows long cable runs without signal degradation.
A level control lets the user trim the signal quickly during a performance, for example to avoid distortion when feeding from a headphone output. A mono sum switch combines the two channels, either to reduce the number of output channels or to send the same signal to two destinations.
Several input connector types allow laptops, smartphones, tablets, keyboards, drum machines and DJ equipment to be connected, including a 3.5 mm input for headphone outputs. The circuit is entirely passive, so no power supply or battery is needed. Outputs are balanced for connection to a mixer or PA system. Rack and mounting accessories from the maker's range, such as the J-Rak 4, J-Rak 8 and J-Clamp, are listed as compatible options.
Vidéo
Spécifications
- Marque
- Radial Engineering
- Modèle
- Trim-Two
- Catégorie
- Sonorisation live › Autre matériel live

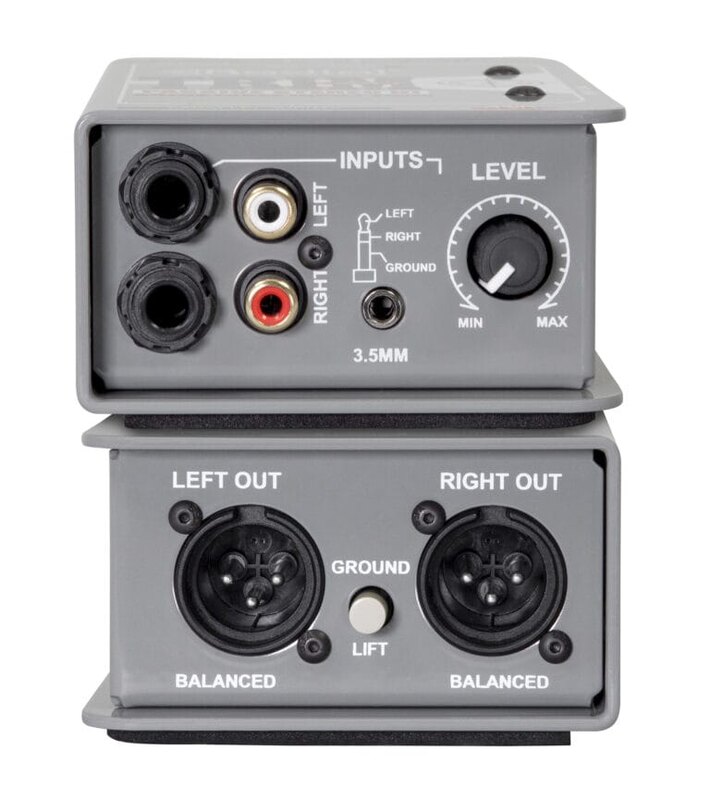

Inputs
- Input type
- Stereo line level, multiple connector types
- Mini jack input
- 3.5 mm
- Compatible sources
- Laptops, smartphones, tablets, keyboards, drum machines, DJ equipment
Outputs
- Output type
- Balanced, transformer isolated
- Channels
- 2 (stereo)
Audio
- Circuit
- Passive
- Isolation
- Two transformers
- Level control
- Variable
- Mono sum switch
- Yes
- Ground loop noise
- Eliminated hum and buzz
Power
- Power
- None required (passive)
Physical
- Type
- Passive stereo direct box
- Part number
- R800 1117 00
- Compatible rack accessories
- J-Rak 4, J-Rak 8, J-Clamp
Software
- Documentation
- User guide, owner's manual, smart sheet
