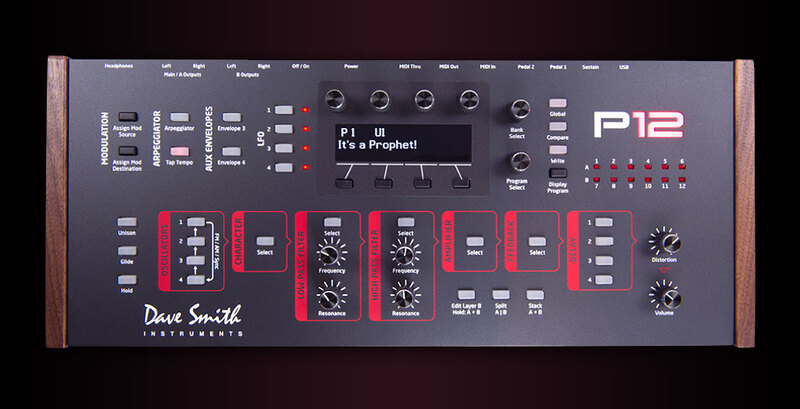

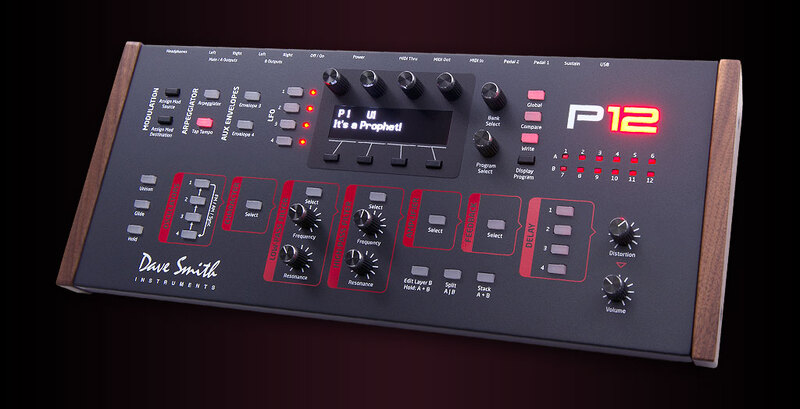

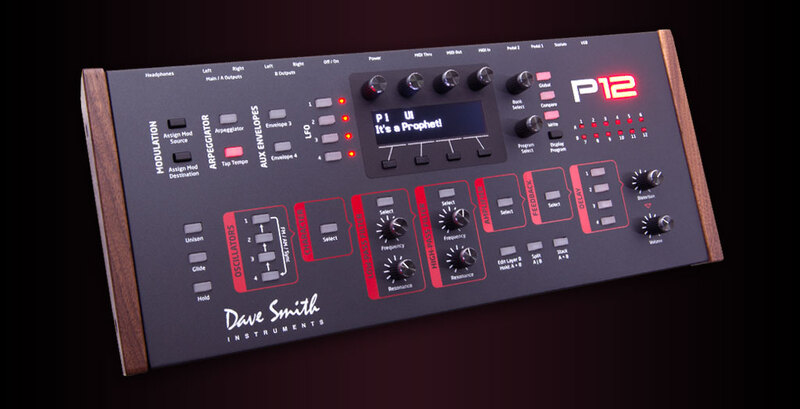

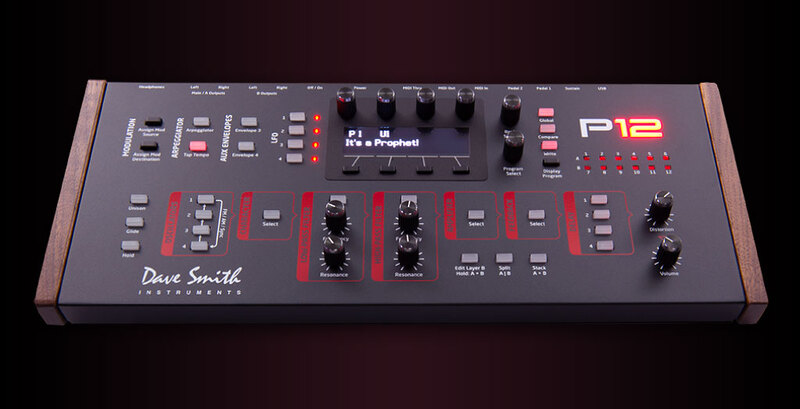

Prophet 12 Desktop
The Prophet 12 Module is a 12-voice hybrid digital/analog polyphonic synthesizer in a desktop and rack-capable steel enclosure, sharing its sound engine with the Prophet 12 Keyboard. It suits players who want a compact, MIDI-controlled polysynth for the studio or stage. It is no longer in production.
- 12-voice hybrid digital/analog polyphonic synth
- 5 DSP oscillators per voice, including a sine sub oscillator
- Curtis 2/4-pole low-pass and 2-pole high-pass analog filters
- 16 x 2 mod matrix, 26 sources, 97 destinations
- 396 user and 396 factory programs
- MIDI In/Out/Thru plus USB MIDI; rack kit optional
Photos
6Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un Prophet 12 Desktop, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The Prophet 12 Module packs the voice architecture of the Prophet 12 Keyboard into a compact desktop unit. Each of its twelve voices has a digital front end with four oscillators plus a sine sub oscillator and a character effects section, followed by an all-analog path with a Curtis resonant low-pass filter, a high-pass filter and a tuned feedback circuit. Oscillators can be cross-modulated with FM and AM, and each has hard sync.
Modulation is handled by four looping Delay + ADSR envelopes, four syncable LFOs with slew and phase offset, a 16 x 2 modulation matrix and a programmable arpeggiator. A four-tap delay with per-tap feedback is included in every voice. Editing uses 12 knobs and 34 buttons, with an OLED display showing every parameter.
The module has a steel enclosure with oiled walnut end panels. It connects over 5-pin MIDI (In, Out, Thru) and USB MIDI, and has stereo outputs for two layers, a headphone output and two expression pedal inputs. An optional rack mount kit, sold separately, allows rack installation.
Vidéo
Spécifications
- Marque
- Sequential
- Modèle
- Prophet 12 Desktop
- Catégorie
- Synthés et claviers › Synthétiseurs
Oscillators
- Oscillators per voice
- Five DSP-based (including one sine wave sub oscillator)
- Classic wave shapes
- Four per oscillator (saw, square, triangle, sine)
- Complex shapes
- Twelve selectable per oscillator
- Noise types
- Three per oscillator: white, pink, violet
- Cross modulation
- Frequency modulation (FM) and amplitude modulation (AM)
- Hard sync
- On each of the four oscillators
Filters and Effects
- Low-pass filter
- Curtis 2- or 4-pole resonant analog per voice (self-oscillates in 4-pole mode)
- High-pass filter
- 2-pole resonant analog per voice
- Character effects
- Five digital effects: Girth, Air, Hack, Decimate, Drive
- Delay
- Four-tap syncable multi delay with feedback and amount per delay per voice
- Distortion
- Independent programmable stereo analog distortion per layer
Modulation
- Envelopes
- Four Delay + ADSR (LPF, VCA, two auxiliary); all can repeat/loop
- LFOs
- Four syncable, with phase offset and slew per LFO
- Modulation matrix
- 16 x 2, 26 mod sources and 97 mod destinations
- Arpeggiator
- Programmable; up, down, up+down, random, assign modes; re-latching
Controls and Memory
- Controls
- 12 knobs and 34 buttons
- Display
- OLED
- Programs
- 396 user and 396 factory
Connectivity
- MIDI
- 1 In, 1 Out, 1 Thru
- USB
- USB port for bidirectional MIDI
- Pedal inputs
- 1 sustain/footswitch, 2 expression pedal
Outputs
- Main output
- Stereo, 2 x 1/4″ phone jack
- Layer B output
- Stereo, 2 x 1/4″ phone jack
- Headphone output
- Stereo 1/4″ phone jack
Power

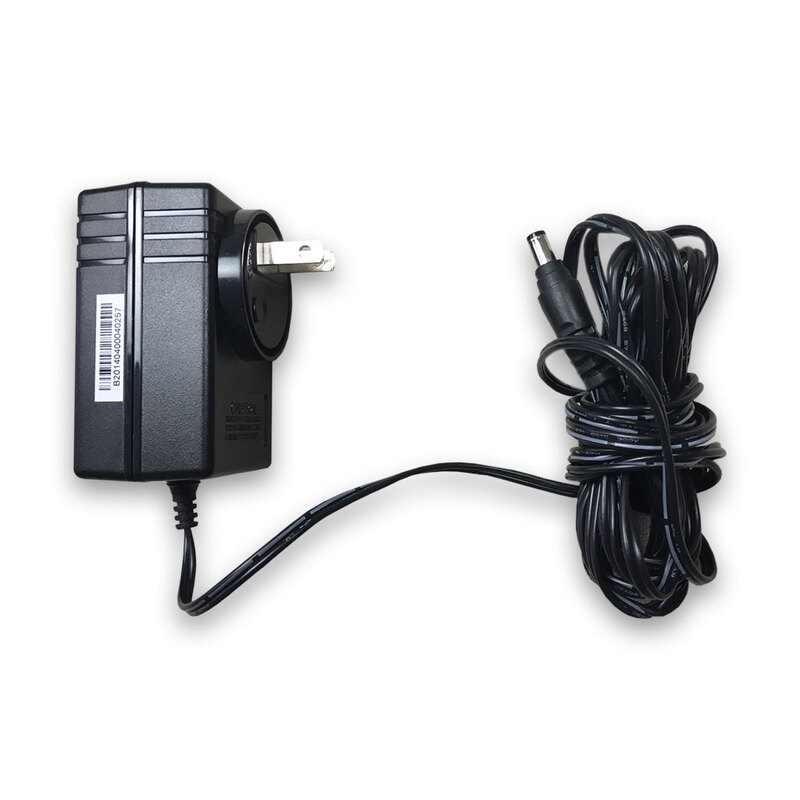

- Power supply
- External, 100-240 V, 50-60 Hz
Physical
- Dimensions
- 16.5″ L x 6.8″ W x 2.85″ H (41.9 x 17.3 x 7.2 cm)
- Weight
- 4 lbs. 14 oz. (2.21 kg)
- Enclosure
- Steel with oiled walnut wood end panels
- Rack mounting
- With optional rack mount kit (sold separately)
