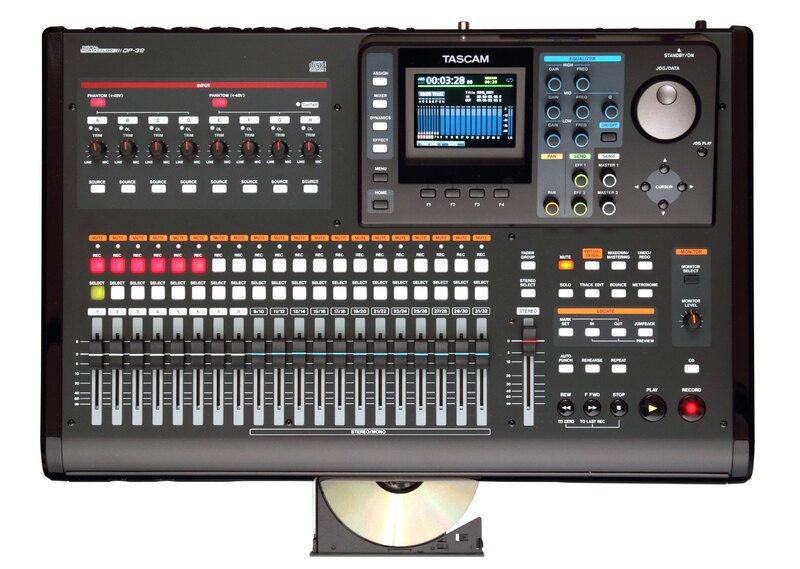

DP-32
The DP-32 is a 32-track digital multitrack recorder with eight analogue inputs that records to SD/SDHC cards. It suits musicians and home-studio users tracking bands or solo projects; the maker lists it as discontinued and replaced by the DP-32SD.
- Records to SD (512MB–2GB) and SDHC (4GB–32GB) cards
- 8 inputs (A–H) with balanced XLR and 6.3mm TRS connectors
- Input H offers a high-impedance guitar setting
- MIDI in/out on DIN 5-pin; USB 2.0 High-Speed mass storage
- Frequency response 20Hz–20kHz (±1dB), S/N 90dB or greater
- Discontinued; replaced by the DP-32SD
Photos
7Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un DP-32, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The DP-32 is a standalone digital multitrack recorder housed in a desktop chassis. It records to SD cards from 512MB to 2GB and SDHC cards from 4GB to 32GB, using FAT16 and FAT32 file systems respectively. Eight inputs (A–H) accept balanced XLR or balanced 6.3mm TRS connections, and input H has a selectable high-impedance guitar setting.
On the output side there are unbalanced RCA stereo outs, unbalanced effect sends, balanced TRS monitor outs and a 6.3mm headphone output rated at 70mW + 70mW into 32 ohms. Frequency response is 20Hz to 20kHz (±1dB), with signal-to-noise of 90dB or better and THD of 0.01% or less.
For connectivity the unit has DIN 5-pin MIDI in and out, a USB Mini-B port running as a USB 2.0 High-Speed mass-storage device, and a 2.5mm remote jack. It runs from a dedicated AC adapter. The latest firmware listed is V1.13, which fixed a problem loading songs created on a DP-32SD running V1.09 or later.
Vidéo
Spécifications
- Marque
- Tascam
- Modèle
- DP-32
- Catégorie
- Studio › Enregistreurs
Recording
- Recording media
- SD (512MB – 2GB) / SDHC card (4GB – 32GB)
- File system
- SD card: FAT16 / SDHC card: FAT32
Inputs
- Inputs A–H, XLR connector
- XLR-3-31 (1: GND, 2: HOT, 3: COLD), balanced
- XLR input impedance
- 2.4k ohms
- XLR nominal input level
- -14dBu
- XLR maximum input level
- +2dBu
- Inputs A–H, TRS connector
- 6.3mm (1/4") TRS phone jack, balanced
- TRS input impedance
- 22k ohms or more / 1M ohms (when INPUT H, GUITAR selected)
- TRS nominal input level
- +4dBu
- TRS maximum input level
- +20dBu
Outputs
- Stereo out connector
- RCA pin jack, unbalanced
- Stereo out nominal / maximum level
- -10dBV / +6dBV
- Effect sends connector
- 6.3mm (1/4") TS phone jack, unbalanced
- Effect sends nominal / maximum level
- -10dBV / +6dBV
- Monitor out connector
- 6.3mm (1/4") TRS phone jack, balanced
- Monitor out nominal / maximum level
- -2dBu / +14dBu
- Phones connector
- 6.3mm (1/4") TRS phone jack
- Phones maximum output
- 70mW + 70mW (THD+N 0.1% or less, 32 ohms loaded)
Connectivity
- MIDI in / out
- DIN 5 pin, standard MIDI format
- USB
- USB Mini-B 4-pin, USB 2.0 High-Speed mass-storage class
- Remote
- 2.5mm TRS jack
Audio
- Frequency response
- 20Hz to 20kHz (+/-1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
- S/N ratio
- 90dB or greater
- THD
- 0.01% or less
Power
- Power supply
- Dedicated AC adapter (TASCAM PS-1225L, included)
- Power consumption
- 12W (when phantom power supplying)
Physical
- Dimensions (W×H×D)
- 514 × 104 × 340mm / 20.2" × 4.1" × 13.4"
- Weight
- 6.2kg / 13.67 lb
- Operating temperature
- 5 to 35˚C / 41 to 95˚F
Software
- Latest firmware
- V1.13
In the box
- Accessories
- AC adapter, 2GB SD card, USB cable, warranty card, owner's manual
