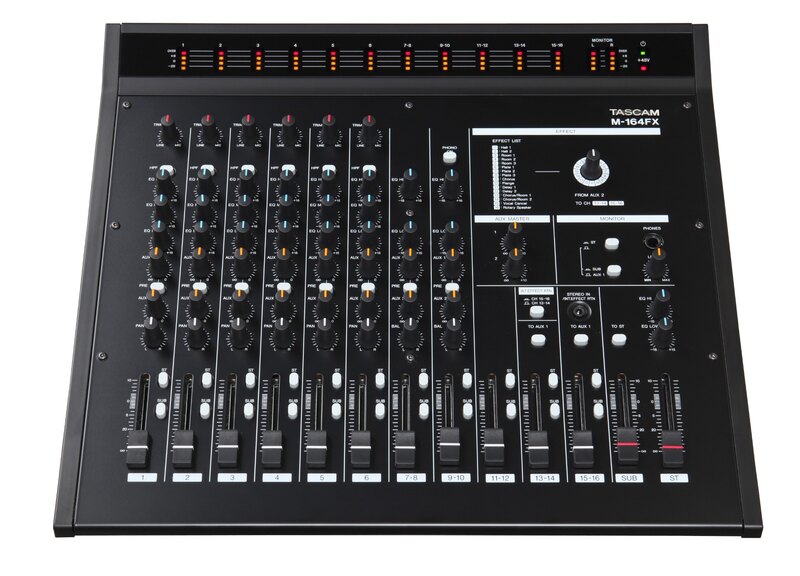

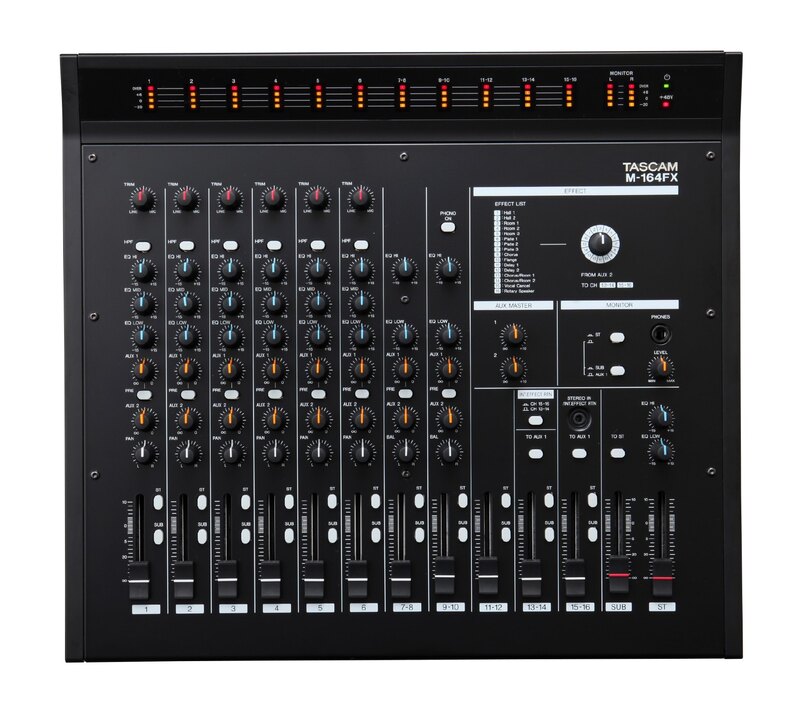

M-164FX
A 16-channel analog mixer with a built-in stereo digital effects processor, aimed at live bands, home recording and installations. It has six XLR mic inputs with phantom power and five stereo line inputs. The model has been discontinued.
- 16 inputs: 6 XLR mic and 5 stereo line
- Phantom power and hipass filter on mic inputs
- 3-band EQ on mic channels 1-6
- RIAA phono preamp on channels 9-10 (RCA)
- Stereo effects processor with 16 presets
- Discontinued model
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un M-164FX, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The M-164FX is a compact mixer that combines six microphone channels with five stereo line inputs, giving 16 inputs in total. Mic channels have phantom power, a high-pass filter and 3-band EQ. Line channels 7-10 and the main output have 2-band EQ, and channels 9-10 offer RCA inputs with an RIAA phono preamp for turntables.
The mixer has main and sub output busses, a pair of aux sends for monitors or effects, and separate stereo and mono outputs for main and aux. A built-in meter bridge shows levels. The stereo effects processor provides 16 presets covering reverb, delay, chorus and other effects.
Outputs are on 1/4" connectors. Unlike the M-164UF in the same series, the M-164FX has no USB audio interface, so it is used as a standalone mixer and connected to recorders or interfaces through its analog outputs.
Spécifications
- Marque
- Tascam
- Modèle
- M-164FX
- Catégorie
- Sonorisation live › Tables de mixage live
Inputs
- Total inputs
- 16
- XLR microphone inputs
- 6 with phantom power
- Stereo line inputs
- 5
- Phono preamp
- RIAA on channels 9-10 (RCA)
- Hipass filter
- On mic inputs
Outputs
- Output busses
- Main and Sub (1/4" outputs)
- Main outputs
- Separate stereo and mono (1/4")
- Aux outputs
- Separate stereo and mono (1/4")
- Aux sends
- 2 (1/4" outputs)
Audio
- Mic channel EQ
- 3-band, channels 1-6
- Line channel EQ
- 2-band, channels 7-10
- Main output EQ
- 2-band
- Effects processor
- Stereo, digital
- Effects presets
- 16 (reverb, delay, chorus and others)
Physical
- Metering
- Built-in meter bridge
- Mixer type
- 16-channel mixer with digital effects
Software
- USB audio interface
- Not included (available on M-164UF)
- Owner's manual
- M-164 Owner's Manual, 2009-05-19
