UH-7000
Half-rack USB 2.0 audio interface and standalone mic preamp/AD-DA converter with two XLR mic inputs, two TRS line inputs and AES/EBU or S/PDIF digital I/O. It has 4-in/4-out streaming and a DSP mixer, and suits home and project studios that want low-noise recording at up to 24-bit/192kHz.
- 4-in/4-out USB 2.0 interface, also usable standalone as preamp/converter
- HDIA mic preamps: -128dBu EIN, 117dB S/N, THD 0.0009% or less
- Burr-Brown PCM4220 A/D and PCM1795 D/A, up to 24-bit/192kHz
- DSP mixer with compressor, de-esser, exciter, EQ and reverb
- XLR AES/EBU and S/PDIF digital input and output
- Half-rack aluminum body, 2.2 kg; listed as discontinued
Photos
7Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un UH-7000, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The UH-7000 is a 4-in/4-out USB audio interface that can also work without a computer as a mic preamp and AD/DA converter. Its HDIA mic preamps are rated at -128dBu EIN, with a 117dB signal-to-noise ratio and 0.0009% or less distortion measured from mic input to the converter. Conversion uses a Burr-Brown PCM4220 for A/D and a PCM1795 for D/A, at sample rates up to 192kHz and 24-bit resolution.

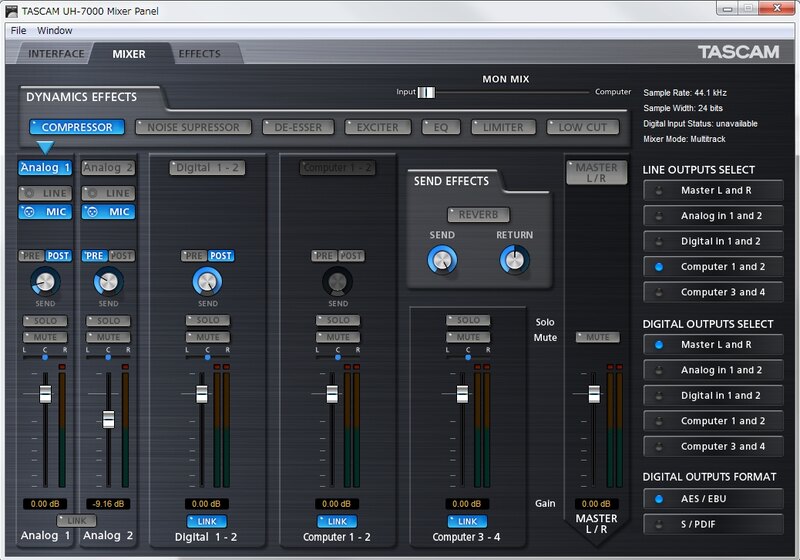

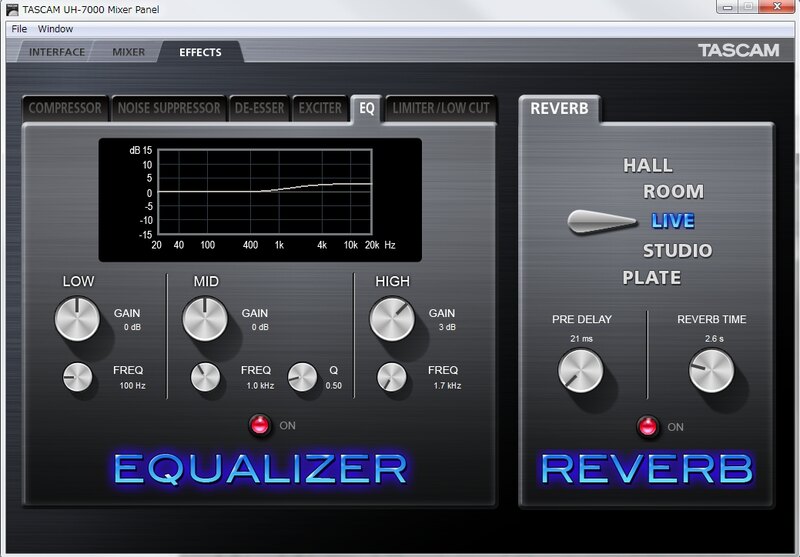

A built-in DSP mixer provides low-latency monitoring and can switch between multitrack and stereo-mix modes. Recording and monitoring levels are set independently, and line or digital outputs can be chosen from the mixer. DSP effects include a compressor, noise suppressor, de-esser, exciter, EQ and limiter/low cut, which can be applied to inputs, outputs or the master. A send reverb offers hall, room, live, studio and plate types. The link line function allows volume control of powered monitors.

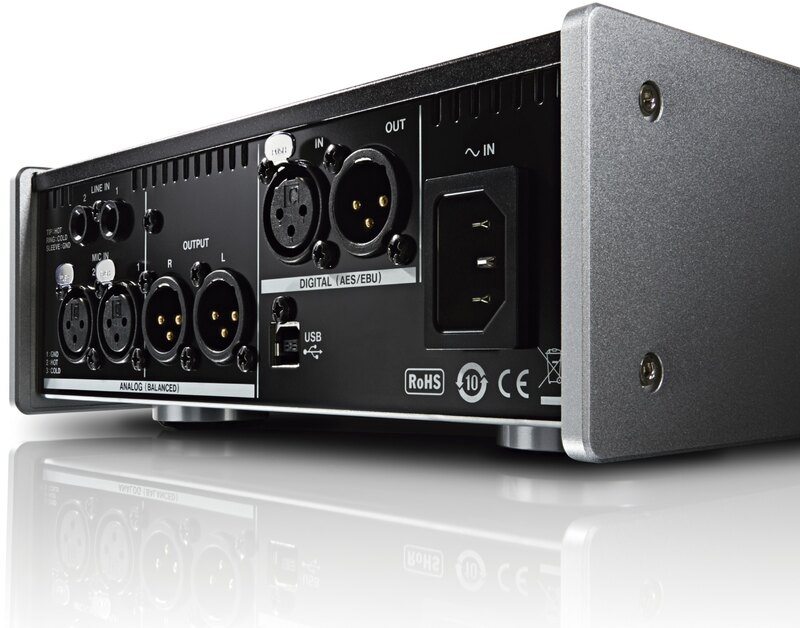

On the front panel are large input level knobs, two 20-segment LED meters, +48V phantom power and a 1/4" headphone output. XLR connectors carry analog line outputs and digital I/O in AES3/AES-EBU or S/PDIF format. The unit connects to Mac and Windows computers over USB 2.0 and is housed in an aluminum body. It is listed as discontinued.
Vidéo
Spécifications
- Marque
- Tascam
- Modèle
- UH-7000
- Catégorie
- Studio › Interfaces audio
Inputs
- Mic inputs
- 2 × XLR-3-31, balanced
- Mic input impedance
- 2.2kohms
- Mic input level range
- -60dBu to +2dBu
- Line inputs
- 2 × 6.3mm (1/4") TRS jack, balanced
- Line input impedance
- 15kohms
- Line input level range
- -38dBu to +26.5dBu
- Digital input
- XLR-3-31, IEC60958-3 (S/PDIF), IEC60958-4 (AES/EBU)
Outputs
- Line outputs
- 2 × XLR-3-32, balanced
- Line output impedance
- 100ohms
- Maximum output level
- +24dBu
- Digital output
- XLR-3-32, IEC60958-3 (S/PDIF), IEC60958-4 (AES/EBU)
- Headphone output
- 6.3mm (1/4") stereo phone jack, 45mW+45mW or more (THD+N 1% or less, 32ohms)
Audio
- Sampling frequencies
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Quantization
- 24bit
- ADC / DAC dynamic range
- 123dB (A-weighted) each
- Frequency response
- 20Hz to 80kHz +0.005dB/-0.16dB (mic preamp)
- THD
- 0.0009% or less (MIC to AD)
- S/N ratio
- 117dB (MIC to AD)
- EIN
- -128dBu
Connectivity
- USB
- USB B type 4-pin, USB 2.0 High Speed (480 Mbps) / Full Speed (12 Mbps)
- Audio drivers
- ASIO2.0, WDM (MME) on Windows; Core Audio on Mac
- Computer requirements
- Dual core 2 GHz or faster, 2 GB RAM or more, USB 2.0 port
Power
- Power supply
- AC100-240V, 50/60Hz
- Power consumption
- 15W
Physical
- Dimensions (W×H×D)
- 214 × 81.2 × 233mm / 8.4 × 3.2 × 9.2 inch
- Weight
- 2.2 kg / 4.85 lb
- Operating temperature
- 5˚C to 35˚C
