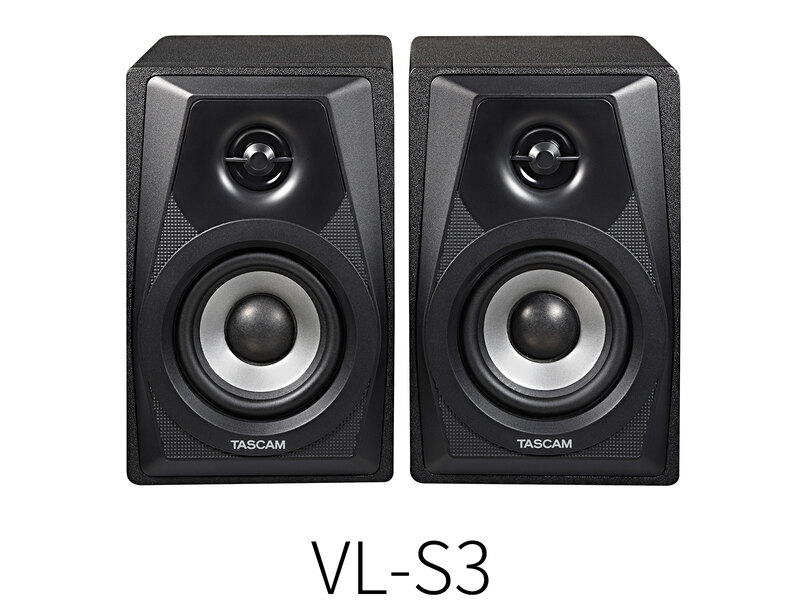

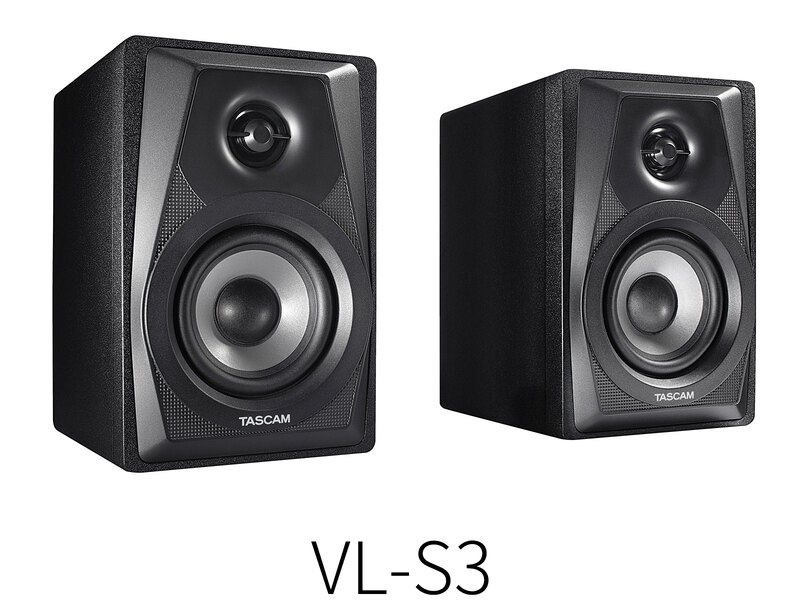

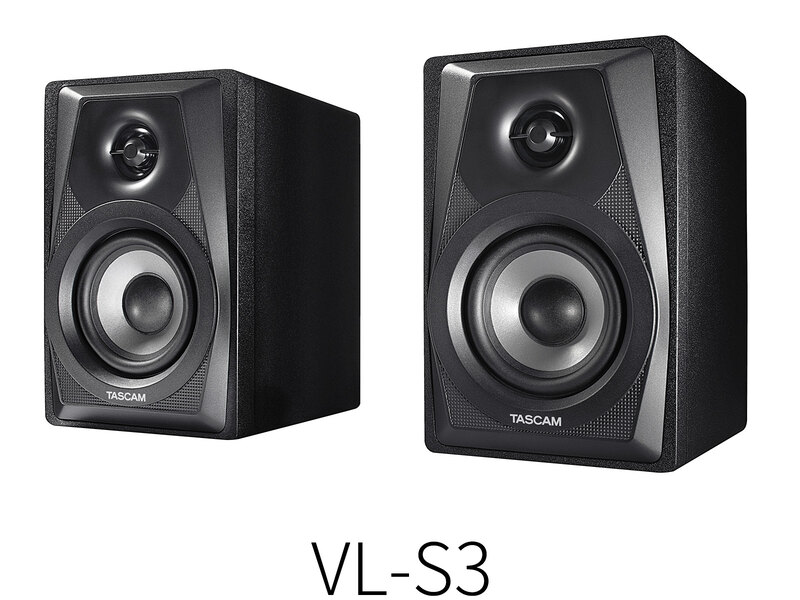

VL-S3
The VL-S3 is a compact 2-way powered desktop monitor pair with a 3-inch woofer and 0.5-inch tweeter, covering 80 Hz–22 kHz. It suits small desks and near-field listening; the VL-S3BT variant adds Bluetooth. Both models are discontinued.
- 2-way powered desktop monitors, 3" woofer and 0.5" tweeter
- 14W + 14W amplifier in the left speaker
- Frequency response 80Hz–22kHz, 8kHz crossover
- RCA stereo and 3.5mm stereo mini inputs

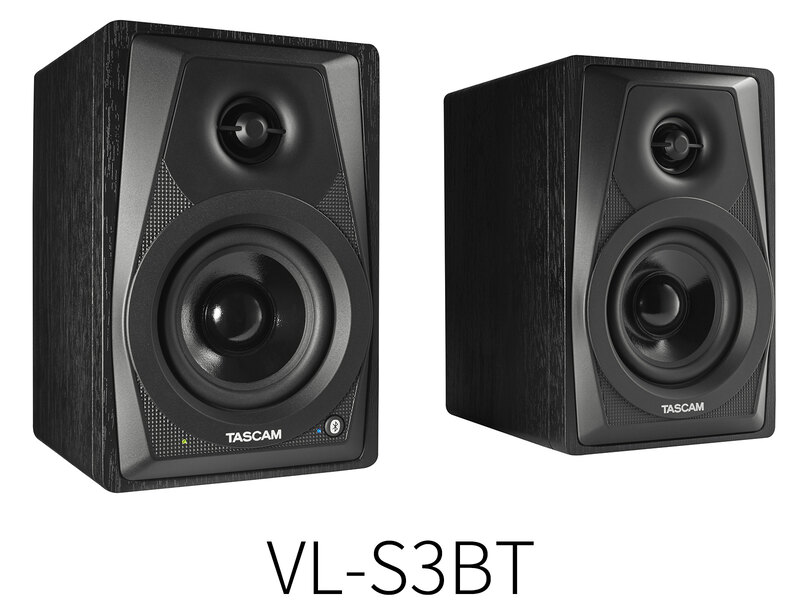

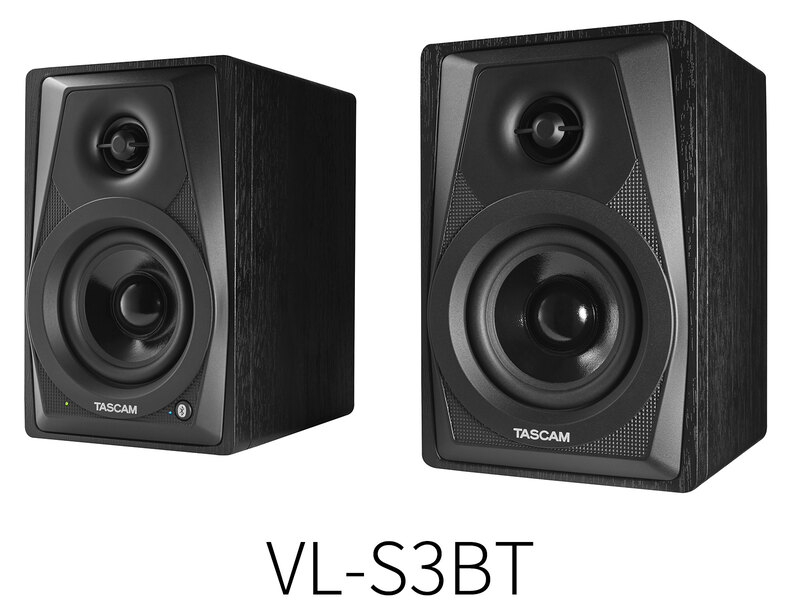

- VL-S3BT adds Bluetooth 4.0 with SBC, AAC, aptX
- Dedicated AC adapter PS-P1524E included
Photos
8Annonces
Pas encore d’annonce pour ce modèle
Quand quelqu’un vendra un VL-S3, les annonces et l’historique des ventes s’afficheront ici.
Vendre le mêmeDescription
The VL-S3 is a pair of small powered speakers built around a 3-inch woofer and a 0.5-inch tweeter in a bass reflex enclosure. The left speaker holds the power amplifier, which delivers 14W + 14W, and the right speaker is a passive unit linked by a speaker cable. The crossover is set at 8 kHz, above the vocal range.
The front panel offers a volume control, a power switch and a power LED. Sources connect through stereo RCA jacks or a 3.5 mm stereo mini jack, and the mini jack is the preferred input. The VL-S3BT adds Bluetooth 4.0 (Class 2) with the A2DP profile, SBC, AAC and aptX codecs, and SCMS-T content protection.
Power comes from a dedicated AC adapter (TASCAM PS-P1524E) that accepts 100–240 V. The speakers are RoHS certified. The package also includes a speaker cable and an RCA to 6.3 mm TS jack adapter cable. Both models are listed as discontinued.
Vidéo
Spécifications
- Marque
- Tascam
- Modèle
- VL-S3
- Catégorie
- Studio › Enceintes de monitoring
Audio
- Speaker type
- 2-way powered, bass reflex
- Woofer
- 3" (76.2mm)
- Tweeter
- 0.5" (12.7mm)
- Maximum effective output (distortion 10%)
- 14W+14W
- Frequency response
- 80Hz - 22kHz
- Crossover frequency
- 8kHz
- Sensitivity
- -4.8dBV (580mV) 14W+14W
Inputs
- External input jacks
- RCA pin-jacks (stereo), 3.5mm (1/8") stereo mini jack
- Input impedance
- 50k ohms
Connectivity
- Bluetooth (VL-S3BT)
- Version 4.0, Class 2
- Supported profile (VL-S3BT)
- A2DP
- A2DP codec (VL-S3BT)
- SBC, AAC, aptX
- A2DP contents management (VL-S3BT)
- SCMS-T
Power
- Power supply
- Dedicated AC adapter (PS-P1524E)
- Input voltage
- AC100-240V, 50/60Hz
- Output voltage
- DC15V
- Output current
- 2.4A
- Power consumption
- 60W
Physical
- Dimensions (W × H × D)
- 110 × 170 × 138 mm / 4.3 × 6.7 × 5.4 inches (not including projections)
- Weight, active unit (left)
- 1.1kg / 2.4lb
- Weight, passive unit (right)
- 1.0kg / 2.2lb
In the box
- Included accessories
- AC adapter (TASCAM PS-P1524E), speaker cable, RCA-6.3mm (1/4") standard TS jack adapter cable, Owner's Manual (including warranty)
